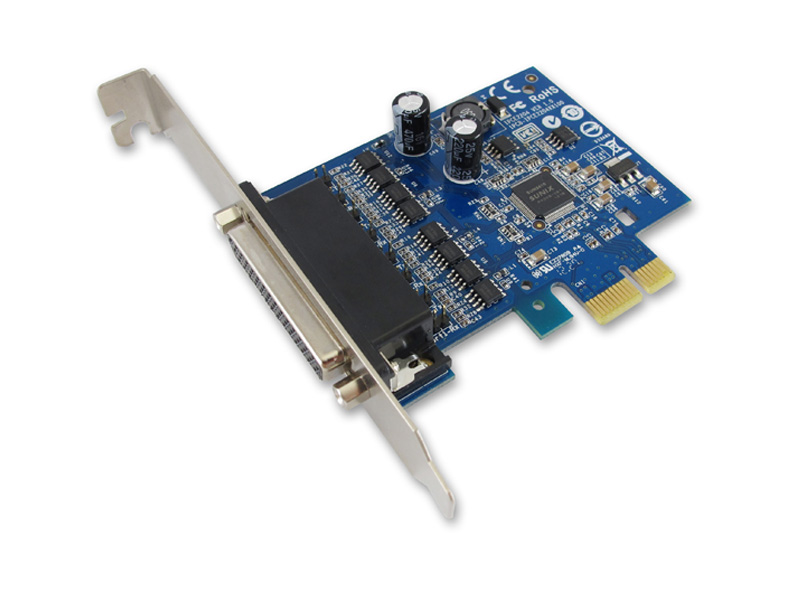

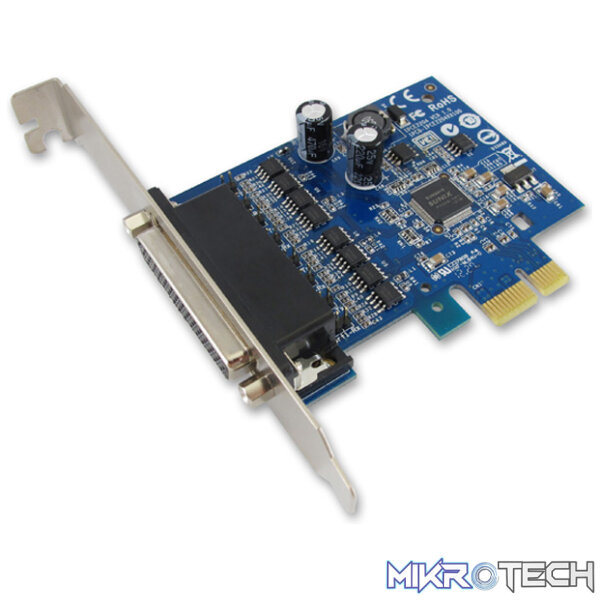

Sunix IPC-E2204S Industrial 4 ports RS-422/485 with Surge PCI-Express Serial Card
R1,889.99 incl. VAT
Only 4 left in stock
Overview:
SUNIX IPC-E2204S, Industrial 4 ports RS-422/485 with Surge PCI-Express Serial Card, allows users to expand four RS-422/485 ports on PC-based system. Each serial port achieves data rates up to 921.6 Kbps and utilizes 16C950 UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O. With SUNIX patented Auto-Switching RS-422/485 and RS-485 AHDC™ technology, user can easily manage different serial interfaces selection and RS-485 signal direction control. SUNIX IPC-E2204S board is provided with 2KV IEC6100-4-5 Level 3 Surge Suppressor and 15KV IEC61000-4-2 ESD Discharge Transceiver. Besides, board supports a wide variety of operating systems, including Windows, Linux, DOS, and UNIX. It is the best serial communicating solution for industrial and harsh environment applications.
Features:
- Expands 4 independent RS-422/485 serial ports with communication speeds up to 921.6Kbps.
- With high reliable SUNIX SUN2212 native PCI Express 16C950 UART controller.
- Designed to meet PCI Express Base Specification Revision 2.0.
- RS-422 and RS-485 auto detect and switching technology – jumper and software free.
- AHDC/CS™ technology for collision free communication.
- On-chip hardware auto flow control to guarantee no data loss.
- Ultra low power consumption design for Green Environment.
- 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
- 2KV surge protection for all serial signals meets IEC-61000-4-5 Level 3 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, VCCI, C-Tick, BSMI, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS OS.
| Interface | RS-422 / 485 |
|---|---|
| Controller | SUNIX SUN2212 (16C950 UART Compatible) |
| BUS | PCI Express 2.0 x 1 (single lan) |
| No. of Port | 4-port |
| IRQ & IO | Assigned by System |
| Signal | RS-422: TxD+, TxD-, RxD+, RxD-, GND 4-wire RS-485: TxD+, TxD-, RxD+, RxD-, GND 2-wire RS-485: Data+, Data-, GND |
| Baud rate | 50bps ~921.6Kbps |
| Stop bit | 1, 1.5, 2 |
| Parity | even, odd, none, mark, space |
| Flow Control | Xon / Xoff (software) |
| FIFO | 128byte Hardware |
| Protection | ±15KV ESD IEC6000-4-2 Air Discharge ±8KV ESD IEC61000-4-2 Contact Discharge ±4KV ESD IEC61000-4-2 Level 2 Line-to-Linee 2KV Surge IEC61000-4-5 Level 3 Surge Immunity Test |
| PCB Connector | DB44 Female |
| Windows Client | XP / Vista / 7 / 8 / 8.1 (X86 / X64) |
| Windows Server | 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86 / X64) |
| Windows Embedded | Windows CE 4.2 / 5.0 / 6.0 XP Embedded / POSReady 2009 / POSReady 7 / Embedded System |
| Linux | Linux 2.4.x / 2.6.x / 3.x |
| DOS | DOS |
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS / NZS, RoHS |
| Operation Temperature | 0 to 70°C (32 to 158°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| PCB Dimension | 96 x 68 mm |
| Bracket | Standard 121 mm |
| Bracket Space | 1 |
