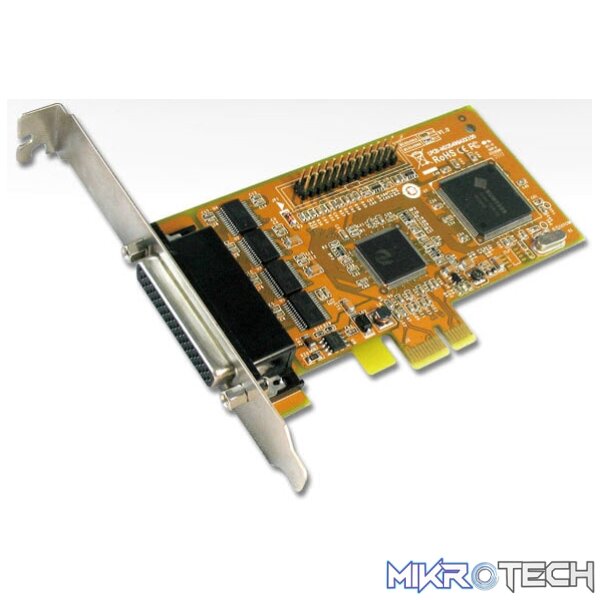

Sunix Mio5499A 4 port serial + 1 port parallel PCI-express
R1,119.99 incl. VAT
In stock
Overview:
The majority of today´s motherboards are not equipped with any RS-232 or parallel port. With SUNIX MIO5499A Multi I/O board, users can expand four RS-232 and one IEEE1284 parallel ports to their system, allowing them to use serial and parallel devices further. SUNIX MIO5499A is compatible with PCI Express x1, x2, x4, x8 and x16 lane and PCI/PCI-x Bus, allowing the board to be installed in virtually any PC system. Furthermore, SUNIX MIO5499A Multi-IO card supports majority of the OS on the market. We provide driver support for Microsoft Windows 32/64-bit platform, Linux, making it the best and most economical solution for commercial and industrial applications.
Features:
- Expands 4-port RS-232 COM and 1-port IEEE1284 LPT on system.
- Designed to meet PCI Express Base Specification Revision 1.1.
- High reliability SUNIX SUN1999 16C950 compatible Multi-IO controller on-board.
- Expands four RS-232 serial port with communication speed up to 115.2Kbps.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ±2KV ESD protection for all serial signals.
- Support IEEE 1284-1994 parallel port standard
- ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
- SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port)
- Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
- Plug-n-Play, I/O address and IRQ assigned by system.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
| Product Description | 4-port RS-232 & 1-port Parallel PCI Express Multi-I/O Board |
|---|---|
| Controller | SUNIX SUN1999 (16C950 UART Compatible) |
| Bus | PCI Express one lane (x1) |
| IRQ & IO | Assigned by System |
| Baud rate | 50 bps to 115.2 Kbps |
| Data bit | 5, 6, 7, 8 |
| Stop bit | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection | ±2KV ESD protection for each signal Human Body Model (HBM) |
| Interface | IEEE1284 |
| No. of Port | 1-port |
| Signal | SPP/ECP/EPP/BPP |
| Speed | Maximum 1.8MBps |
| PCB connector | 13×2 Pin Header |
| Cable Connector | DB25 Female |
| Microsoft Client | Windows XP/Vista/7 (X86/X64) |
| Microsoft Server | Windows 2000/2003/2008 (X86/X64) |
| Microsoft Embedded | Windows XP Embedded/POS Ready 2009/Embedded System 2009/Embedded Standard 7 |
| Linux | Linux 2.4.x / 2.6.x |
| DOS | DOS |
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS |
| Software | Microsoft WHQL Windows Microsoft Client: XP/Vista/7 (X86/X64) Microsoft Server: 2000/2003/2008 (X86/X64) |
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| PCB Dimension | 116 x 69 mm |
| Bracket | Standard 121 mm |
| Bracket Space | 2 |
