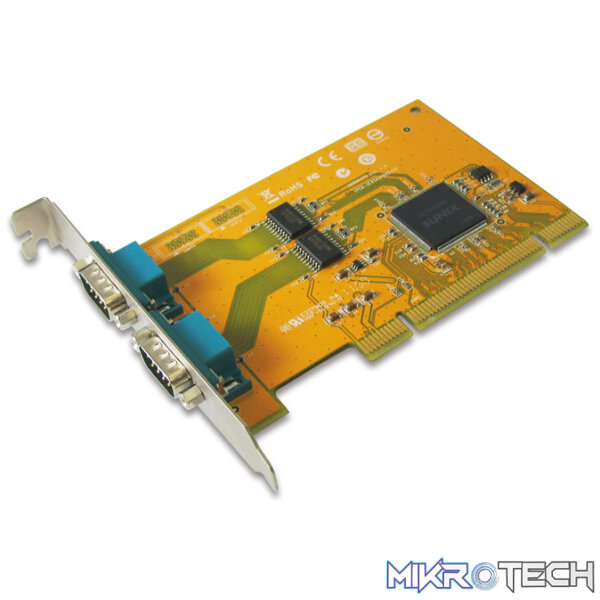

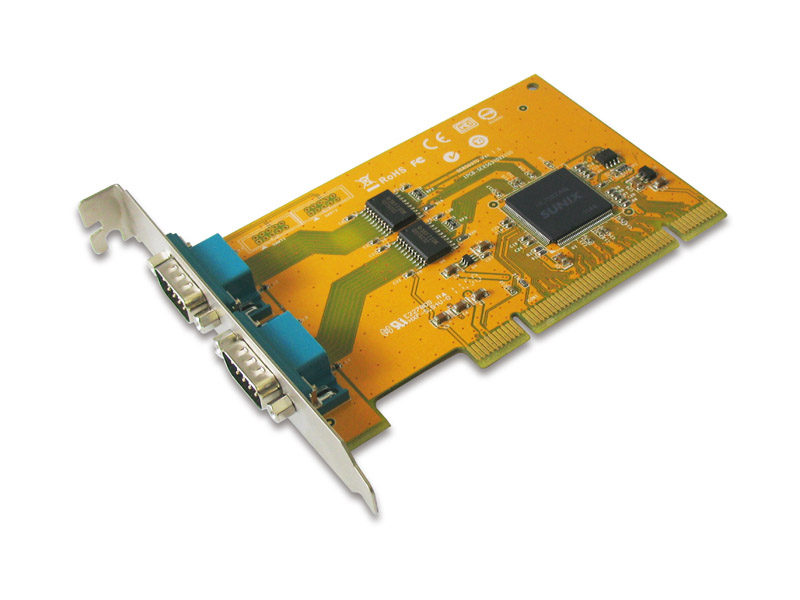

Sunix 5037D 2-port RS-232 Universal PCI Serial Remap Board
R839.99 incl. VAT
Only 3 left in stock
Overview:
SUNIX SER5037D, Universal PCI serial communication board, allows users to add or expand dual RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure. SUNIX SER5037D card has 32-bytes onboard FIFO buffer and compatible with 16C650 UART specification. Besides users can remap to legacy ISA address 2E8, 3E8, 2F8, 3F8 address under DOS and Win9x/NT O.S. SUNIX GoldenIO card series is designed with SUNIX UART controller, UL7512EQ and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.
Features:
- Expands 2 independent RS-232 serial port with communication speeds up to 115.2Kbps.
- High speed SUNIX UL7512EQ 16C650 compatible UART controller on-board.
- Compliance with PCI 33MHz Ver 2.2 & 2.1 specification.
- Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 2KV ESD protection for all serial signals.
- Supports legacy ISA address 2E8, 3E8, 2F8, 3F8 mapping under DOS and Win9x/NT OS.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WQHL approval.
- Support Microsoft Windows, Linux, and DOS.
| Interface | RS-232 |
|---|---|
| Controller | SUNIX UL7512EQ (16C650 UART Compatible) |
| BUS | Universal PCI 64 / 32bit 3.3V / 5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| No. of Port | 2port |
| IRQ & IO | Assigned by System |
| FIFO | 32byte Hardware |
| Signal | DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI |
| Baud rate | 50bps ~115.2Kbps |
| Stop bit | 1, 1.5, 2 |
| Parity | even, odd, none, mark, space |
| Flow Control | None, Xon / Xoff, RTS / CTS |
| Protection | ±2KV ESD protection for each signal Human Body Model (HBM) |
| PCB Connector | DB9 Male |
| Windows Client | 9x / NT / XP / Vista / 7 / 8 / 8.1 (X86 / X64) |
| Windows Server | 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86 / X64) |
| Windows Embedded | XP Embedded / POSReady 2009 / POSReady 7 / Embedded System 2009 |
| Linux | Linux 2.4.x / 2.6.x |
| DOS | DOS |
| * FreeBSD | FreeBSD 5.3~5.5 / 6.0~6.4 |
| * IBM OS / 2 | WARP 3 / WARP 4 |
| * SCO UnixWare | UnixWare 7.1.3 / 7.1.4 / Open Server 5.0.7 / 6.0 |
| * Sun Microsystems | Solaris 10 Note : “ * “ Supported by special inquiry. |
| Hardware | CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS / NZS, RoHS |
| Software | Microsoft WHQL Windows Windows Client: XP / Vista / 7 / 8 / 8.1 (X86 / X64) Windows Server: 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86 / X64) |
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| PCB Dimension | 120 x 78 mm |
| Bracket | Standard 121mm |
| Bracket Space | 1 |
