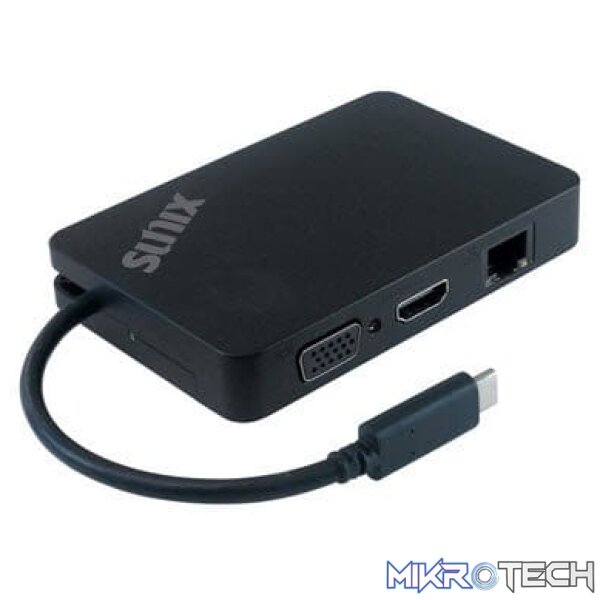

Sunix C0V50PB USB-C Portable Mini Dock with USB 3.0 / Gigabit Ethernet / VGA / HDMI

Name: Sunix C0V50PB USB-C Portable Mini Dock with USB 3.0 / Gigabit Ethernet / VGA / HDMI - MikroTech
Brand: Sunix
SKU: DS-SC0V50PB
Price: 909.99 ZAR
Availability: InStock

R909.99 incl. VAT

Only 2 left in stock

Compare

Product ID: 755641 Categories: Laptops, USB Hubs & Docking Stations

Product Description

Share This Product On:

Facebook X LinkedIn Reddit Pinterest WhatsApp Messenger Threads Telegram Bluesky Mastodon Tumblr Email

Overview:

SUNIX portable Mini Dock (C0V50PB) offers the combined functionality of a 4in1 USB 3.0 device docking station, converting a single USBC port into multiple connection ports, including a HDMI (video & audio), VGA, Gigabit Ethernet network, and USB 3.0 connectivity. There’s no need to plug in multiple cables every time you return to your desk, making easy to connect your USB TypeC equipped laptop to a complete workstation.

HDMI/VGA/Ethernet/USB 3.0 connects your USBC equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. This small, multipleinterfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. Its compatible with major Windows®based PC, Apple® MAC®OS, and Google® Chrome operation system.

Features:

One USB TypeC connection to extend video and Ethernet from your Notebook PC accessories.
Compliant with VESA DisplayPort Alternate Mode for USB TypeC Standard Rev1.0.
Supports VGA or HDMI output resolution 1080P(1920×1200@60Hz).
Downstream USB 3.0 port data transfer speed up to 5G for SuperSpeed devices connection.
Standard USB port support downstream USB Battery Charging Spec. v1.2.
Compatible with Gigabit Ethernet networks and powered via USB.
Drivers free under Apple MAC, Google Chromebook, and Windows.
Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.

Product Specifications

Model	C0V50PB
Description	USB-C Portable Mini Dock with USB 3.0 / Ethernet / VGA / HDMI
USB Standard	USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Input Interface	USB TypeC USB TypeC Alternate Mode
Output Interface	USB 3.0 TypeA x 1port Gigabit Ethernet x 1port VGA(RGB) x 1port HDMI Ver1.4 x 1port
LED indicator	Green for USB Link Ready
Power Consumption	USB Bus Power 2W @ 5VDC (board only without power output to device)
Output USB Port	USB TypeA Female Receptacle USB 3.0(5Gbps), High Speed(480Mbps) Full Speed(12Mbps), Low Speed (1.5Mbps)
Power source	USB Bus-Power 5V@1.5A from USB Type-C
Power output	USB port supports BC charging v1.2 +5VDC / Maximum 1.5A
Over Current Protection	USB TypeA Port: +5VDC
Interface	Gigabit Ethernet 10/100/1000 Mbps with Auto MDIX
No. of Port	1port
Mode	Extend mode, Mirror mode, Screen Rotation mode
Standard	HDMI Ver1.4b VGA RGB
Video	HDMI: Max resolution up to 1920×1200 @ 60Hz VGA: Max resolution up to 1920×1200 @ 60Hz Note: HDMI and VGA video output will NOT work synchronously.
Resolution Support	Resolution : Name : Refresh Rate 640×480 : VGA : 60 800×600 : SVGA : 60 1024×768 : XGA : 60 1280×720 : 720p : 60 1280×768 : WXGA+ : 60 1280×800 : WXGA : 60 1280×1024 : SXGA : 60 1366×768 : WXGA+ : 60 1400×1050 : SXGA+ : 60 1600×900 : : 60 1600×1200 : UXGA : 60 1680×1050 : WSXGA+ : 60 1920×1080 : 1080p : 60 1920×1200 : WUXGA : 60
Audio	Digital Audio output over HDMI connectivity Note: VGA does not support audio output
PCB Connector	Standard HDMI Female x 1port VGA DSub 15pin Female x 1port
Windows	Windows 10 (32/64bit) or above
APPLE MAC	MAC OS X 10.10 (Yosemite) or above
Google Chrome	Chrome OS Version 42.x or above
Operation temp.	0 °C ~ 60 °C (32140°F)
Operation humidity	5 to 95% RH
Storage temp	20 °C ~ 70 °C (4~158°F)
EMC	EUR: CE, EN55022 Class B, EN55024, EN6100032, EN6100033 US: FCC Part 15 Class B TAIWAN: BSMI: CNS13438 JAPAN: VCCI
Green	RoHS, CRoHS, WEEE
Weight	50g (1.8oz)
Case Material	ABS (plastic)
Dimension	102(L)x66(W)x16(H) mm Tethered Cable length: 150mm
