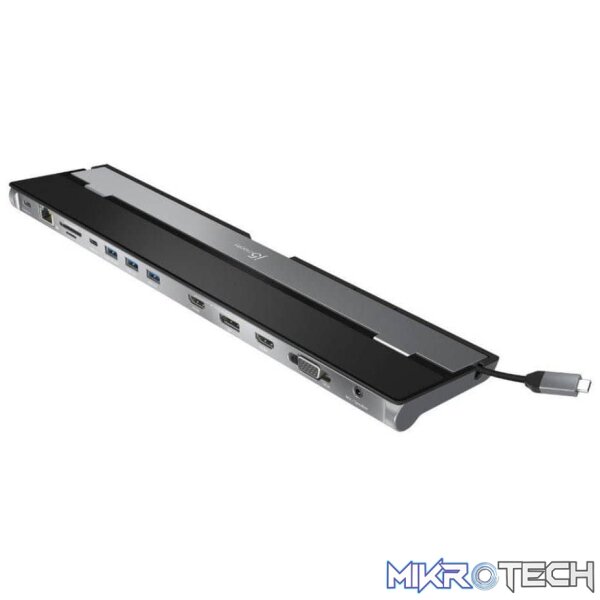

j5create JCD543 USB-C Triple Display Docking Station
R2,099.99 incl. VAT
In stock
Overview:
The j5create USB-C™ Triple Monitor Docking Station provides extra connectivity from your computer and extends to up to three monitors through HDMI™ , VGA and DisplayPort™ / HDMI™ . This docking station includes a NB stand that assists with heat dissipation and with its flexible USB-C™ cord, keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection. These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smart phone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smart phone while using the adapter.
USB-C™ is the new standard for connecting PCs and laptops and will eventually replace all current USB™ cables and connectors. This new USB™ standard can be found on laptops, phones, tablets, etc. USB-C™ has a slim and reversible design, so there is no wrong way to plug it in. USB-C™ offers greater power delivery and faster data transfer rates of up to 5 Gbps.
Features:
- USB-C™ power delivery 100W pass-through
- USB-C™ downstream port Gen 1 5G x 1
- Power delivery adapter in port x 1
- USB™ Type-A downstream port Gen 1 5G x 3
- DisplayPort™ Alt mode supported
- DisplayPort™/HDMI™ output 4K @ 30 Hz
- USB™ graphic HDMI™ resolution 4K @ 30 Hz
- VGA Resolution 1920 x 1080 dual output
- RJ45 Gigabit Ethernet
- SD™/microSD™ card slots allow for external memory access
- Combo audio jack mic/speaker
- Cable length 1.5 ft/45 cm
System Requirements:
- Available USB-C™ DisplayPort™ Alt mode
- Available USB-C™ port (USB™ 3.0 is recommended)
- Available USB™ power delivery over USB-C™ to support upstream charging
- 4K capable graphics card
- Microsoft® Windows® 10/ 8.1/ 7 (32-bit or 64-bit)
- macOS® 10.8 or later
Extended Monitor System Requirements:
- One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
- CPU: Intel® Core™ i5 Quad Core
- RAM: 4 GB memory or higher
- Two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
- CPU: Intel® Core™ i7 Quad Core
- RAM: 8 GB memory or higher
- – Higher processor recommended for multi-displays and optimal performance.
| Host Interface | USB-C male connector with cable |
|---|---|
| Video Interface | HDMI female connector x 2 DisplayPort female connector x 1 VGA female connector x 1 |
| Ethernet Port | RJ45 female connector (Gigabit Ethernet) x 1 |
| USB Port | USB Type-A 3.1 5G female connector x 3 |
| Card Slots | SD 3.0 x 1 Slot microSD 3.0 x 1 Slot |
| Combo Audio Jack | Microphone and speaker |
| PowerMode | Bus-powered or self-powered |
| HDMI | Display resolution: 4K @ 30 Hz |
| VGA | Display resolution: 1920 x 1080 @ 60 Hz |
| USB-C | Power delivery 3.0 x 1 USB-C 3.1 port x 1 |
| USB | USB Type-A 3.1 port x 3 (USB 3.1 Gen 1/5 Gbps) BC 1.2 port x 1 |
| Ethernet | Transfer Rate: 1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x Modes: Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet or Microsoft wakeup frame Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering |
| Dimensions | Main body: 3.24 (W) x 0.92 (H) x 13.78 (D) in. 82.5 (W) x 23.4 (H) x 350 (D) mm USB-C cable length: 1.5 ft/450 mm |
| Weight | Approximately: 0.66 lbs./300g |
| Storage Temperature | -10 – 65°C |
| Storage Humidity | 85% non-condensing |
| Operation Temperature | 0 – 40°C |
| Operation Humidity | 85% non-condensing |
