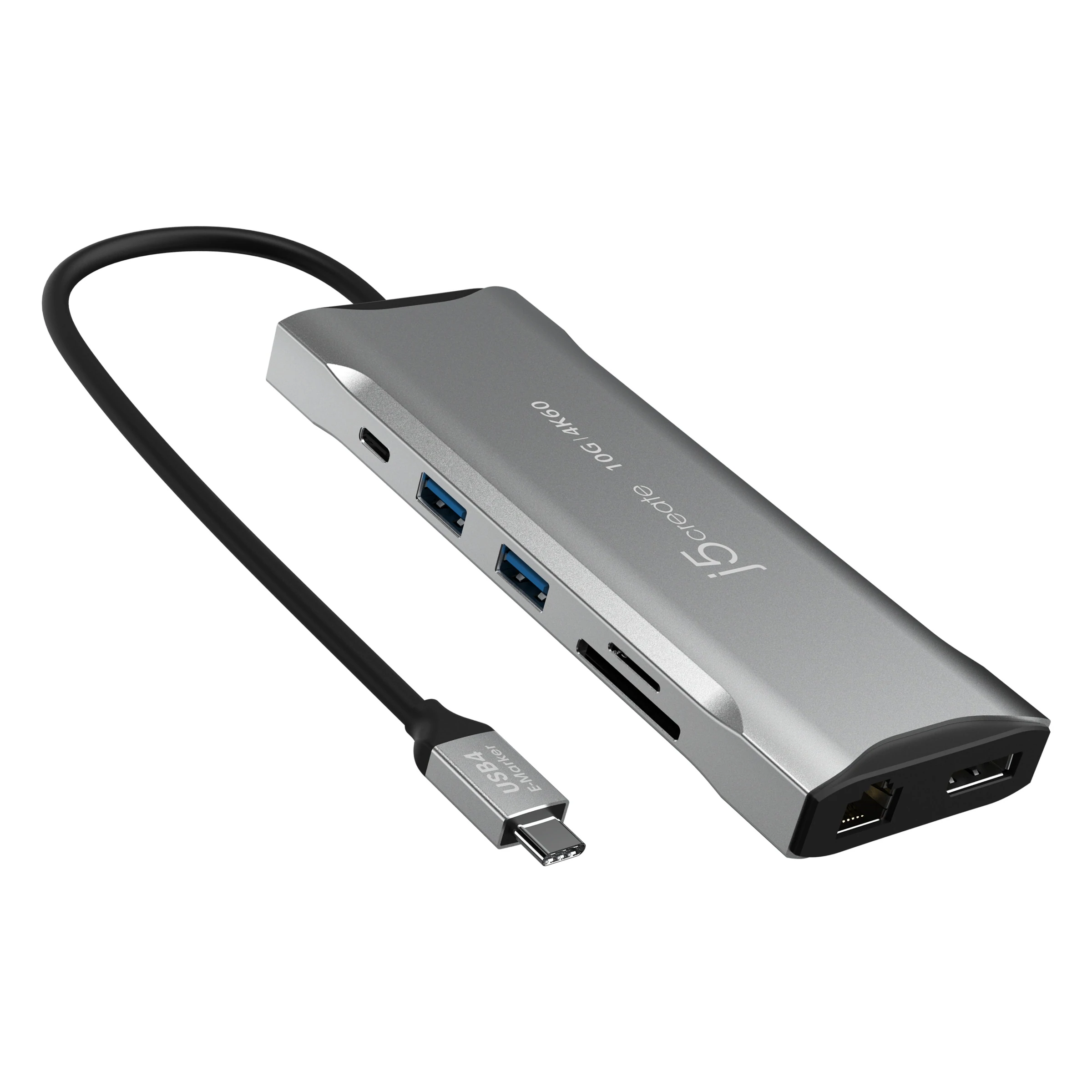

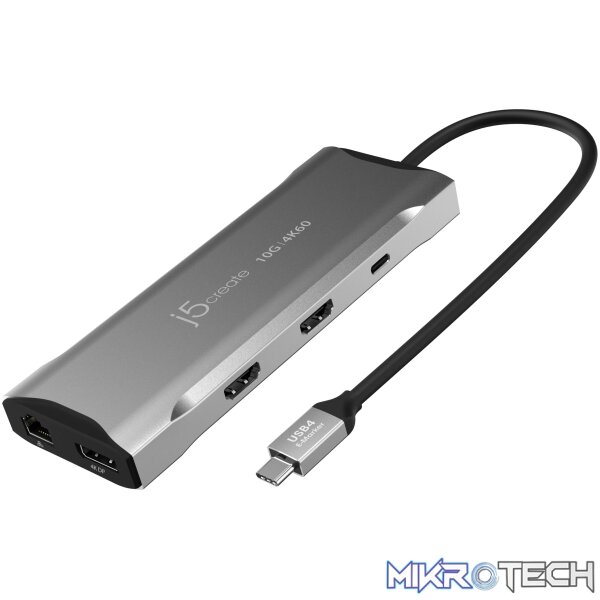

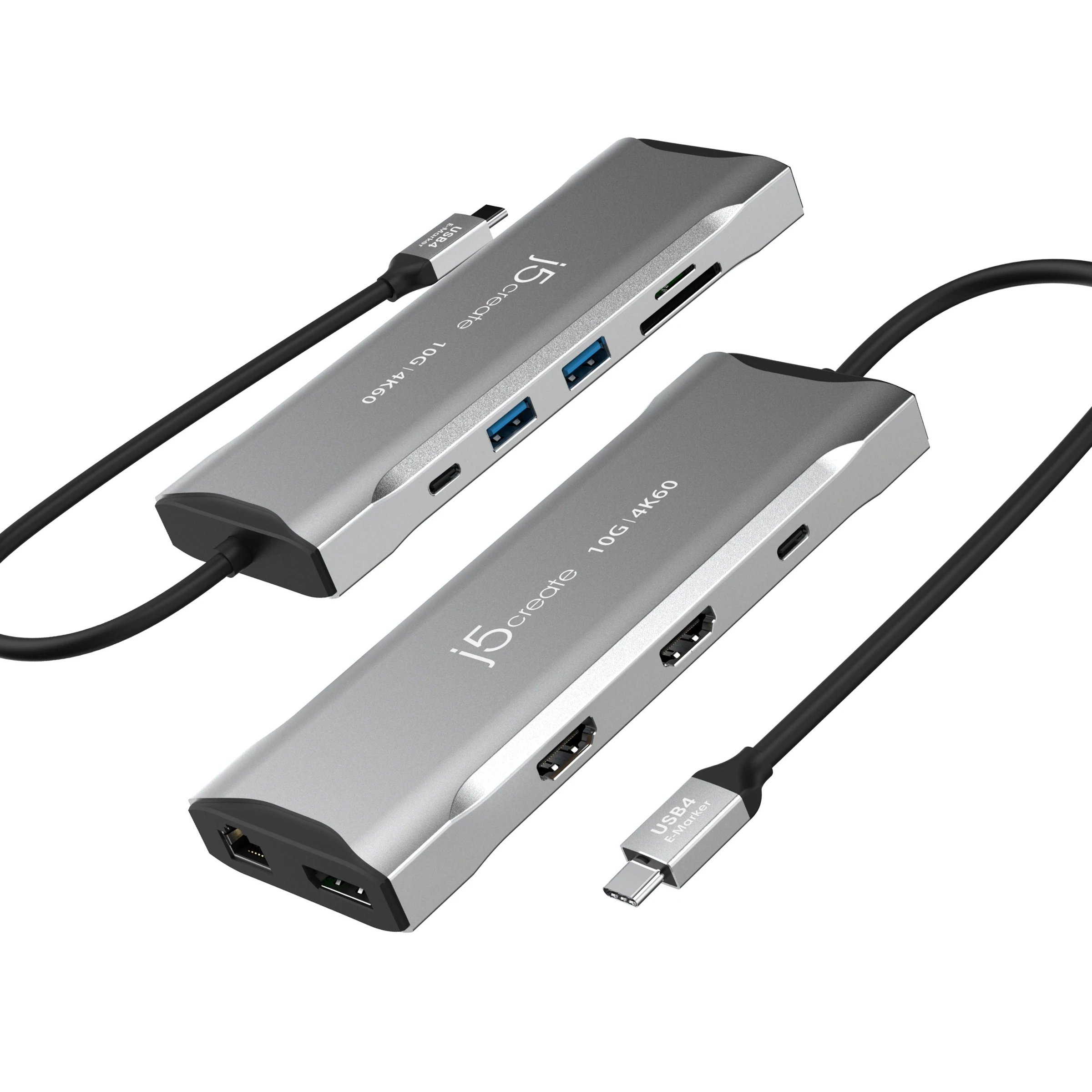

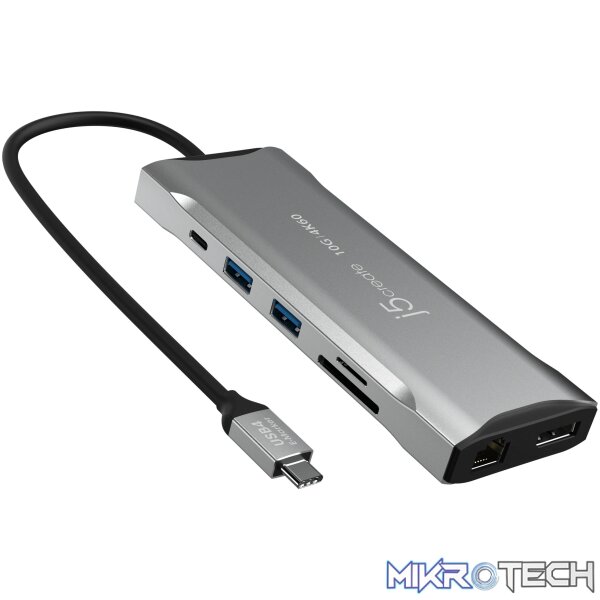

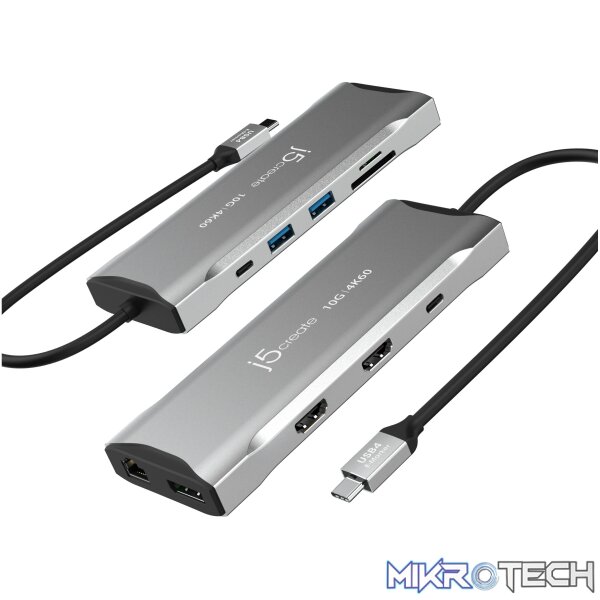

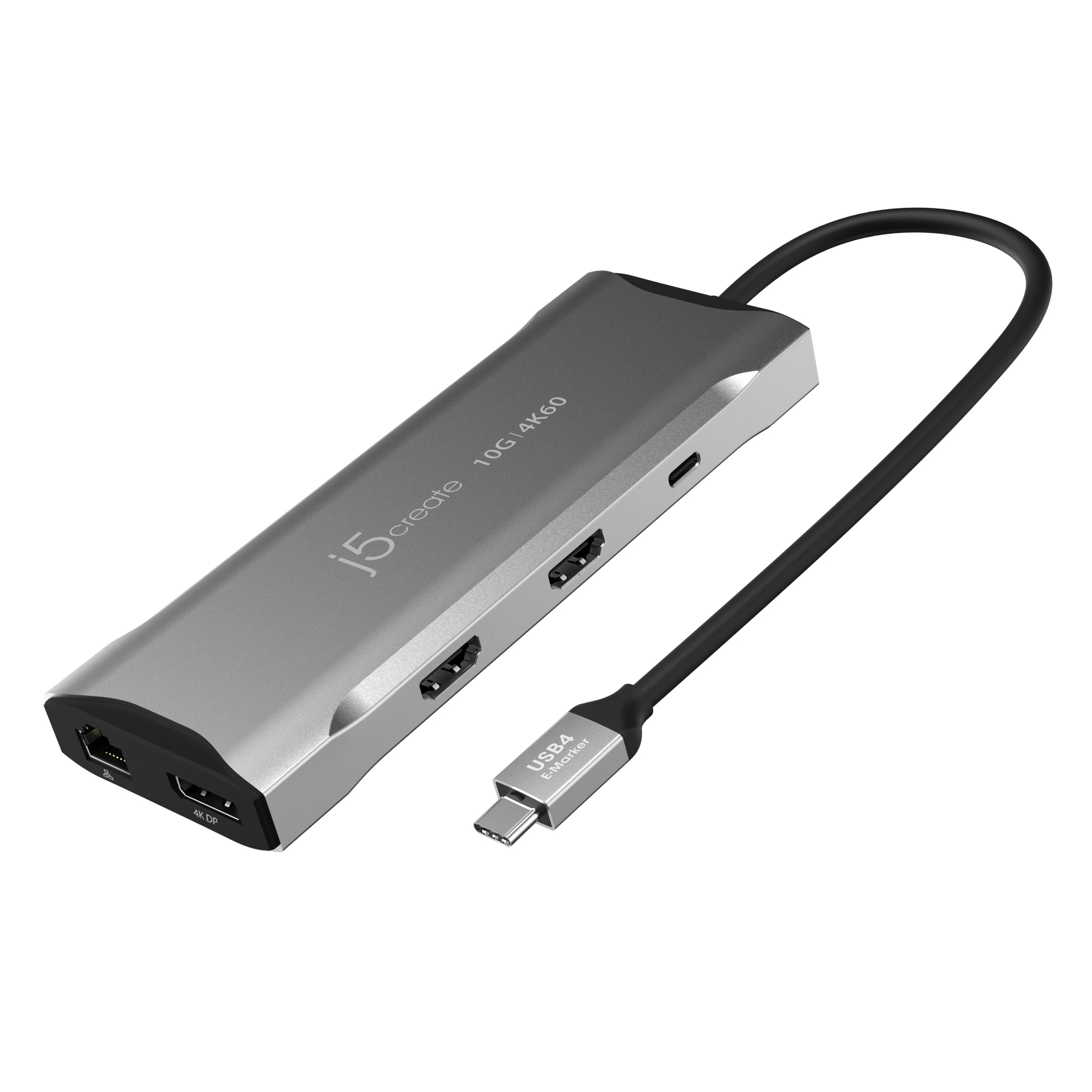

J5 Create JCD397 4K60 Elite Triple-Monitor Mini Dock

Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Mini Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4™, Thunderbolt™ 3, and Thunderbolt™ 4 hosts and devices.

This USB-C® 10Gbps mini dock with DisplayPort™ 1.4 support lets you easily connect a 4K 60Hz display. It includes three USB™ SuperSpeed 10Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network.

The adapter also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.

Specifications

• Hardware
  • Audio Supported: Yes
  • Host Connector: 1 x USB-C Male
  • Network Interface: RJ45 (Gigabit Ethernet)
• Ports
  • 1 x USB-C 10Gbps
  • 1 x USB-C 5Gbps with Power Delivery 3.0
  • 2 x USB Type-A 10Gbps
  • 1 x USB-C Power Delivery 3.0
  • 2 x 4K HDMI
  • 1 x DisplayPort
  • 1 x SD™ & microSD™ 4.0 memory card reader/writer
  • 1 x RJ45 Gigabit Ethernet
• Performance
  • Audio Channel: 2.1 via HDMI
  • Compatible Networks: 10/100/1000 Mbps
  • Displays Supported: 3
  • Max Data Transfer Rate: 10Gbps
• Max Display Refresh Rate
  • Windows® (MST)
  • 3840 x 2160 @ 60
  • 2560 x 1440 @ 144 via HDMI
  • 1920 x 1080 @ 240 via DP
• Physical Specifications
  • Cable Length: 20mm
  • Color: Space Grey
  • Enclosure Type: Aluminum
  • Product Dimensions (DxHxW): 17 x 148 x 55 mm
• Warranty: 2 Year Limited

Manufacturer’s Link
