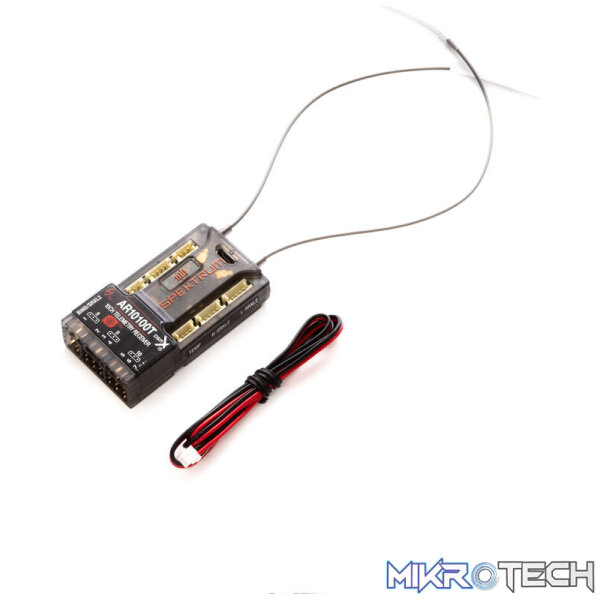

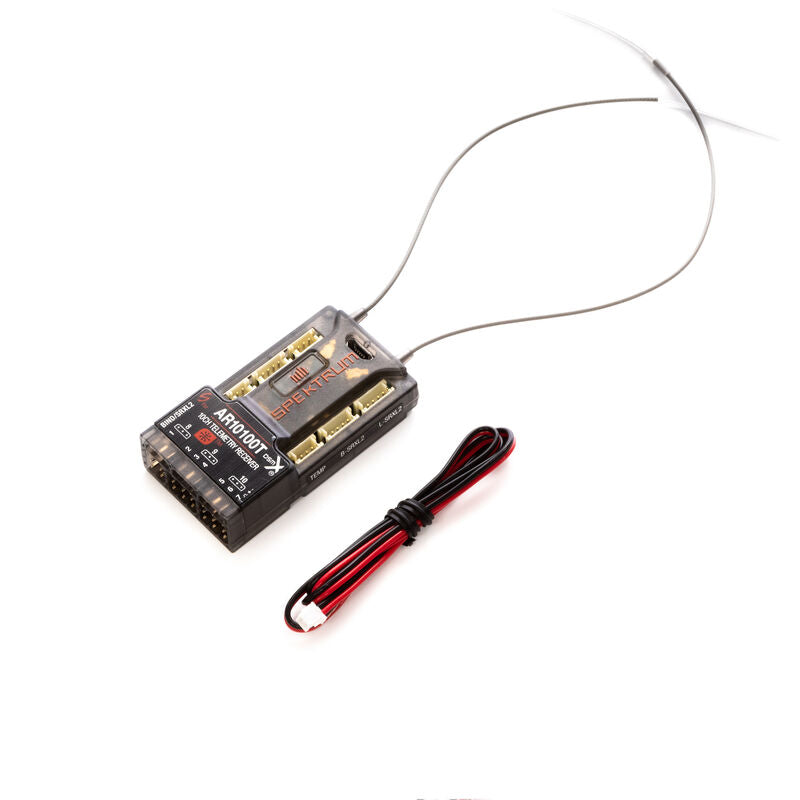

Spektrum AR10100T DSMX 10-Channel Telemetry Receiver

The Spektrum AR10100T is a compact, full-range, 10-channel telemetry receiver featuring an integrated barometer, Smart ESC compatibility, and dual SRXL2 ports for additional RF path redundancy. Ideal for a wide range of aircraft from park flyers to giant-scale models.

Features

• Full-range telemetry with integrated barometer for altitude and variometer data
• Compatible with all Spektrum DSMX and DSM2 aircraft transmitters
• Smart telemetry support for voltage, current, temperature, and RPM data when used with a Smart ESC
• Dual SRXL2 ports for optional remote receivers to enhance RF redundancy
• Forward Programming for setup and configuration directly from your transmitter
• Bind button for easy binding without a plug
• Micro USB port for registration and firmware updates
• Compact end-pin design with dual external antennas for reliable reception

What’s Included

• AR10100T DSMX 10-Channel Telemetry Receiver
• Spektrum Flight Pack Voltage Sensor
• Product manual

Needed to Complete

• Spektrum telemetry-capable transmitter

Specifications

• Application: Aircraft
• Band: 2.4 GHz
• Channels: 10
• Modulation: DSMX / DSM2
• Input Voltage: 3.5–9 V
• Range: Full
• Resolution: 2048
• Telemetry: Yes – full range, integrated barometer/vario
• Serial Ports: SRXL2 (2)
• Dimensions (L × W × H): 55 × 30 × 15 mm
• Weight: 18 g
• Antenna Length: 186 mm
