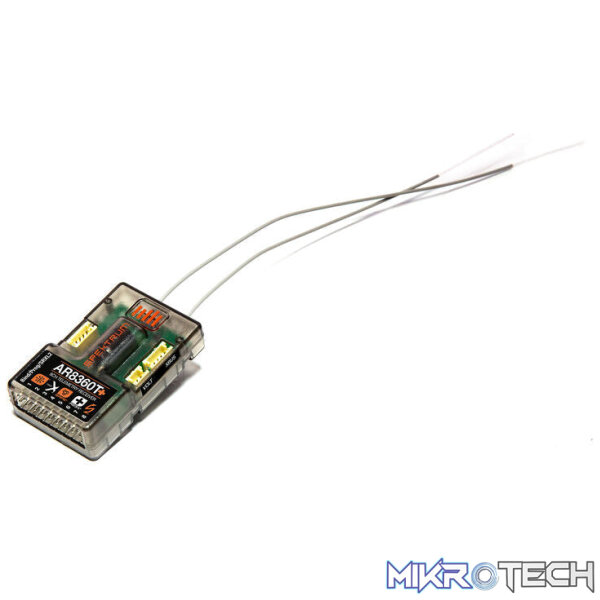

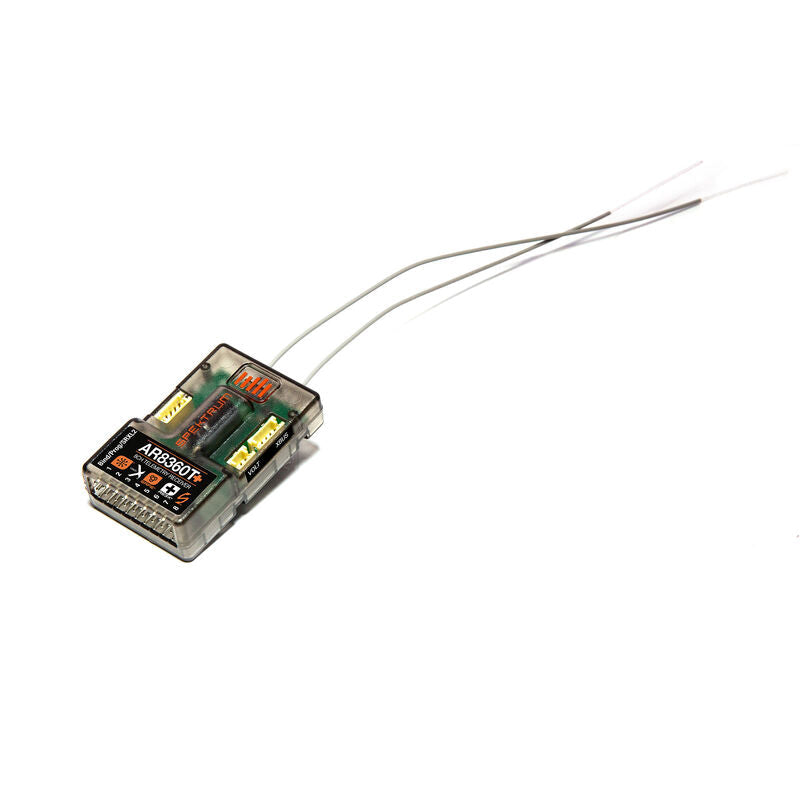

Spektrum AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver

The Spektrum AR8360T+ is a full-range, 8-channel receiver with built-in AS3X+ stabilisation and SAFE flight envelope protection, delivering a next-generation, locked-in feel with improved sensor accuracy and simple forward-programming setup.

Features

• Compatible with all Spektrum DSM2 and DSMX aircraft transmitters
• Integrated AS3X+ stabilisation with SAFE flight modes and Panic recovery
• Smart Transmitter Model File support for easy model setup on compatible NX and iX transmitters
• Full-range telemetry with integrated barometer providing altitude and variometer data
• Ready for one-wire Smart telemetry with Spektrum Smart ESCs
• Forward Programming from the transmitter, including per-channel failsafe settings
• Bind button for easy binding (no bind plug required)
• SRXL2 port for optional remote receiver to add RF path redundancy (sold separately)
• End-pin outputs for compact, tidy installation
• Dual external aerials for robust RF coverage

What’s Included

• AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver
• Product manual

Needed to Complete

• Spektrum telemetry-capable transmitter

Specifications

• Application: Aeroplane, sailplane
• Band/Modulation: 2.4 GHz DSMX
• Channels: 8
• Input voltage: 3.5–9 V
• Range: Full
• Resolution: 2048
• Telemetry: Yes (full range); integrated barometer/vario
• Serial output: SRXL2
• Remote receiver ports: 1
• Antenna length: 155 mm
• Dimensions (L × W × H): 49 × 30 × 15 mm
• Weight: 16 g
