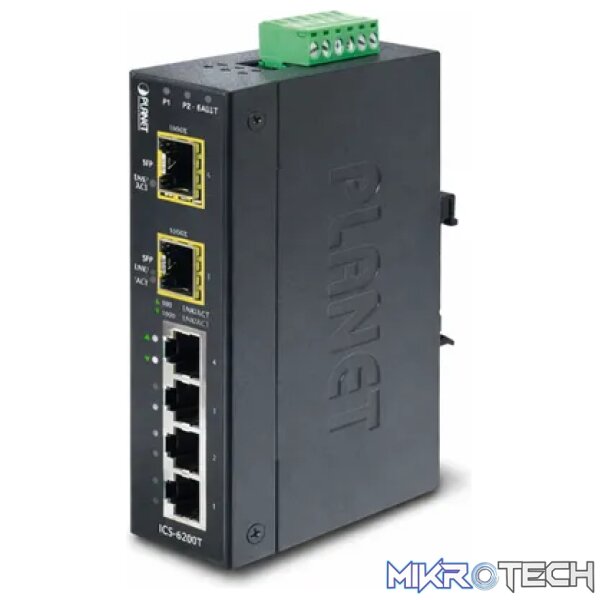

Planet IP30 Industrial 4-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Switch (-40 to 75 Degree C) – Networking

Auto-MDI/MDI-X, Auto-Negotiation

Compatible with 100Base-FX SFP

DIP-2: SFP Port 6 1000Base-X (default)/ 100Base-FX

DIP-3: Switch mode / Fiber Redundant mode

Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

Alarm Relay current carry ability: 1A @ DC 24V

Green: DC Power 1

Green: DC Power 2

Green: Power Fault

2 x LED for Per Copper Port (Port-1~Port-4):

Green: 1000 LNK/ACT

Orange:100 LNK/ACT

1 x LED for Per mini-GBIC interface (Port-5 and Port-6):

Green: LNK/ACT

Redundant power with polarity reverses protection function

10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters

100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters

1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters

Fiber-Optic Cable

1000Base-SX:

50/125¼m or 62.5/125¼m multi-mode fiber optic cable, up to 550m

1000Base-LX:

9/125¼m single-mode fiber optic cable, up to 10/20/30/40/50/70/120 kilometers (vary on SFP module)

100Base-FX:

50/125¼m or 62.5/125¼m multi-mode fiber optic cable, up to 2 kilometers

9/125¼m single-mode fiber optic cable, up to 20/40/60 kilometers

(vary on SFP module)

IEEE 802.3x Pause Frame for full duplex

FX: 200Mbps (full-duplex)

TP: 10/20Mbps, 100/200Mbps, 2000Mbps

IEEE 802.3u Fast Ethernet / 100Base-TX

IEEE 802.3ab Gigabit Ethernet / 1000Base-T

IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX

IEEE 802.3x Full-Duplex Flow Control

IEC60068-2-27(Shock)

IEC60068-2-6(Vibration)
