Images & Specifications Are For Illustrative Purposes Only & May Differ From The Actual Product. E&OE
| Hardware Specifications | |
| Copper Ports | 24 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Reset Button | System factory default |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 52Gbps / non-blocking |
| Switch Throughput@64 bytes | 38.6Mpps @64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 9216 bytes |
| Reset Button | > 5 sec: Factory default |

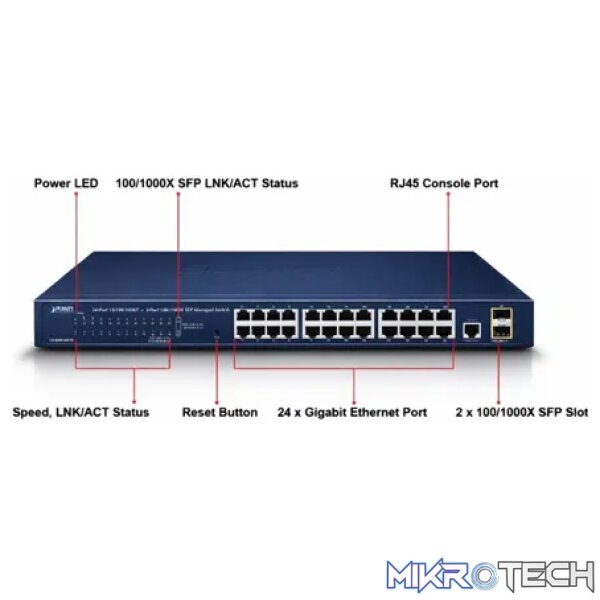

| LED | System: Power (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 24): 1000 LNK / ACT (Green), 10/100 LNK/ACT (Orange) 100/1000Mbps SFP Interfaces (Port 25 to Port 26): 1000 LNK / ACT (Green), 100 LNK/ACT (Orange) |
| Power Requirements | 100~240V AC, 50/60Hz, 0.8A (max.) |
| Power Consumption / Dissipation | Max. 14 watts / 47 BTU |
| Dimensions (W x D x H) | 445 x 207 x 45 mm (1U height) |
| Weight | 2.1kg |
| ESD Protection | Yes |
| Enclosure | Metal |
| Layer 2 Functions | |
| Port Mirroring | TX / RX / Both Many-to-1 monitor |
| VLAN | 802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN |
| Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 8 groups of 8-port trunk |
| Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping | IPv4 IGMP (v2 / v3) Snooping IGMP Querier Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD (v1 / v2) snooping, up to 256 multicast groups |
| Access Control List | IPv4/IPv6 IP-based ACL / MAC-based ACL IPv4/IPv6 IP-based ACE / MAC-based ACE |
| QoS | 8 mapping ID to 8 level priority queues Port Number 802.1p priority DSCP / IP Precedence of IPv4 / IPv6 packets Traffic classification based, strict priority and WRR Ingress / Egress Rate Limit per port bandwidth control |
| Security | IEEE 802.1X port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS / TACACS+ authentication IP-MAC port binding MAC filtering Static MAC address DHCP snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard Storm control support Broadcast / Unknown-Unicast / Unknown-Multicast |
| Management Functions | |
| Basic Management Interfaces | RJ45 Console / Web browser / Telnet / SNMP v1, v2c, v3 Firmware upgrade by HTTP / TFTP protocol through Ethernet network Configuration upload / download through HTTP / TFTP Remote / Local Syslog System log LLDP protocol SNTP PLANET Smart Discovery Utility |
| Secure Management Interfaces | HTTPs, SNMP v3 |
| SNMP MIBs | RFC 3635 Ethernet-like MIB RFC 2863 Interface Group MIB RFC 2819 RMON (1, 2, 3, 9) RFC 1493 Bridge MIB |
| Weight | 4 kg |
|---|---|
| Dimensions | 15 × 55 × 30 cm |
