Hardware Specifications |
10/100Mbps Copper Ports | 24 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
Gigabit Copper Ports | 2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
SFP/mini-GBIC Slots | 2 1000BASE-X SFP interfaces, shared with Port-25 to Port-26 |
Switch Architecture | Store-and-Forward |
Switch Fabric | 8.8Gbps / non-blocking |
Throughput | 6.54Mpps@64Bytes |
Address Table | 4K entries, automatic source address learning and ageing |
Shared Data Buffer | 2.75Mb embedded memory for packet buffers |
Flow Control | IEEE 802.3x pause frame for full-duplex |
Back pressure for half-duplex |
Maximum Transmit Unit | 1518 Bytes |
Reset Button | < 5 sec: System reboot |
> 5 sec: Factory default |
Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height |
Weight | FGSW-2624HPS: 4142g |
Power Consumption | FGSW-2624HPS: Max. 297 watts / 1013.4 BTU |
ESD Protection | Contact Discharge 4KV DC |
Air Discharge 8KV DC |
LED | FGSW-2624HPS: |
System: |
Power (Green) |
10/100BASE-TX RJ45 Interfaces (Port 1 to Port 24): |
10/100Mbps LNK/ACT (Green) |
PoE-in-Use (Orange) |
10/100/1000BASE-T RJ45 / SFP Interfaces (Port 25 to Port 26): |
LNK/ACT (Green) |
100/1000 (Green) |
PoE Usage |
50W, 100W, 150W, 190W (Orange) |
Cable | Twisted-pair: |
? 10BASE-T: 2-pair UTP Cat 3, 4, 5 for up to 100 meters |
? 100BASE-TX: 2-pair UTP Cat 5, 5e for up to 100 meters |
? 1000BASE-T: 4-pair UTP Cat 5e, 6 for up to 100 meters |
|
Fiber-optic Cable: |
? 1000BASE-SX: |
50/125?m or 62.5/125?m multi-mode fiber-optic cable, up to 550m (varying on SFP module) |
? 1000BASE-LX: |
9/125?m single-mode fiber optic cable, up to 10/20/30/40/50/70/120 kilometers (varying on SFP module) |
Power over Ethernet |
PoE Standard | IEEE 802.3af / 802.3at PoE / PSE |
PoE Power Supply Type | End-span |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Output | FGSW-2624HPS: Per Port 52V DC, Max. 30.8 watts |
PoE Power Budget | FGSW-2624HPS: |
? 220 watts (max.) @ 25 degrees C |
? 190 watts (max.) @ 50 degrees C |
PoE Ability | FGSW-2624HPS: |
? PD @ 7 watts: 24 units |
? PD @ 15.4 watts: 14 units |
? PD @ 30 watts: 7 units |
Layer 2 Functions |
Port Configuration | Port disable / enable |
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection |
Flow Control disable / enable |
Port Status | Display each ports speed duplex mode, link status, flow control status, auto negotiation status and trunk status |
Port Mirroring | TX / RX / Both |
Many-to-1 monitor |
VLAN | 802.1Q tagged-based VLAN, up to 32 VLAN groups, out of 4094 VLAN IDs |
Port-based VLAN, up to 26 VLAN groups |
MTU VLAN |
Link Aggregation | 1 group of 2-Port 10/100/1000BASE-T trunk supported |
QoS | Allows to assign low / high priority on each port |
First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy |
IGMP Snooping | IGMP (v1 / v2) Snooping, up to 32 multicast groups |
Without Query supported |
Security Control | MAC address binding |
TCP & UDP filter |
Management Functions |
Basic Management Interfaces | Web browser, SNMP v1 |
Standards Conformance |
Regulation Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 Ethernet |
IEEE 802.3u Fast Ethernet |
IEEE 802.3ab Gigabit Ethernet |
IEEE 802.3z Gigabit Ethernet over Fiber-Optic |
IEEE 802.3x Full-duplex flow control |
IEEE 802.1Q VLAN |
IEEE 802.1p QoS |
IEEE 802.1D Spanning Tree Protocol |
IEEE 802.1w Rapid Spanning Tree Protocol |
IEEE 802.3af Power over Ethernet |
IEEE 802.3at Power over Ethernet Plus |
Environment |
Operating | Temperature: 0 ~ 50 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
Storage | Temperature: -10 ~ 70 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |

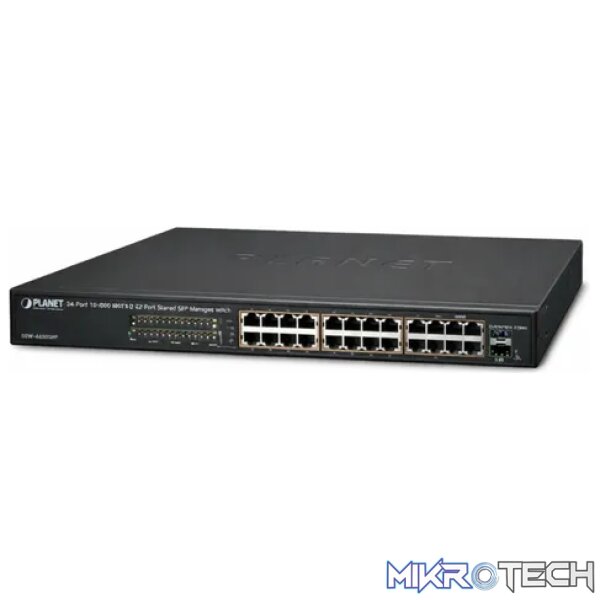

Be the first to review “Planet 24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Web Smart Ethernet Switch / 220W PoE budget Networking”
