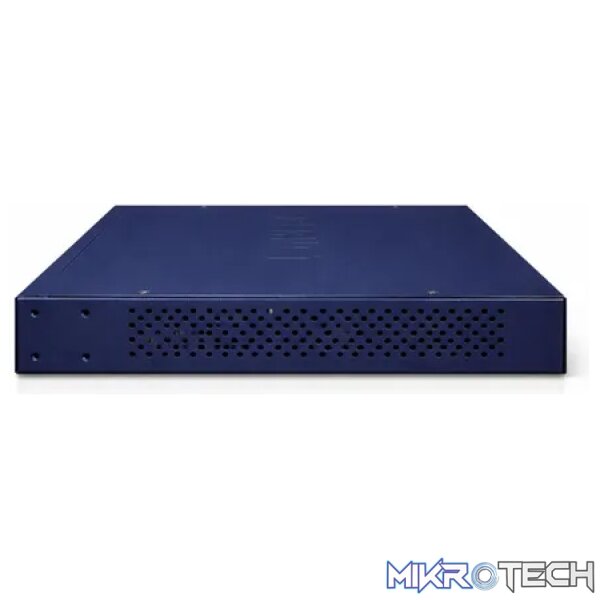

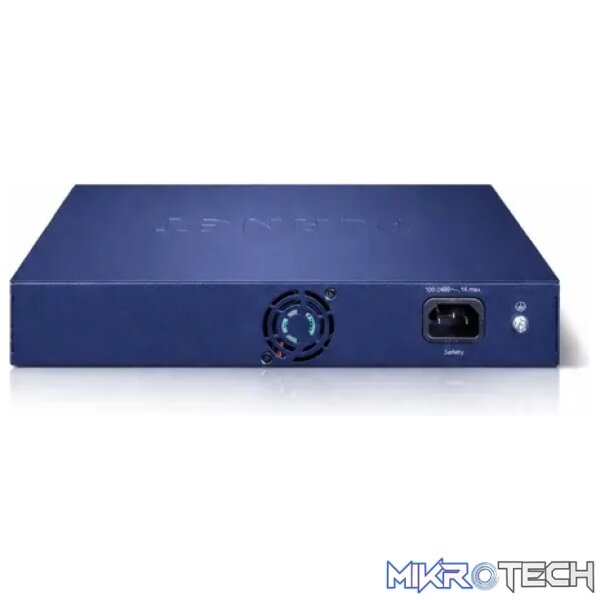

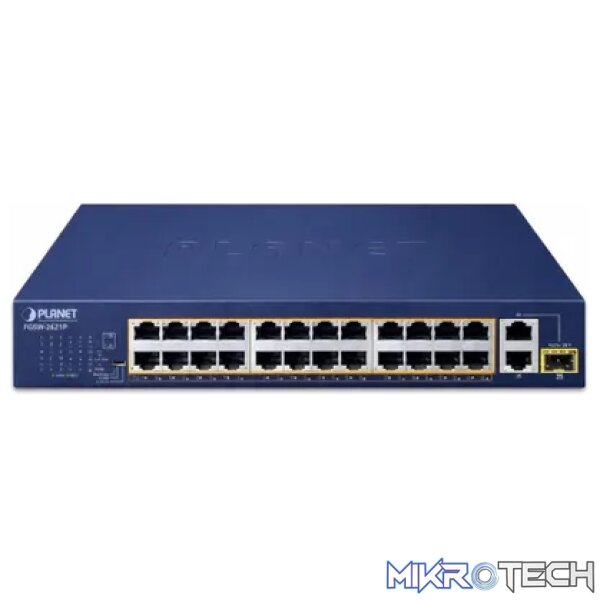

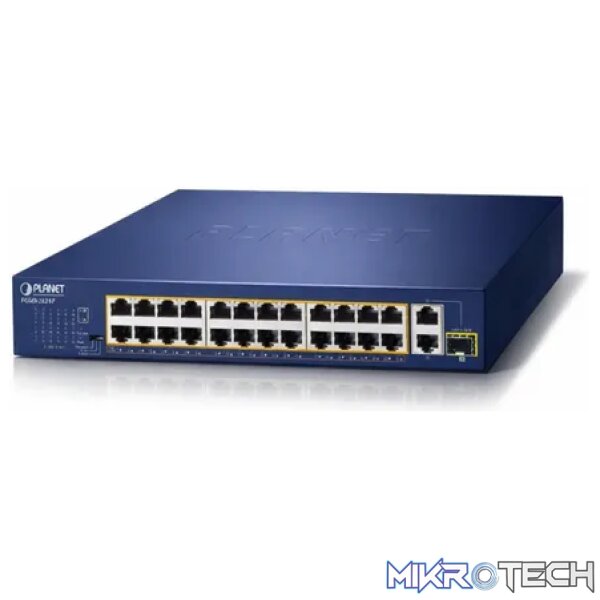

Planet – FGSD-2621P – 24-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port shared 1000X SFP Unmanaged Gigabit Ethernet Switch- Networking
R3,087.17 incl. VAT
In stock
Product Description
| Hardware Specifications | |
| 10/100Mbps Copper Ports | 24 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| Gigabit Copper Ports | 2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 1000BASE-X SFP interfaces, shared with Port-25 to Port-26 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 8.8Gbps / non-blocking |
| Throughput | 6.54Mpps@64Bytes |
| Address Table | 4K entries, automatic source address learning and ageing |
| Shared Data Buffer | 2.75Mb embedded memory for packet buffers |
| Flow Control | IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex | |
| Maximum Transmit Unit | 1518 Bytes |
| Reset Button | < 5 sec: System reboot |
| > 5 sec: Factory default | |
| Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height |
| Weight | FGSW-2624HPS: 4142g |
| Power Consumption | FGSW-2624HPS: Max. 297 watts / 1013.4 BTU |
| ESD Protection | Contact Discharge 4KV DC |
| Air Discharge 8KV DC | |
| LED | FGSW-2624HPS: |
| System: | |
| Power (Green) | |
| 10/100BASE-TX RJ45 Interfaces (Port 1 to Port 24): | |
| 10/100Mbps LNK/ACT (Green) | |
| PoE-in-Use (Orange) | |
| 10/100/1000BASE-T RJ45 / SFP Interfaces (Port 25 to Port 26): | |
| LNK/ACT (Green) | |
| 100/1000 (Green) | |
| PoE Usage | |
| 50W, 100W, 150W, 190W (Orange) | |
| Cable | Twisted-pair: |
| 10BASE-T: 2-pair UTP Cat 3, 4, 5 for up to 100 meters | |
| 100BASE-TX: 2-pair UTP Cat 5, 5e for up to 100 meters | |
| 1000BASE-T: 4-pair UTP Cat 5e, 6 for up to 100 meters | |
| Fiber-optic Cable: | |
| 1000BASE-SX: | |
| 50/125¼m or 62.5/125¼m multi-mode fiber-optic cable, up to 550m (varying on SFP module) | |
| 1000BASE-LX: | |
| 9/125¼m single-mode fiber optic cable, up to 10/20/30/40/50/70/120 kilometers (varying on SFP module) | |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af / 802.3at PoE / PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Output | FGSW-2624HPS: Per Port 52V DC, Max. 30.8 watts |
| PoE Power Budget | FGSW-2624HPS: |
| 220 watts (max.) @ 25 degrees C | |
| 190 watts (max.) @ 50 degrees C | |
| PoE Ability | FGSW-2624HPS: |
| PD @ 7 watts: 24 units | |
| PD @ 15.4 watts: 14 units | |
| PD @ 30 watts: 7 units | |
| Layer 2 Functions | |
| Port Configuration | Port disable / enable |
| Auto-negotiation 10/100/1000Mbps full and half duplex mode selection | |
| Flow Control disable / enable | |
| Port Status | Display each ports speed duplex mode, link status, flow control status, auto negotiation status and trunk status |
| Port Mirroring | TX / RX / Both |
| Many-to-1 monitor | |
| VLAN | 802.1Q tagged-based VLAN, up to 32 VLAN groups, out of 4094 VLAN IDs |
| Port-based VLAN, up to 26 VLAN groups | |
| MTU VLAN | |
| Link Aggregation | 1 group of 2-Port 10/100/1000BASE-T trunk supported |
| QoS | Allows to assign low / high priority on each port |
| First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy | |
| IGMP Snooping | IGMP (v1 / v2) Snooping, up to 32 multicast groups |
| Without Query supported | |
| Security Control | MAC address binding |
| TCP & UDP filter | |
| Management Functions | |
| Basic Management Interfaces | Web browser, SNMP v1 |
| Standards Conformance | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3z Gigabit Ethernet over Fiber-Optic | |
| IEEE 802.3x Full-duplex flow control | |
| IEEE 802.1Q VLAN | |
| IEEE 802.1p QoS | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
| Storage | Temperature: -10 ~ 70 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
| Weight | 2 kg |
|---|---|
| Dimensions | 181 × 281 × 45 cm |
