Images & Specifications Are For Illustrative Purposes Only & May Differ From The Actual Product. E&OE
| Hardware Specifications | |

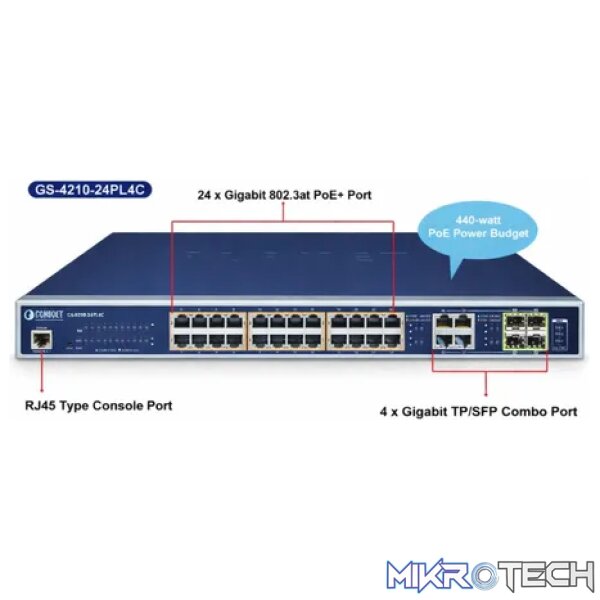

| Copper Ports | 28 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X port |
| SFP/mini-GBIC Slots | 4 x 100/1000BASE-X SFP interface shared with port-25 to port-28 Supports 100/1000Mbps dual mode and DDM |
| PoE Injector Port | 24 ports with 802.3at / af PoE injector function with port-1 to port-24 |
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 56Gbps / non-blocking |
| Switch Throughput@64Bytes | 41.67Mpps |
| Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 10K bytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | PWR, SYS, LNK/ACT, PoE-in-Use, 1000, FAN 1 Alert, FAN 2 Alert, PoE PWR Alert |

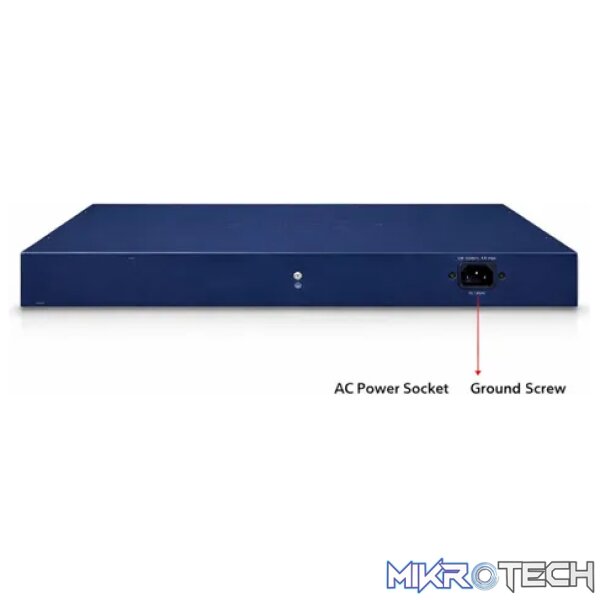

| Power Requirements | 100~240V AC, 50/60Hz, auto-sensing |
| Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height |
| ESD Protection | Contact Discharge 4KV DC Air Discharge 8KV DC |
| Enclosure | Metal |
| Weight | GS-4210-24PL4C: 4814g |
| Power Consumption / Dissipation | GS-4210-24PL4C: 544 watts (max.) / 1856.2 BTU |
| Fan | GS-4210-24PL4C: 3 x smart fan |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af / 802.3at PoE+ PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 52V DC, 30.8 watts (max.) |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | GS-4210-24PL4C: 440 watts (max.) @ 25 degrees C 380 watts (max.) @ 50 degrees C |
| PoE Ability PD @ 9 watts | GS-4210-24PL4C: 24 units |
| PoE Ability PD @ 15.4 watts | GS-4210-24PL4C: 24 units |
| PoE Ability PD @ 30 watts | GS-4210-24PL4C: 14 units |
| Layer 2 Functions | |
| Port Mirroring | TX / RX / both Many-to-1 monitor |
| VLAN | 802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP |
| Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 8 groups of 8-port trunk |
| Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol |
| IGMP Snooping | IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups |
| MLD Snooping | MLD (v1/v2) snooping, up to 256 multicast groups |
| Access Control List | IPv4/IPv6 IP-based ACL / MAC-based ACL |
| QoS | 8 mapping ID to 8 level priority queues Port number 802.1p priority 802.1Q VLAN tag DSCP field in IP packet Traffic classification based, strict priority and WRR |
| Security | IEEE 802.1X port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS / TACACS+ user access authentication IP-MAC port binding MAC filtering Static MAC address DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
| Management Functions | |
| Basic Management Interfaces | Web browser / Telnet / SNMP v1, v2c Firmware upgrade by HTTP / TFTP protocol through Ethernet network Remote / Local Syslog System log LLDP protocol SNTP |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB |
| Weight | 5 kg |
|---|---|
| Dimensions | 15 × 60 × 10 cm |
