Images & Specifications Are For Illustrative Purposes Only & May Differ From The Actual Product. E&OE
| Hardware Specifications | |
| SFP/Mini-GBIC Slots | 24 1000BASE- X SFP interface Compatible with 100BASE-X SFP transceiver |
| Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with Port-1 to Port-16 |
| SFP+/Mini-GBIC Slots | 4 10GBASE-SR/LR SFP+ interface (Port-25 to Port-28) Compatible with 1000BASE-X SFP transceiver |

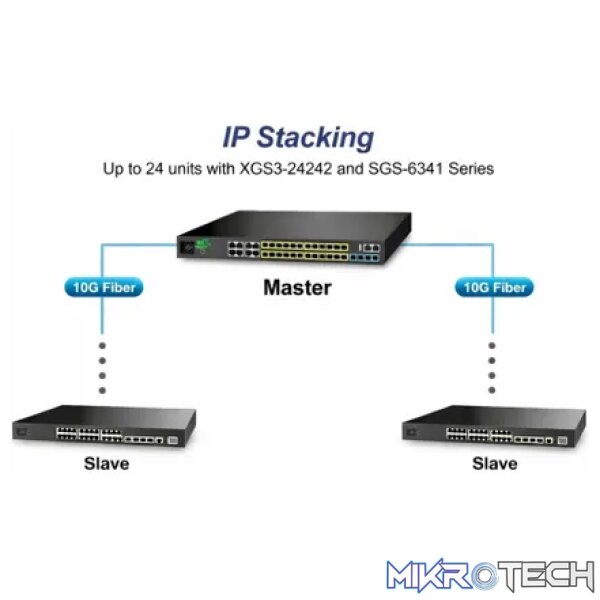

| QSFP+ Stacking Slots | 2 20Gbps Hardware Stacking ports via QSFP+ Interface |
| Switch Processing Scheme | Store-and-Forward |
| Switch Fabric | 208Gbps |
| Throughput | 154Mpps@64bytes |
| Address Table | 32K entries |
| Shared Data Buffer | 32Mbits |
| VLAN Table | 4K |
| Routing Table | IPv4 for 16K IPv6 for 6K |
| Layer 3 Interface | 1K |
| Port Queues | 8 |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 16Kbytes |
| LED | System: PWR1, PWR2, Mode, SYS Ports: Link/Act |
| Dimensions (W x D x H) | 440 x 350 x 44.5 mm, 1U height |
| Weight | 4.78kg |
| Power Requirements | AC: 100 ~ 240VAC, 50/60Hz, auto-sensing DC: -48V ~ -60V DC (optional) |
| Power Consumption | 53 watts (max.) |
| IPv4 Layer 3 functions | |
| IP Routing Protocol | Static route, RIPv1/v2, OSPFv2, BGPv4 Policy-based routing (PBR) LPM routing (MD5 authentication) |
| Multicast Routing Protocol | IGMP v1/v2/v3, DVMRP, PIM-DM/SM, PIM-SSM |
| Layer 3 Protocol | VRRP v1/v3, ARP, ARP Proxy |
| Routing Interface | Per VLAN |
| IPv6 Layer 3 functions | |
| IP Routing Protocol | RIPng, OSPFv3, BGPv4+ |
| Multicast Routing Protocol | PIM-SM/DM for IPv6 MLD for IPv6 (v1) MLDv1/v2 MLD Snooping, 6 to 4 Tunnels Multicast receive control Illegal multicast source detect |
| Layer 3 Protocol | Configured Tunnels, ISATAP, CIDR |
| Layer 2 Functions | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Bandwidth control on each port Port Loopback detect |
| VLAN | 802.1Q tagged based VLAN, up to 4K VLAN groups Q-in-Q GVRP Private VLAN Voice VLAN MAC-based VLAN Protocol-based VLAN |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), Spanning Tree by VLAN Root Guard BPDU Guard |
| Link Aggregation | Static trunk IEEE 802.3ad LACP Supports 128 groups with 8 ports per trunk group |
| QoS | Traffic classification based, strict priority, SWRR, WRR, DWRR, SDWRR, WRED 8-level priority for switching Port number 802.1p priority DSCP/TOS field in IP packet Policy-based DiffServ |
| Multicast | IGMP v1/v2/v3 snooping IGMP proxy IGMP querier mode support MLD v1/v2, MLD v1/v2 snooping |
| Access Control List | Support standard and expanded ACL IP-based ACL/MAC-based ACL Time-based ACL ACL pool can be used for QoS classification |
| Security | Supports MAC+ port binding IPv4/IPv6 + MAC+ port binding IPv4/IPv6 + port binding Supports MAC filter ARP spoofing prevention ARP scanning prevention IP source guard IPv6 ND snooping |
| Authentication | IEEE 802.1x Port-based network access control AAA Authentication: IPv4/IPv6 over TACACS+/RADIUS |
| SNMP MIBs | RFC-1213 MIB-II IF-MIB RFC-1493 Bridge MIB RFC-1643 Ethernet MIB RFC-2863 Interface MIB RFC-2665 Ether-Like MIB RFC-2674 Extended Bridge MIB RFC-2819 RMON MIB (Group 1, 2, 3 and 9) RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB RFC-2933 IGMP-STD-MIB RFC-3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB |
| Management Functions | |
| System Configuration | Console, Telnet, SSH, Web browser, SSL, SNMPv1, v2c and v3 |
| Management | Supports the unit for IPv4/IPv6 HTTP and SSL Supports the user IP security inspection for IPv4/IPv6 SNMP Supports MIB and TRAP Supports IPv4/IPv6 FTP/TFTP Supports IPv4/IPv6 NTP Supports RMOM 1, 2, 3, 9 four group Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password Supports IPv4/IPv6 SSH The right configuration for users to adopt RADIUS servers shell management Supports the function for timing-reset bases needs Supports CLI, Console (RS232), Telnet Supports SNMPv1/v2c/v3 Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area Supports TACACS+ |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3ba 40GBASE-LR4 IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Weight | 5 kg |
|---|---|
| Dimensions | 10 × 40 × 50 cm |
