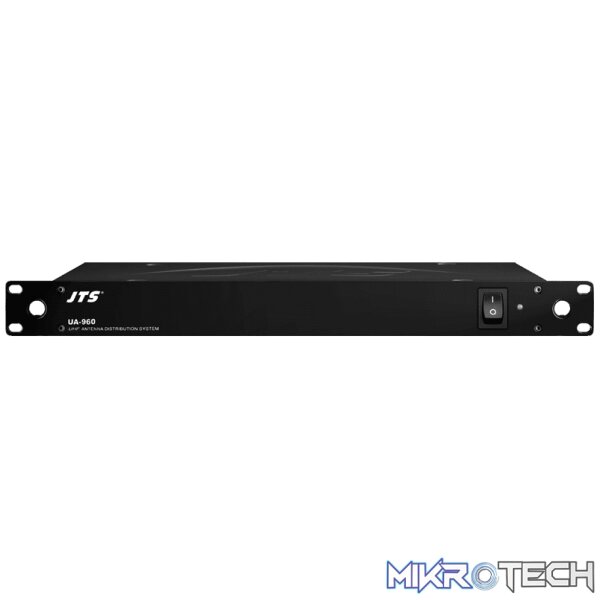

Jts – Ua-960 Uhf Full Range Antenna Splitter

The JTS UA-960 is a full range UHF antenna splitter that routes antenna signals from a pair of
antenna to several receivers in a multi-channel system. The UA-960 also amplifies the RF signals to compensate the loss incurred from splitting signal power. Bulit-in DC distribution provides four DC 12V power supply for receivers. A single UA-960 can support up to four wireless receiver. Multiple UA-960 can be cascaded for more wireless receivers. * 1 extra BNC socket that can be easily cascaded with another antenna distributor.

FEATURES:

• For operating up to four UHF PLL receivers of the UF/US/IN series with one pair of antennas
• With this device, it is not longer required to use the respective antennas and plug-in power supplies of the individual devices
• Frequency range: 470-960 MHz
• Power supply via four low-voltage outputs (4 x DC 12 V/1 A max.)
• Each antenna to be connected via BNC jacks
• Additional connection for cascading further antenna splitters
• Supplied with suitable connection cables
• Power supply for optional antenna booster UB-900I directly via UA-960 (can be deactivated internally)

SPECIFICATIONS:

• Frequency range :
  470-960 MHz
•
  Channels :
  4
•
  Connection :
  BNC
•
  Active/passive :
  active
•
  Power supply :
  100-240 V/50-60 Hz/60 W
•
  Dimensions :
  482 x 45 x 250 mm, 1 RS
•
  Weight :
  2.15 kg
