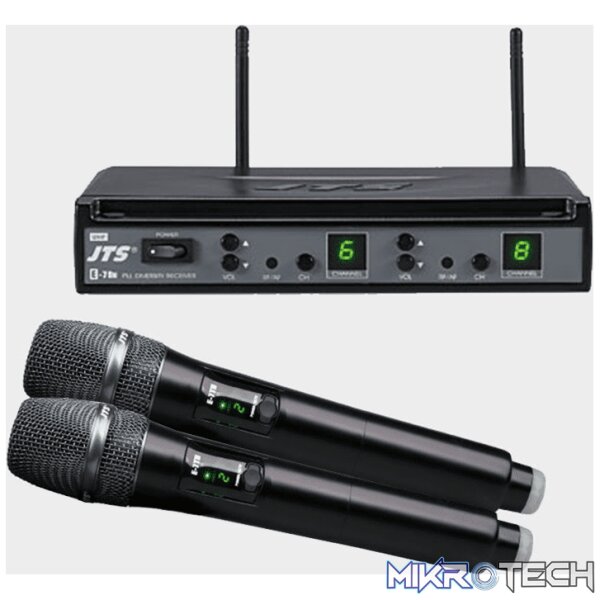

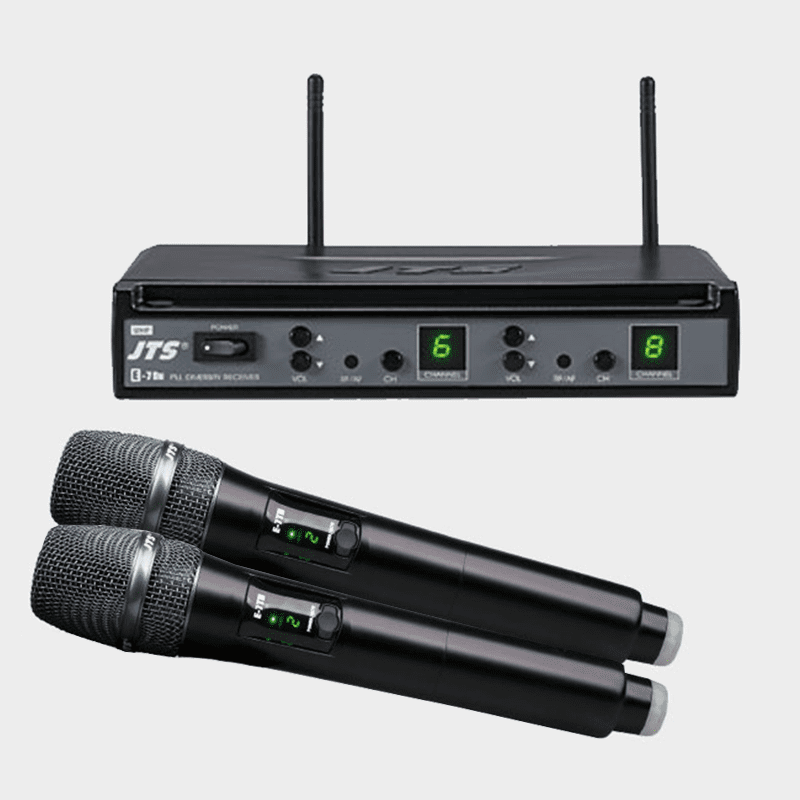

Jts – E-7Du/E-7Th X2 – Dual Handheld Diversity Uhf Mic614-650Mhz

The E-7R / E-7RT / E-7Du / E-7DuT wireless microphone system is of latest wireless circuit design. It provides 16 selectable channels. Stable RF link and good audio performance are assured. 7 segments display makes operation easy. The system is of very affordable price.

FEATURES:

• 16 Selectable channels
• PLL synthesized control
• Advanced circuitry ensures stable signal transmission
• Noise mute and Tone-key squelch
• Extended dynamic range and smooth frequency response
• Internal antenna design

SPECIFICATIONS:

• Frequency Preparation :
  PLL Synthesized Control
•
  Carrier Frequency Range:
  470~960 MHz
•
  S/N Ratio :
  >100dB
•
  T.H.D. :
  <0.6%@1KHz
•
  Display Contents:
  Channel, RF/AF Status
•
  Controls:
  Power On/Off, Channel Selecting, Audio Level
•
  Audio Output Level:
  -15dB
•
  AF Output Impedance:
  600?
•
  Squelch :
  Pilot Tone & Noise Mute
  Operation Voltage
•
  Output Connector :
  1 Ø6.3mm balanced phone jack
•
  Dimension (mm) :
  210mm(W)* 40mm(H)* 170mm(D)
•
  Stability:
  Frequency <±10KHz
•
  Deviation: :
  ±48KHz (Peak)
•
  Display Contents :
  Channel, Battery Status, Power On/Off, Mute
•
  Controls:
  Power On/Off, Channel, Mute
•
  Spurious Emissions :
  <-50 dBC
•
  Audio Frequency Response :
  50Hz~18KHz
•
  Battery:
  UM3, AA Alkaline x2
