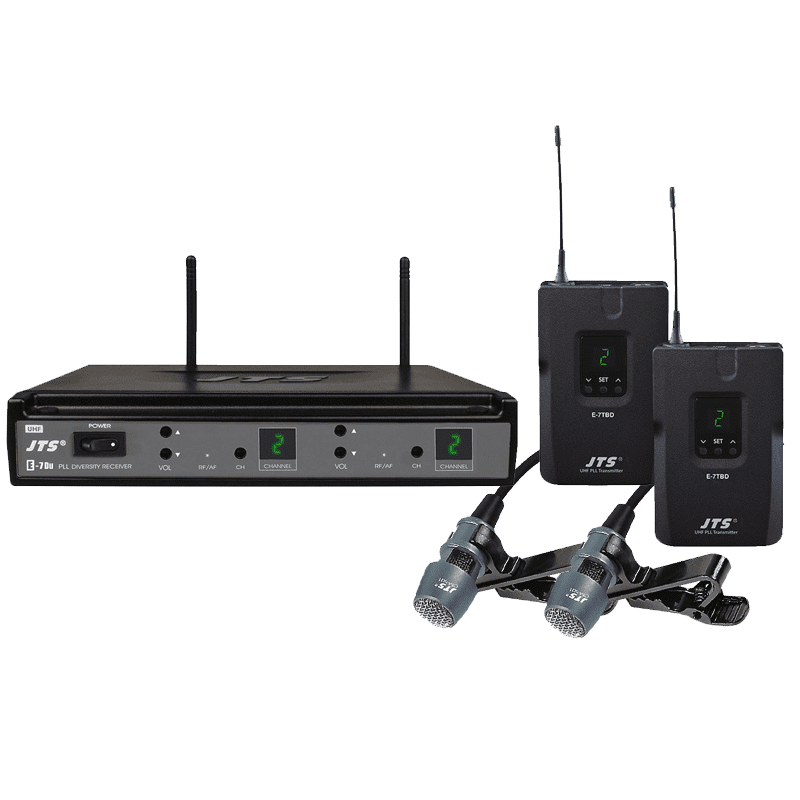

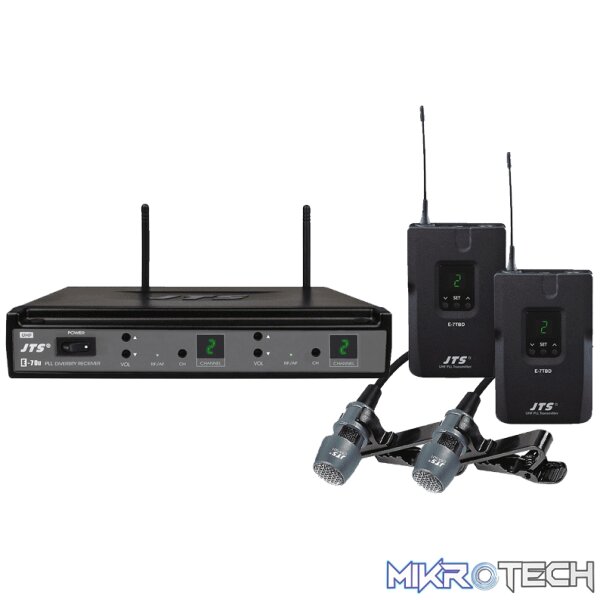

Jts – E-7Du/E-7Tb +Cm-501×2 Uhf Dual Lapel Diversity Mic 518-542 Mhz

The E-7Du wireless microphone system is of latest wireless circuit design. It provides 16 selectable channels. Stable RF link and good audio performance are assured. 7 segments display makes operation easy. The system is of very affordable price.

FEATURES:

• <div class=”tge txteinmitpkt”>

  2-channel diversity UHF PLL receiver E-7DU

• Hand-held UHF PLL condenser transmitter
• Carrier frequency range: 504-542 MHz
• For specifications, please refer to the individual items

  </div>

SPECIFICATIONS:

• Frequency Preparation :
  PLL Synthesized Control
•
  Carrier Frequency Range :
  470~960 MHz
•
  S/N Ratio :
  >100dB
•
  T.H.D. :
  <0.6%@1KHz
•
  Display :
  Contents Channel, RF/AF Status
•
  Controls :
  Power On/Off, Channel Selecting, Audio Level
•
  Audio Output Level :
  -15dB
•
  AF Output Impedance :
  600?
•
  Squelch :
  Pilot Tone & Noise Mute
•
  Operation Voltage :
  12V 150mA (E-7R) / 12V 250mA (E-7Du)
•
  Output Connector :
  1 Ø6.3mm balanced phone jack
•
  Dimension :
  (mm) 210mm(W)* 40mm(H)* 170mm(D)
