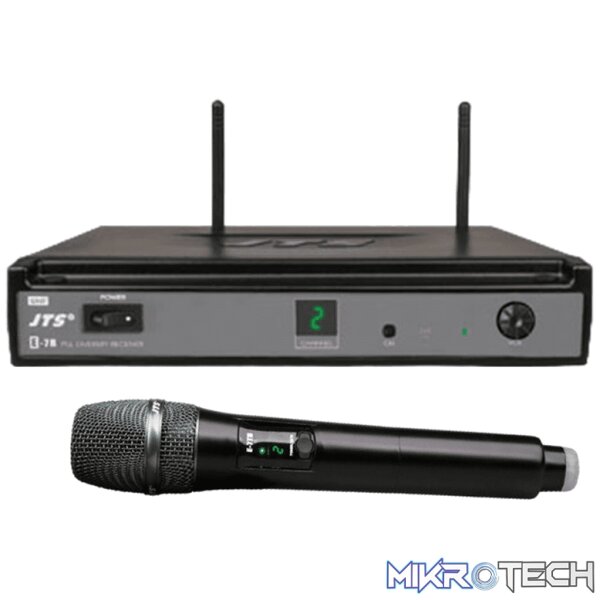

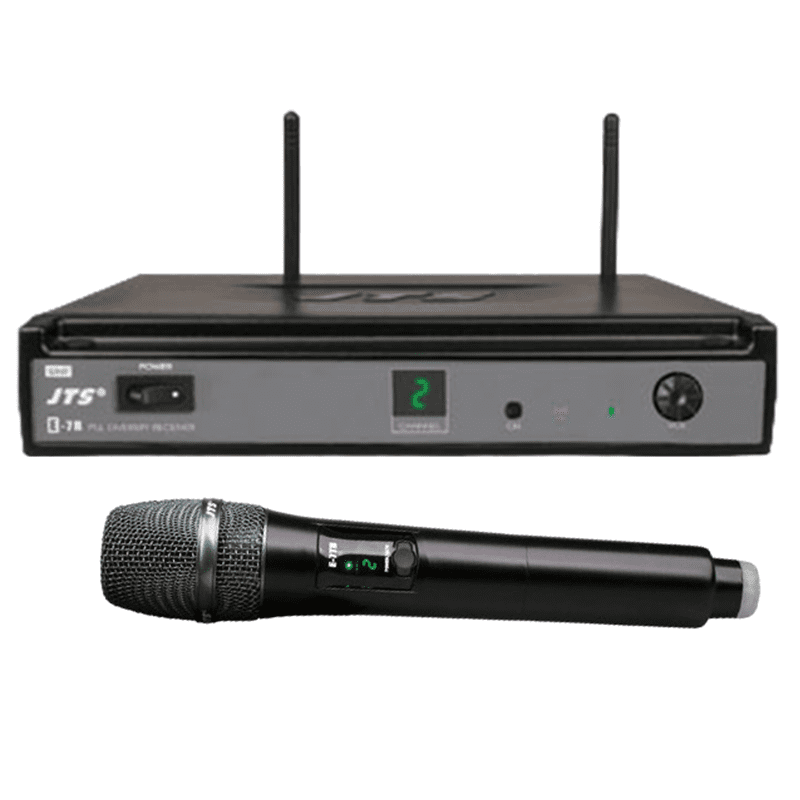

Jts – E-7R/E-7Th Handheld Diversity Uhf Mic 518-542 Mhz

The E-7R wireless microphone system is of latest wireless circuit design. It provides 16 selectable channels. Stable RF link and good audio performance are assured. 7 segments display makes operation easy. The wireless microphone system is ideal for the budget conscious consumer.

FEATURES:

• 16 Selectable channels
• PLL synthesized control
• Advanced circuitry ensures stable signal transmission
• Noise mute and Tone-key squelch
• Extended dynamic range and smooth frequency response
• Internal antenna design

SPECIFICATIONS:

• Frequency Preparation:
  PLL Synthesized Control
•
  Carrier Frequency Range:
  518~512 MHz
•
  S/N Ratio :
  >100dB
•
  T.H.D.:
  <0.6%@1KHz
•
  Display Contents:
  Channel, RF/AF Status
•
  Controls:
  Power On/Off, Channel Selecting, Audio Level
•
  Audio Output Level:
  -15dB(br)
  AF Output Impedance
•
  Squelch:
  Pilot Tone & Noise Mute
•
  Operation Voltage:
  12V 150mA (E-7R) / 12V 250mA (E-7Du)
•
  Output Connector:
  1 Ø6.3mm balanced phone jack
•
  Dimension (mm):
  210mm(W)* 40mm(H)* 170mm(D)
•
  Frequency Preparation:
  PLL Synthesized Control
•
  Stability:
  Frequency <±10KHz
•
  Deviation::
  ±48KHz (Peak)
•
  Display Contents:
  Channel, Battery Status, Power On/Off, Mute
•
  Controls:
  Power On/Off, Channel, Mute
•
  Spurious Emissions:
  <-50 dBC
•
  Audio Frequency Response:
  50Hz~18KHz
•
  Battery:
  UM3, AA Alkaline x2
