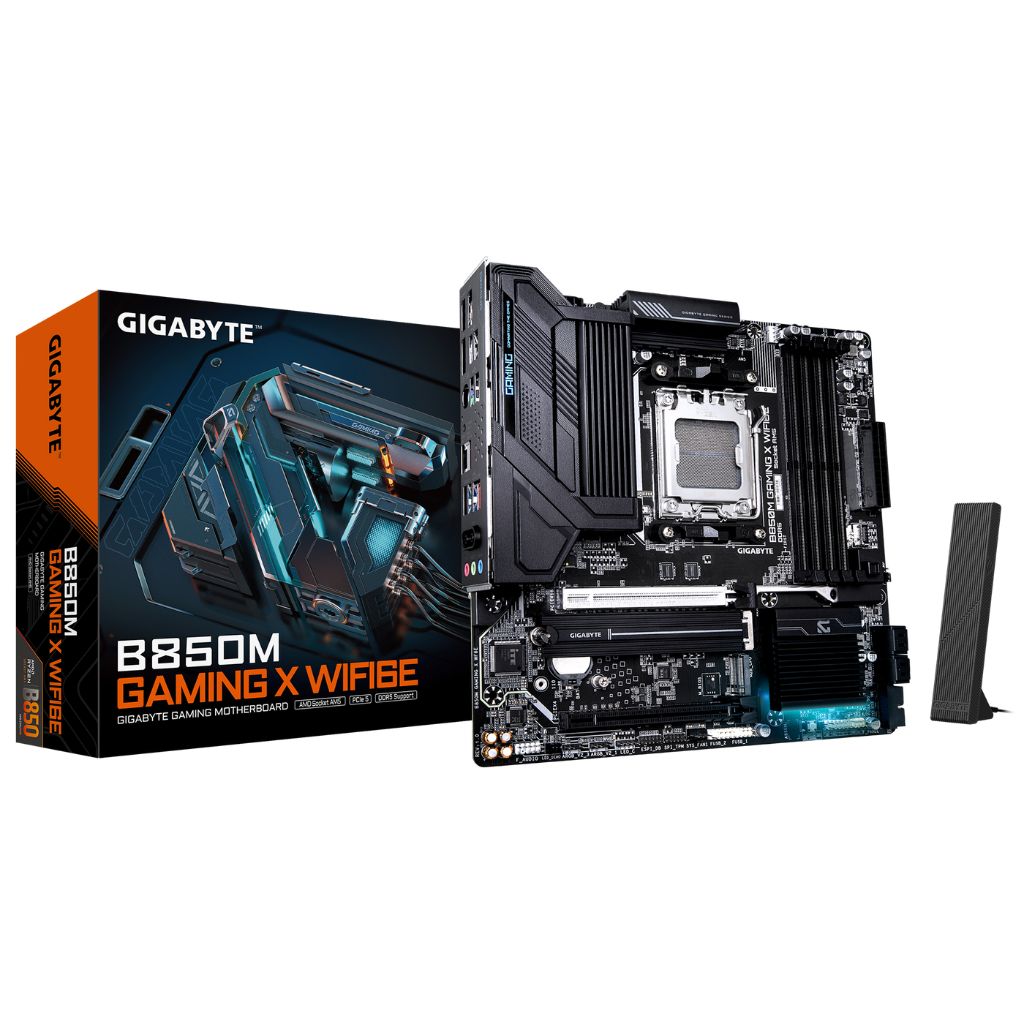

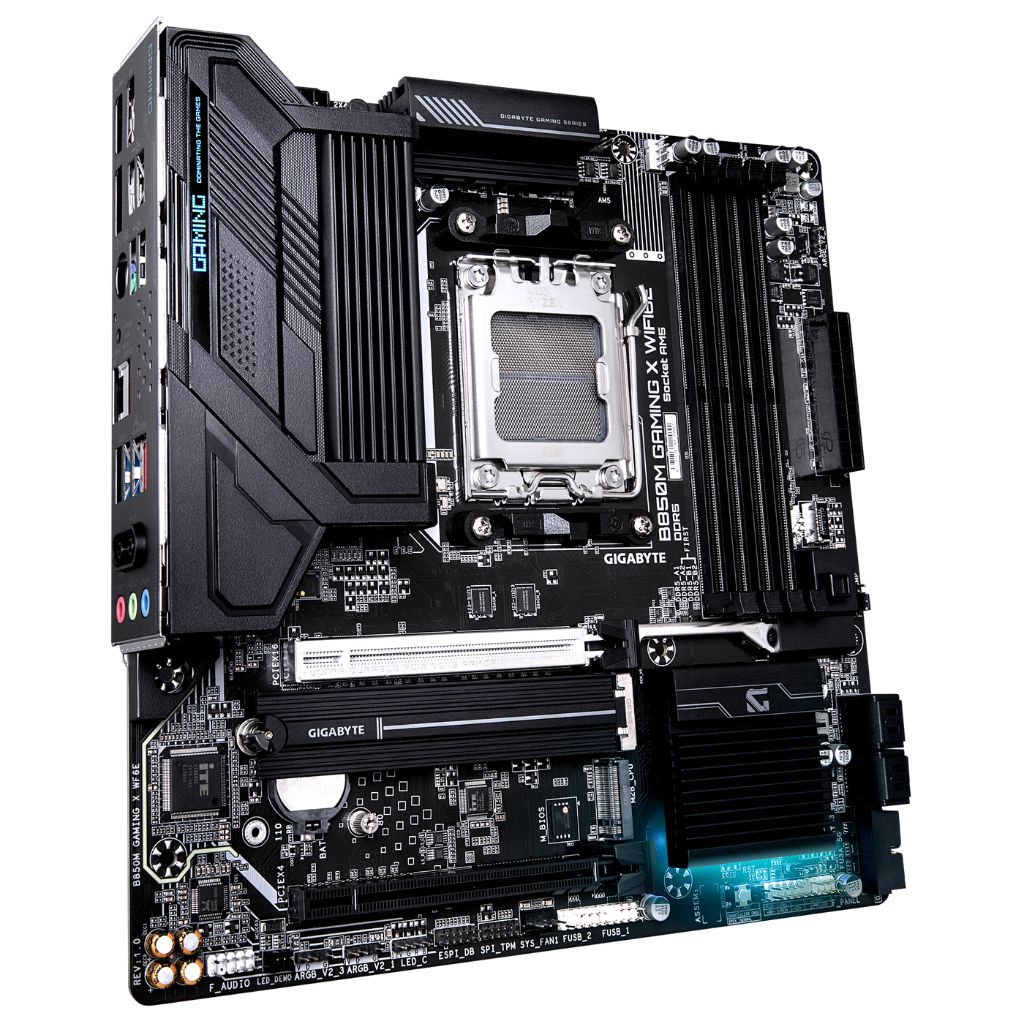

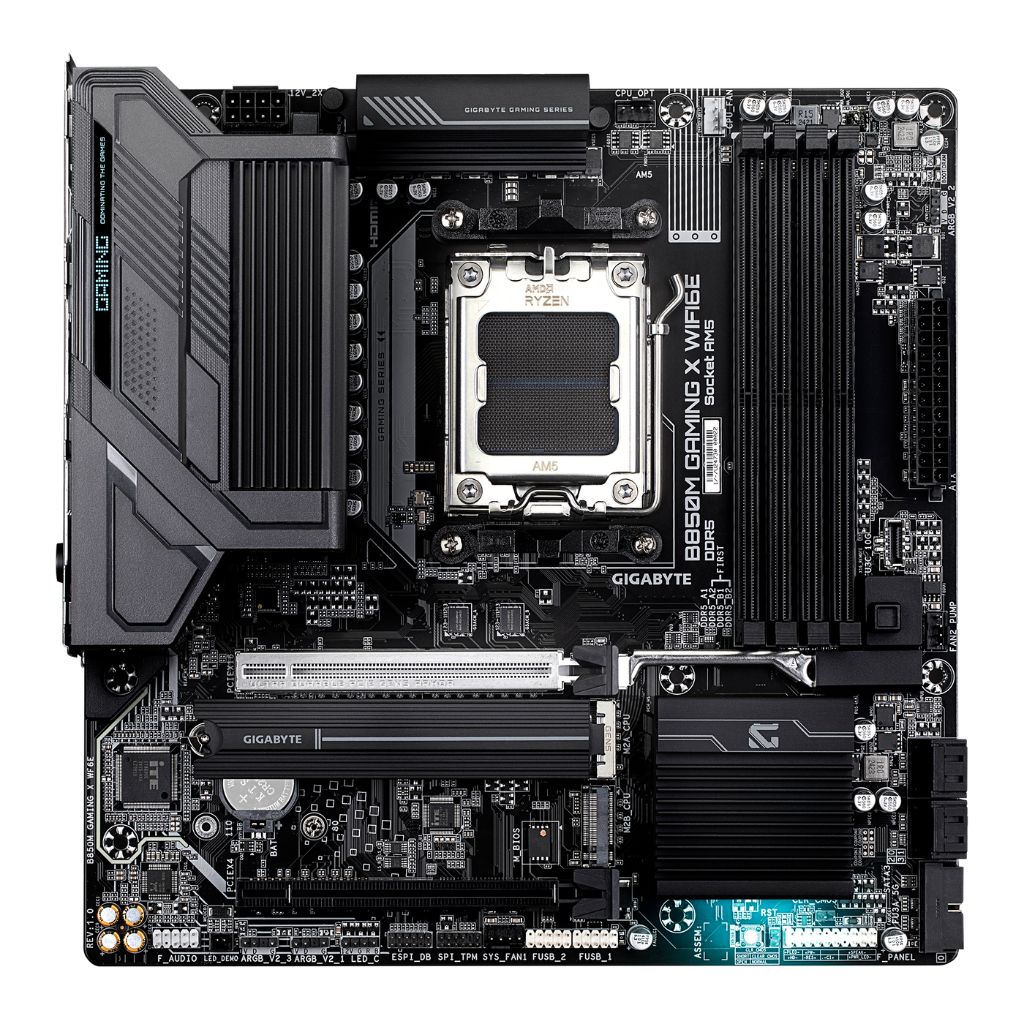

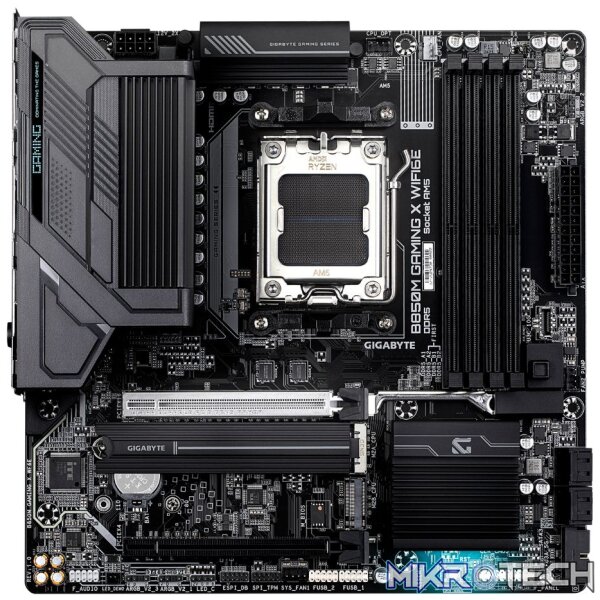

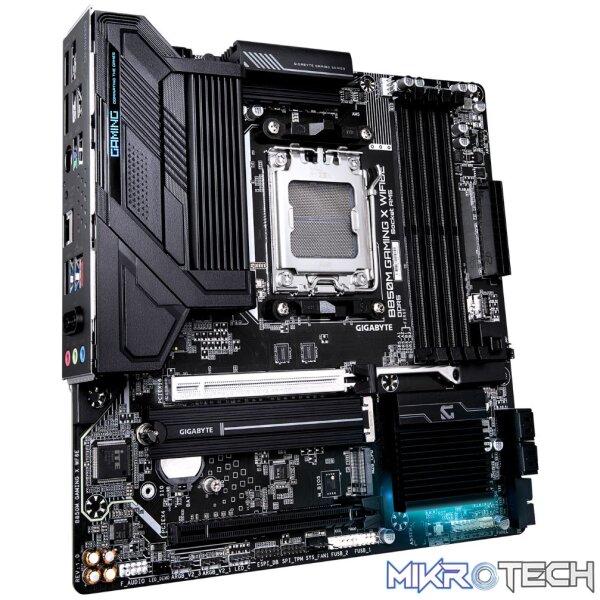

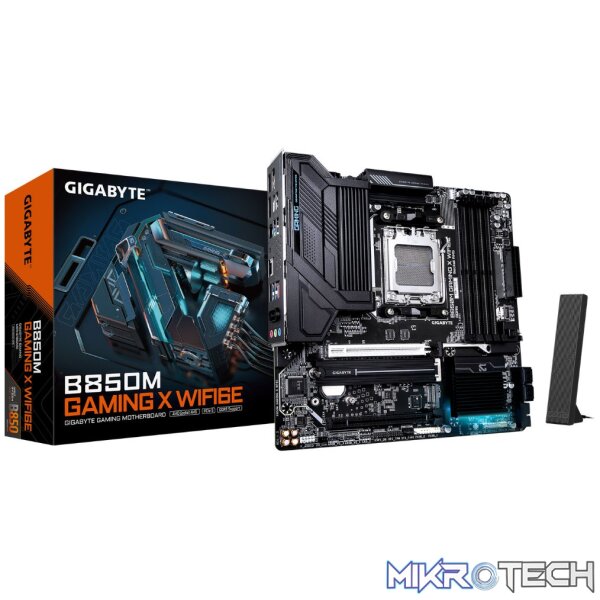

Gigabyte B850M Gaming X WIFI6E AMD B850 Ryzen Socket AM5 Micro ATX Motherboard
R4,489.99 incl. VAT
Only 7 left in stock
KEY FEATURES:
– Socket Socket AM5, AMD B850 Chipset
– Supports Ryzen 7000 / 8000 / 9000 Series Processors
– 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8200
– 1 x PCIe 5.0 x16 Slot
– 1 x PCIe 3.0 x1 Slot
– 1 x M.2 PCIe 5.0 NVMe Slot
– 1 x M.2 PCIe 4.0 NVMe Slot
– 4 x SATA 3.0 Ports, Supports RAID 0 / 1 / 5 / 10
– 2.5Gbps LAN & Wi-Fi 6E
– 1 x HDMI 2.1, 2 x DisplayPort 1.4
– 1 x Rear USB Type-C 10Gb/s
– 1 x Rear USB Type-A 10Gb/s, 2 x Rear USB Type-A 5Gb/s
– Micro ATX
– 3 Year Warranty
Description
Gigabyte B850M Gaming X WIFI6E AMD B850 Ryzen Socket AM5 Micro ATX Motherboard
GA-B850M-GAMING-X-WF6E
BRAND NEW GAMING EXPERIENCE
X3D Turbo Mode
Unleash New Era Gaming Performance with One-Click Activation.
X3D Turbo Mode’s unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE’s BIOS innovation- X3D Turbo Mode.
One-Click Acceleration:
Enhance Gaming FPS Performance with a single click.
ENHANCED UP TO 18%*
*Performance enhancement depends on the game.
MEMORY
Infinite Memory Performance
Elite Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Please refer to the Qualified Vendor List (QVL) for details and note that product features may vary by model.
Memory overclocking and XMP/EXPO support can vary based RAM selection.
Sturdy VRM Design
Steady Power
Elite Series with steady power keeps your AI operation smooth.
Cooling
Comprehensive Thermal
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Easy & Friendly
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a smooth process.
- WIFI EZ Plug This design integrates both WiFi Antenna Plugs into and EZ to install port
- EZ Latch Design User friendly design simplifies assembly
- M.2 EZ-Latch Click Screwless installation for M.2 heatsinks
- M.2 EZ-Latch Plus Screwless installation for M.2 SSDs
- PCI-E EZ-Latch Plus 1 click ejection of your Graphics Card
- Fast Action Controls Handy – Revert – Refresh
- Sensor Panel Link EZ Sensor Panel Data Integration
CONNECTIVITY
FUTURE CONNECTIVITY
Enable the ultimate connection experience with blazing data-transfer speeds via the next generation network, storage, and Wi-Fi.
All Round Acceleration:
- 2.5GbE LAN
- WiFi 7 (802.11be) & Bluetooth v5.4
Immersive Audio
- True High Fidelity Music via Audiophile-Grade Capacitors
- Audio Noise Guard
ULTRA DURABLE™
Born From Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform thatÂ’s not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.
TAILORED COMPUTING
Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.
Additional Information:
Compatibility
Supports AMD Ryzen™ 9000, 8000, 7000 Series Desktop Processors For Socket AM5
System Requirements
Operating System Support:
- Windows® 11, 64 bit (Requires Update 22H2 or later)
- Windows® 10, 64 bit (Requires latest Update)
WiFi Support:
- WiFi 6E: Requires Windows® 11, 64 bit with Update 22H2 or later
- WiFi 6: Requires Windows® 10, 64 bit with latest Update
Specifications
| Make and Model | GIGABYTE B850M GAMING X WIFI6E Motherboard |
|---|---|
| Part Number | B850M GAMING X WIFI6E |
| Windows® Support | Windows® 11, 64 bit (Requires Update 22H2 or later) Windows® 10, 64 bit (Requires latest Update) |
| Chipset | AMD B850 Chipset |
| CPU Socket | AMD Socket LGA-1718 |
| CPU Support | Supports AMD Ryzen™ 9000, 8000, 7000 Series Desktop Processors For Socket AM5 |
| Memory | 4x DDR5 DIMM RAM Sockets support up to 256GB (4x 64GB) of System Memory Supports Overclocked DDR5-8200 / 8000 / 7950 / 7900 / 7800 / 7600 / 7400 / 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 memory modules Supports Stock Clocked DDR5-5200 / 4800 / 4400 memory modulesDual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules Support for AMD Extended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support*: 2x DisplayPort v1.4 ports w/ HDR, HDCP 2.3 supports up to 3,840 x 2,160 @ 144Hz 1x HDMI v2.1 port, supports up to 4,096 x 2,160 @ 60Hz *Graphics output support varies depending on your CPU |
| Expansion Slots | AMD Ryzen™ 9000 / 7000 Series Processors: PCIEX16: 1x PCIe 5.0 x16 Card Slot PCIEX4: 1x PCIe 3.0 x16 slot, running at PCIe 3.0 x4 AMD Ryzen™ 8000 Series Phoenix 1 Processors: PCIEX16: 1x PCIe 4.0 x8 Card Slot PCIEX4: 1x PCIe 3.0 x16 slot, running at PCIe 3.0 x4AMD Ryzen™ 8000 Series Phoenix 2 Processors: PCIEX16: 1x PCIe 4.0 x4 Card Slot PCIEX4: 1x PCIe 3.0 x16 slot, running at PCIe 3.0 x4 |
| Storage | 2x M.2 slots: AMD Ryzen™ 9000 / 7000 Series Processors*: M2A_CPU: 1x M.2 PCIe 5.0 x4 Socket 3, M key, type 25110 / 22110 / 2580 / 2280 M2B_CPU: 1x M.2 PCIe 4.0 x4 Socket 3, M key, type 25110 / 22110 / 2580 / 2280 AMD Ryzen™ 8000 Series-Phoenix 1 Processors*: M2A_CPU: 1x M.2 PCIe 4.0 x4 Socket 3, M key, type 25110 / 22110 / 2580 / 2280 M2B_CPU: 1x M.2 PCIe 4.0 x4 Socket 3, M key, type 25110 / 22110 / 2580 / 2280AMD Ryzen™ 8000 Series-Phoenix 2 Processors*: M2A_CPU: 1x M.2 PCIe 4.0 x4 Socket 3, M key, type 25110 / 22110 / 2580 / 2280 M2B_CPU: 1x M.2 PCIe 4.0 x2 Socket 3, M key, type 25110 / 22110 / 2580 / 2280 * M.2 Drives support RAID 0, 1, 5 & 10 4x SATA III (6Gb/s) connectors** * SATA III Drives support RAID 0, 1 & 10 |
| USB | Rear USB Ports: 1x USB 3 Gen2 (10Gbps) Type-C port 1x USB 3 Gen2 (10Gbps) Type-A ports (Red) 2x USB 3 Gen1 (5Gbps) Type-A ports (Blue) 4x USB 2.0 (480Mbps) Type-A Ports (Black) Front USB Ports: 1x USB 3 Gen2 (10Gbps) Type-C port supported by 1x USB Header 2x USB 3 Gen1 (5Gbps) Type-A ports supported by 1x USB Header 4x USB 2 (480Mbps) Type-A ports supported by 2x USB Headers |
| LAN | Realtek® 2.5Gb Ethernet Chipset: 1x RJ45 2.5Gb Ethernet LAN port |
| Wi-Fi | Realtek® Wi-Fi 6E RTL8852CE Chipset: Tri-Band Wi-Fi 6E* (802.11ax) w/ 2.4 / 5 / 6GHz Bands WiFi 6E: Requires Windows® 11, 64 bit with Update 22H2 or later |
| Bluetooth | Realtek® Wi-Fi 6E RTL8852CE Chipset: Bluetooth v5.3* Bluetooth v5.3 use requires Windows Update 22H2 or later |
| Audio | Realtek® Audio CODEC: High Definition Audio 7.1 / 5.1 / 4 / 2 Channel Audio Support Rear Audio I/O: 3x 3.5mm Combo Audio jacksFront Panel: 1x Front Panel Audio Header |

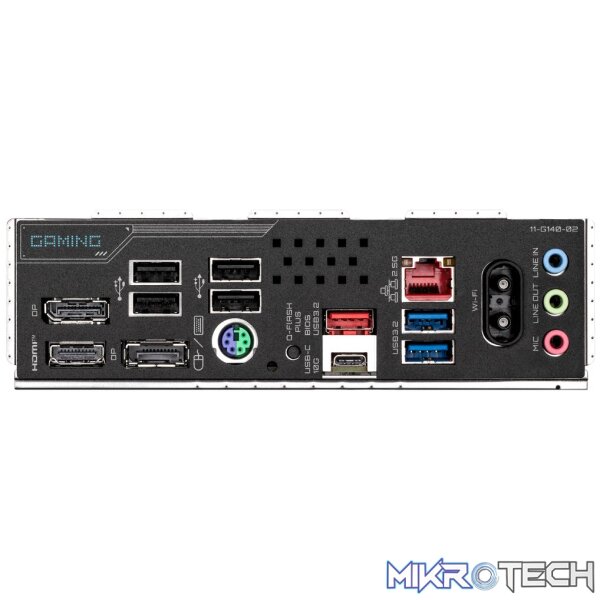

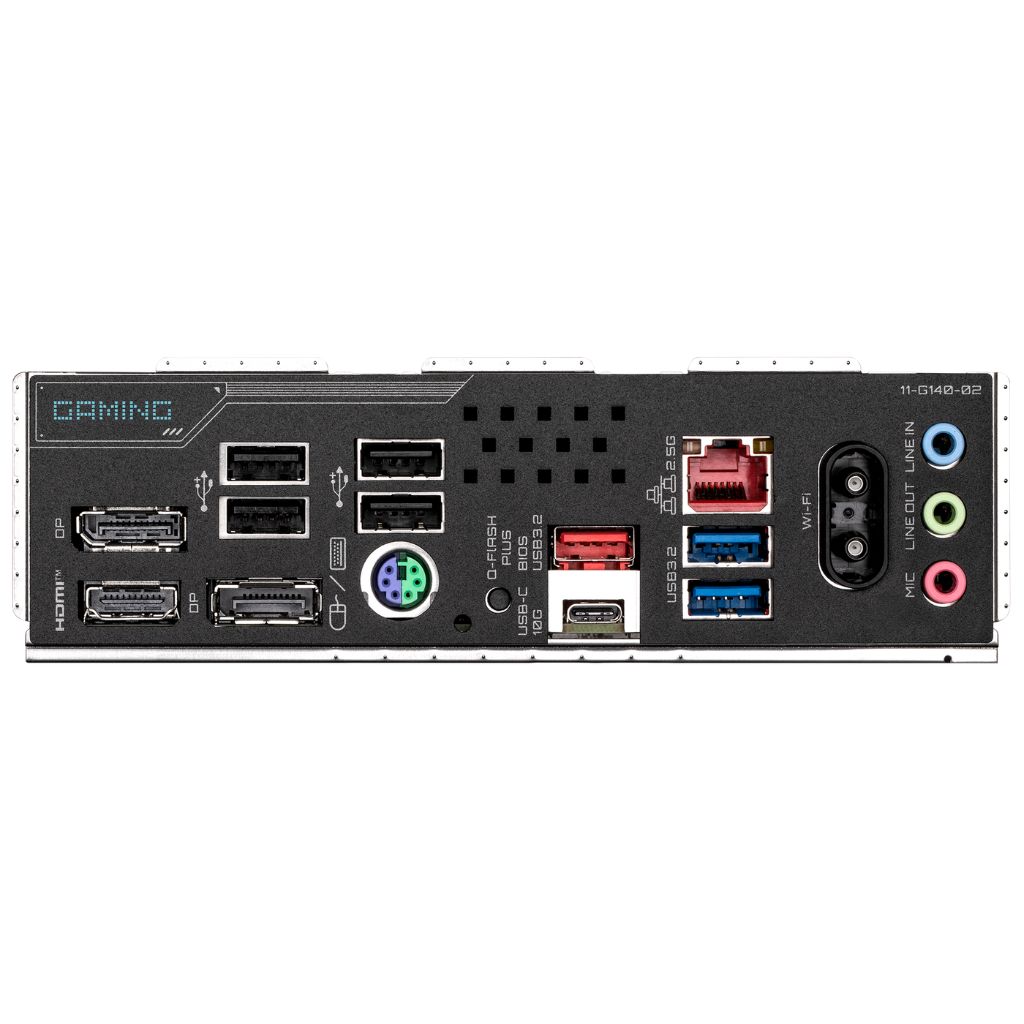

| Rear I/O Ports | 1x USB 3 Gen2 (10Gbps) Type-C port 2x USB 3 Gen2 (10Gbps) Type-A ports (Red) 5x USB 3 Gen1 (5Gbps) Type-A ports (Blue) 4x USB 2.0 (480Mbps) Type-A Ports (Black) 1x 2.5Gb RJ45 Ethernet LAN port 2x WiFi 6E Wireless Antenna Jacks2x DisplayPort v1.4 ports 1x HDMI v2.1 port 3x 3.5mm Combo Audio jacks 1x Q-Flash Plus Button |
| Internal I/O | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 1x CPU fan/water cooling pump header 1x system fan header 1x system fan/water cooling pump header3x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 4x SATA 6Gb/s connectors 2x M.2 Socket 3 connectors 1x front panel header 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| BIOS | 1x 256Mbit Flash ROM Use of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Fan Fail Warning Fan Speed Control* Fan Speed DetectionTemperature Detection Voltage Detection Water Cooling Flow Rate Detection * Whether the Fan (pump) Speed Control function is supported depends on the fan (pump) installed. |
| Unique Features | Q-Flash Q-Flash Plus Smart Backup GIGABYTE Control Center* (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Bundles Software | Norton® Internet Security (OEM version) LAN Bandwidth Management Software |
| Form Factor | Micro-ATX Form Factor |
| Dimensions | 244 x 244mm |
| Weight | N/A |
