Product Description

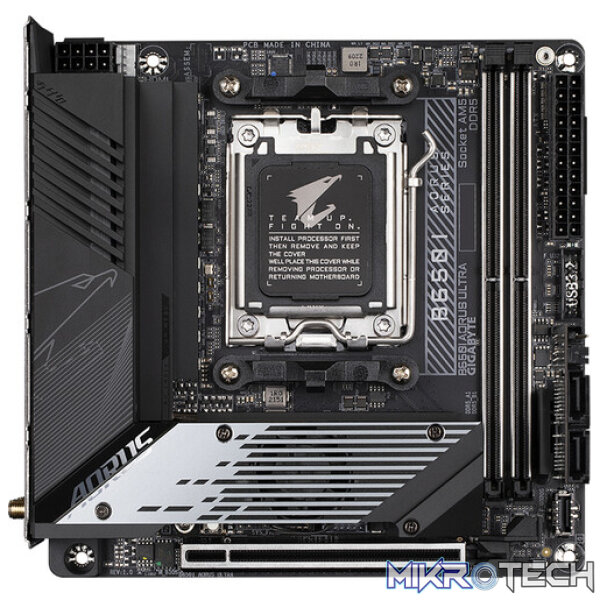

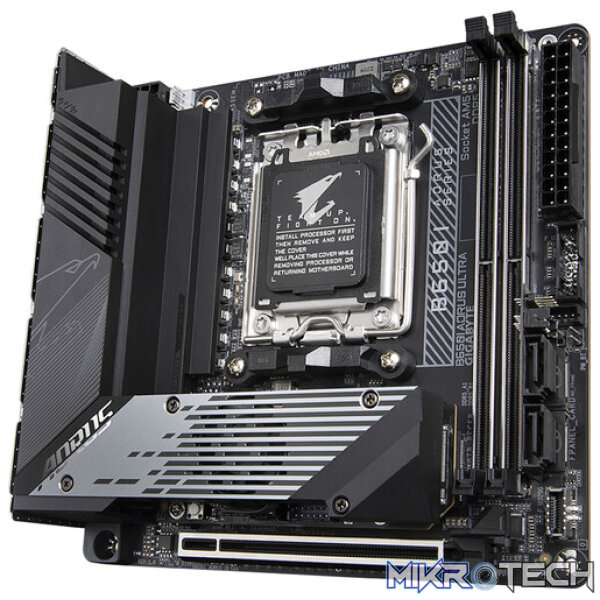

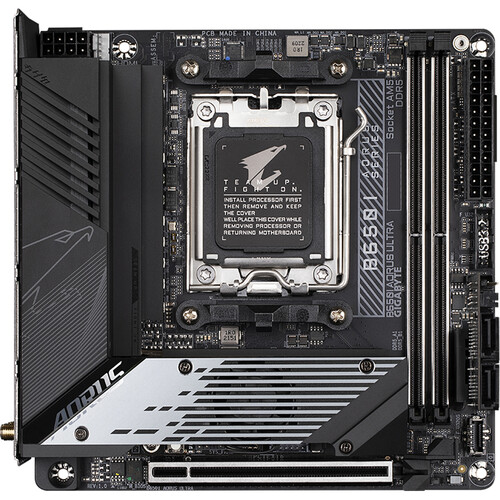

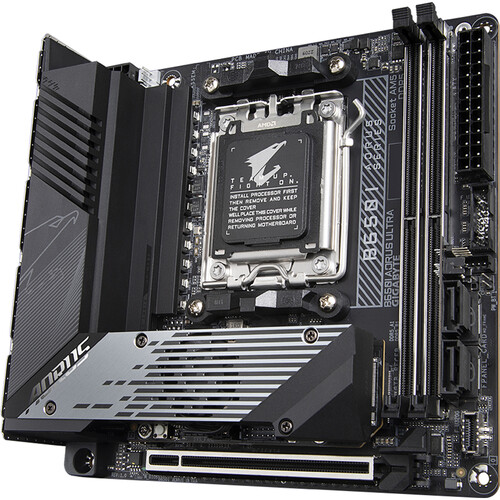

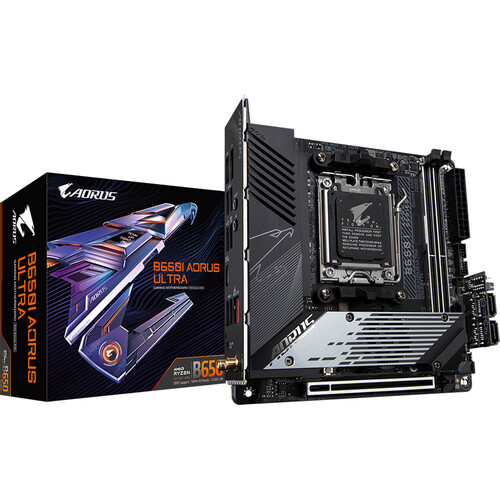

GIGABYTE B650I AORUS ULTRA AM5 AMD B650 Mini ITX Motherboard
GA-B650-I-AORUS-ULTRA
Equipped with AMDs AM5 socket and B650 chipset, you can leverage a wide range of Ryzen 7000 Series processors, enhancing performance and responsiveness. Two dual-channel DDR5 RAM slots enable you to install up to 64GB of memory to enhance multitasking and rendering speeds. Install an array of storage drives for your media assets with four SATA III and three M.2 PCIe interfaces. The AORUS ULTRA also has one PCIe 4.0 x16 expansion slot so you can equip your system with various graphics cards. Connect your low-powered peripherals such as mice, keyboards, and controllers to the AORUS ULTRA with USB-A 2.0 ports while USB 3.2 Gen 1 and Gen 2 ports are reserved for resource-demanding devices such as external drives, audio interfaces, and more. You can also use Bluetooth 5.2 technology to support wireless devices for a true cable-free experience. Quickly access online assets with Wi-Fi 6E (802.11ax) technology for wireless connectivity or use the wired 2.5 Gigabit Ethernet port for a strong and reliable connection.
Performance
Twin Digital VRM design leverages 8 VCORE phases and 105A Power Stage to ensure electrical throughput that can handle AMDs Ryzen 7000 Series processors as well as extreme overclocking. M.2 PCIe 5.0 performance enables you to experience up to 16 GB/s data transfer speeds for quicker data application runtimes and faster loading of your games. EXPO and XMP memory overclocking boosts RAM up to 6400 MHz for enhanced multitasking and rendering performance.
Connectivity Cards
Able to boast massive performance in a reduced form factor, the AORUS ULTRA doesnt skip a beat when it comes to connectivity options. The internal BTB PLUG card houses two M.2 storage slots as well as various connectivity headers. SATA storage drives can be plugged into the FRONT CARD which also offers LED connectivity options.
Enhanced Thermal Design
Designed to maintain thermal performance and prevent system throttling, the AORUS ULTRAs fully covered heat sink with 8mm heat pipe, M.2 Thermal Guard, Hybrid PCH, NanoCarbon Baseplate, and 12-layer 2x copper PCB work together to ensure that onboard components are safe under heavy loads. Smart Fan 6 application gives users the ability to monitor and operate connected fans to assist with cooling capabilities.

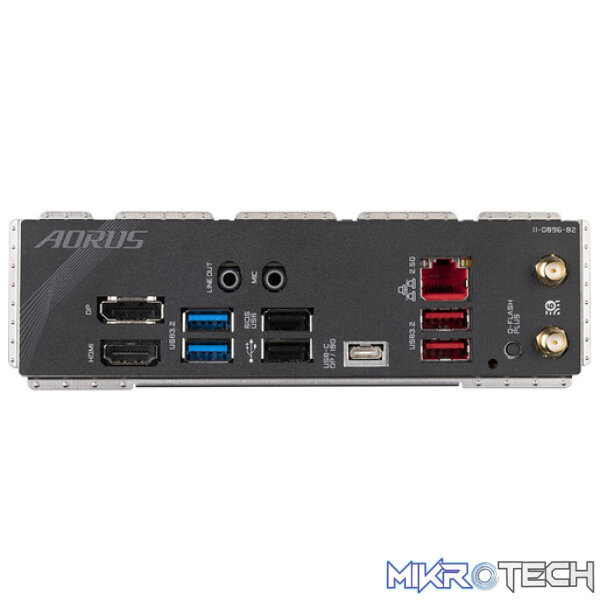

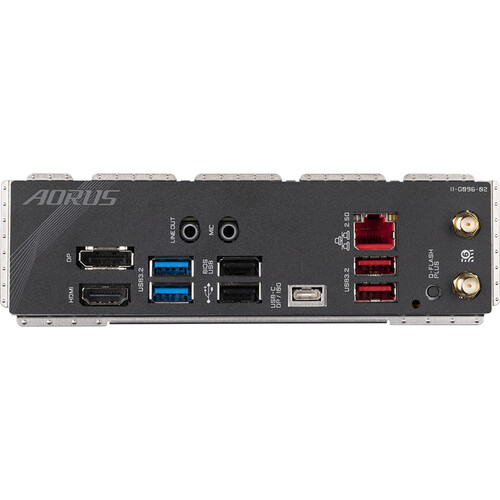

Back Panel Connectors
The back panel of the AORUS ULTRA includes two USB-A 2.0 ports for low-powered devices such as mice, keyboards, and controllers. You also get two USB-A 3.2 Gen 1 and Gen 2 ports, giving you up to 5 and 10 Gb/s data transfer speeds, respectfully, allowing you to connect external drives, audio interfaces, and more with ease. A single USB-C 3.2 Gen 2 port covers a wide range of device utility complete with 10 Gb/s data transfer speeds and DisplayPort-Alt Mode video out functionality to support various displays.
Front Panel USB-C Connector
The USB 3.2 Gen 2×2 port offers double the performance of USB 3.2 Gen 2, with a throughput up to 20 Gb/s while connected to USB 3.2 compliant peripherals. With the USB Type-C connector, users can enjoy the flexibility of a reversible connection to access and store massive amounts of data rapidly.
Personalization & Customization
With an array of RGB headers, you can use GIGABYTEs RGB Fusion and Control Center software to customize your rig with a wide range of colors and lighting effects, turning your rig into the centerpiece of your gaming room. UEFI BIOS settings can be easily accessed and allow you to fine-tune your performance profile according to your needs. A multi-key function reset button can be reconfigured to other functions within the BIOS to meet different user scenarios such as acting as an RGB switch, boot directly to BIOS, and enable Safe Mode.
Ultra-Durable
Sporting an easy DIY design, the AORUS ULTRA provides you with several enhancements that make the installation of components a breeze. PCIe EZ-Latch provides quick access to your M.2 storage drives and Q-Flash Plus enables you to update the BIOS settings with only a few power cables, RAM, and processor.
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Gaming Motherboards |
| Model | B650I AORUS ULTRA |
| CPU | AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors |
| (Please refer CPU Support List for more information.) | |
| Chipset | AMD B650 |
| Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| 2 x DDR5 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| (Please refer Memory Support List for more information.) | |
| Onboard Graphics | Integrated Graphics Processor: |
| 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz | |
| * Support for DisplayPort 1.4 version and HDR. | |
| 1 x USB Type-Cport, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz | |
| * Support for DisplayPort 1.4 version and HDR. | |
| 1 x HDMI port, supporting a maximum resolution of 7680×4320@60 Hz | |
| * Support for HDMI 2.1 version and HDCP 2.3. | |
| ** Support native HDMI 2.1 TMDS compatible ports. | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | RealtekALC4080 CODEC |
| High Definition Audio | |
| 2-channel | |
| LAN | Intel2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | AMD Wi-Fi 6E RZ616 (MT7922A22M) |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| BLUETOOTH 5.2 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| (Actual data rate may vary depending on environment and equipment.) | |
| Storage Interface | CPU: |
| 1 x M.2 connector on the front of GC-B650I BTB PLUG (Socket 3, M key, type 2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU) | |
| * Actual support may vary by CPU. | |
| 1 x M.2 connector on the back of GC-B650I BTB PLUG (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) | |
| 4 x SATA 6Gb/s connectors on the front of GC-B650I FRONT CARD | |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| USB | CPU: |
| 1 x USB Type-Cport on the back panel, with USB 3.2 Gen 2 support | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| CPU USB 2.0 Hub: | |
| 4 x USB 2.0/1.1 ports available through the F_USB header on the front of GC-B650I BTB PLUG | |
| Chipset: | |
| 1 x USB Type-Cport with USB 3.2 Gen 2×2 support, available through the internal USB header | |
| 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| 2 x USB 2.0/1.1 ports on the back panel | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 1 x system fan header (SYS_FAN1(Note 1)) | |
| 1 x addressable LED strip header(Note 2) | |
| 1 x RGB LED strip header(Note 1) | |
| 3 x M.2 Socket 3 connectors (M2B_CPU(Note 2)/M2A_CPU(Note 3)/M2C_SB(Note 4)) | |
| 4 x SATA 6Gb/s connectors(Note 1) | |
| 1 x front panel header(Note 1) | |
| 1 x front panel audio header (routed from the adapter card on the rear panel) | |
| 1 x USB Type-Cheader, with USB 3.2 Gen 2×2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 2.0/1.1 header(Note 2) | |
| 1 x reset button(Note 2) | |
| 1 x reset jumper | |
| 1 x power switch jumper | |
| 1 x Clear CMOS jumper | |
| (Note 1) The connector is on the front of GC-B650I FRONT CARD. | |
| (Note 2) The connector is on the front of GC-B650I BTB PLUG. | |
| (Note 3) The connector is on the back of GC-B650I BTB PLUG. | |
| (Note 4) The connector is on the back of the motherboard. | |
| Back Panel Connectors | 1 x DisplayPort |
| 1 x HDMI port | |
| 1 x USB Type-Cport (DisplayPort), with USB 3.2 Gen 2 support | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 2 x USB 3.2 Gen 1 ports | |
| 2 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 2 x SMA antenna connectors (2T2R) | |
| 1 x Q-Flash Plus button | |
| 2 x audio jacks | |
| I/O Controller | ITE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Bundled Software | NortonInternet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm |
| Warranty Information | |
| Warranty | 3 Year Warranty |
