Gigabyte B650M Aorus Elite AX Ice Motherboard

UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

Specifications

• CPU Support: AMD Ryzen 7000 Series Desktop Processors
• CPU Socket: AM5
• Chipset: AMD B650
• Graphics
  • 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
• Memory
  • 4 x DDR5 DIMM sockets
  • Up to 192GB
  • Speed: 4400MHz – 8000 (OC)
  • Dual channel memory architecture

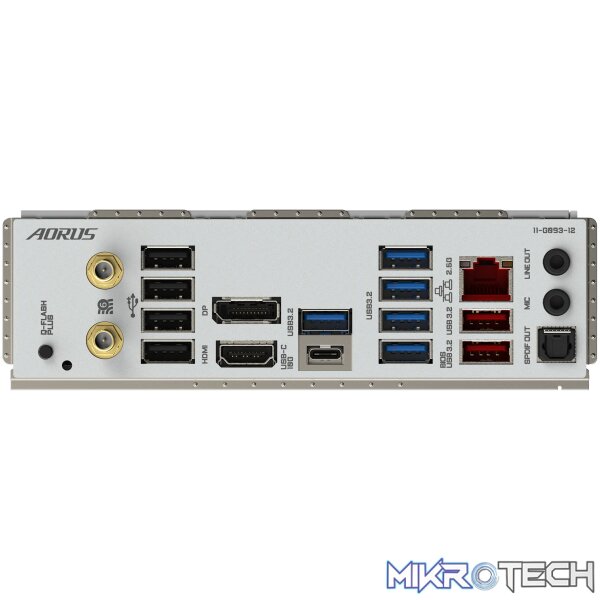

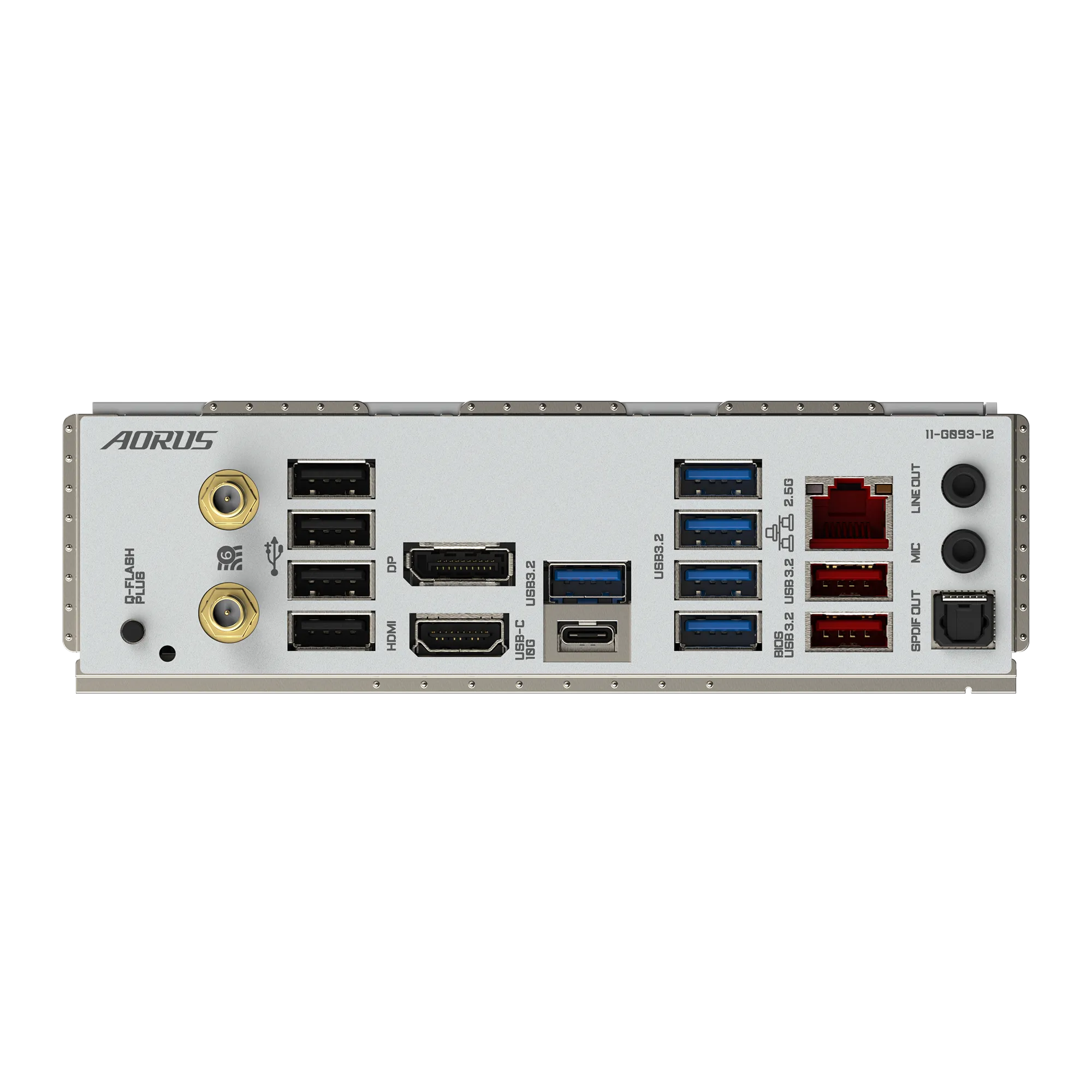

• Back Panel Connectors
  • 1 x Q-Flash Plus button
  • 2 x SMA antenna connectors (2T2R)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x USB Type-C port, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 5 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks
• Storage
  • CPU
    • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support)
    • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
  • Chipset
    • 4 x SATA 6Gb/s connectors
• LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless: Wi-Fi 6E / BLUETOOTH 5.3
• Audio
  • Realtek Audio CODEC
  • High Definition Audio
  • 2/4/5.1-channel
• Form Factor: Micro ATX Form Factor (24.4 x 24.4 cm)
• Warranty: 36 Months

Note

Please refer to full motherboard specifications on the Manufacturer’s product page
