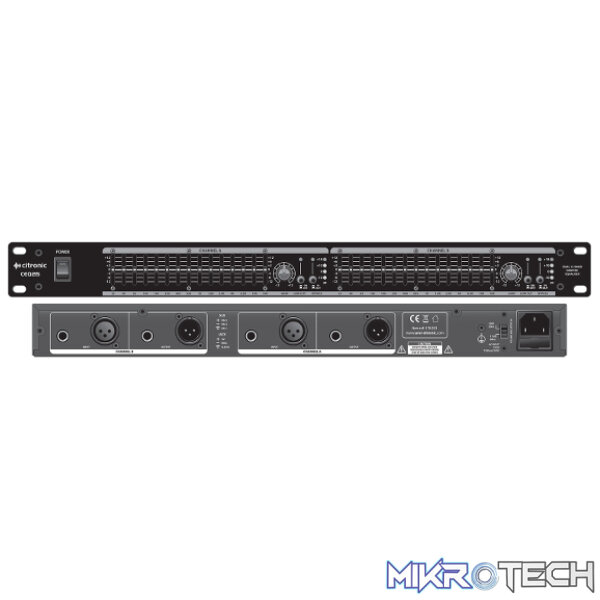

Citronic – Ceq215 Dual 15-Band Graphic Eq

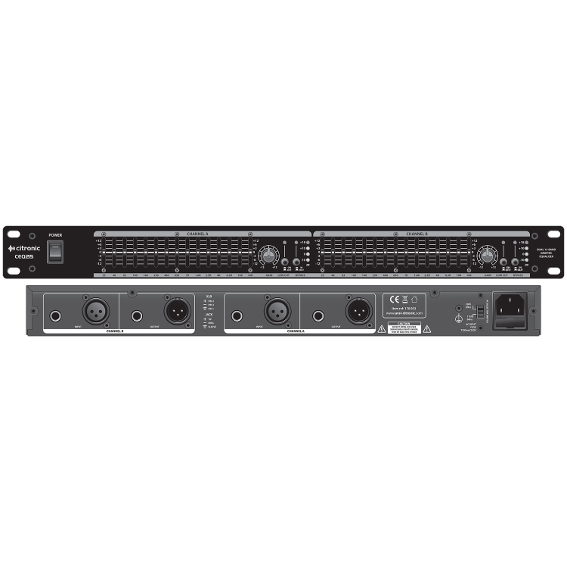

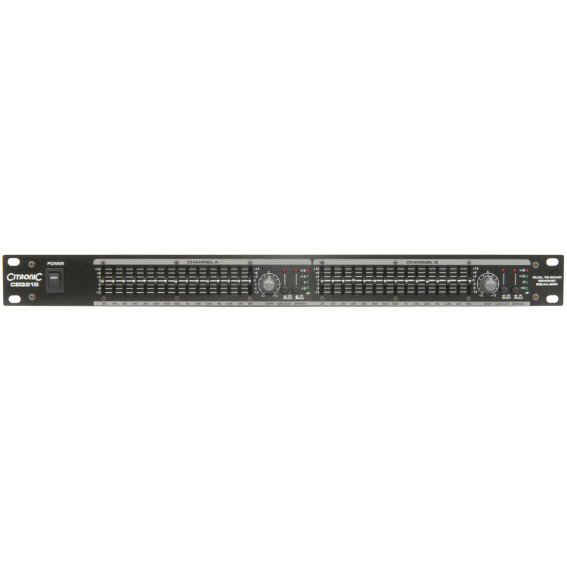

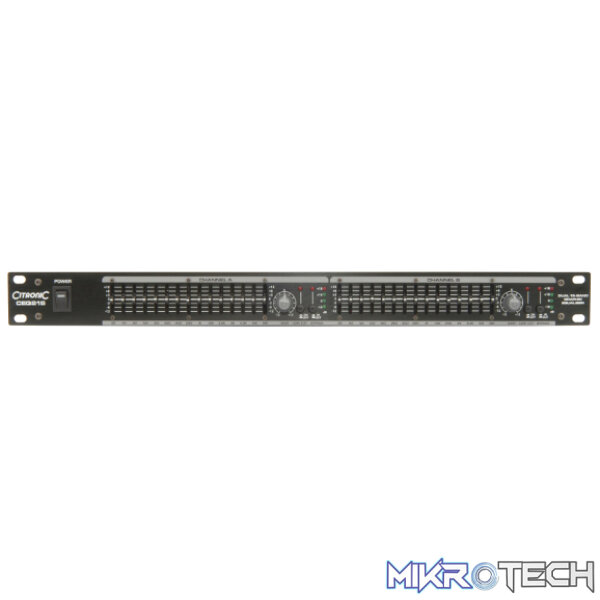

The CEQ215 is a 19? rack mounted dual 15-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 25Hz to 16kHz for accurate audio spectrum control.

FEATURES:

• 2 x 15-band 2/3 octave ISO spacing

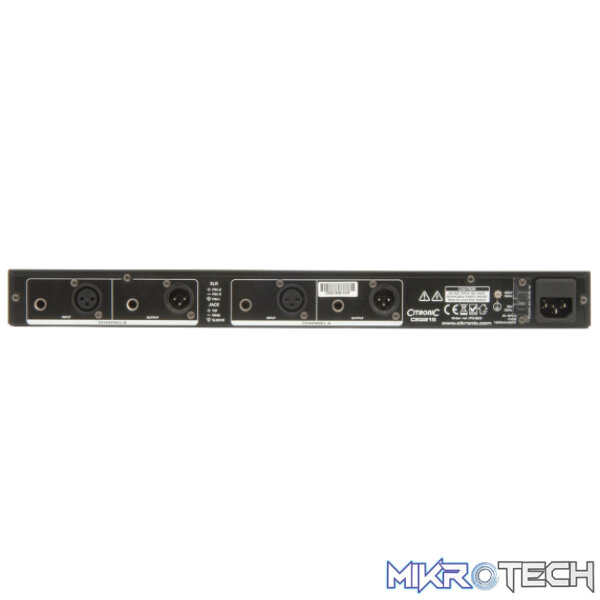

• RF filtered servo-balanced inputs
• Constant Q each band
• Bypass switch for EQ comparison
• Low-cut switch each channel
• Gain control each channel
• LED VU meters
• 19″ rackmount 1U

SPECIFICATIONS:

• Power supply:
  115/230Vac, 50/60Hz (IEC)
• Frequency response:
  20Hz-20kHz
• Input impedance : balanced:
  40k Ohms
• Input impedance : unbalanced:
  20k Ohms
• Output impedance : bal/unbal:
  330 Ohms
• Channel separation:
  >50dB
• Signal to noise ratio:
  >102dB
• THD:
  0.005%
• Dimensions:
  482 x 44 x 138mm
• Weight:
  2.0kg
