Citronic – Qtx – U-Pad Compact Music Mixer Usb Interface

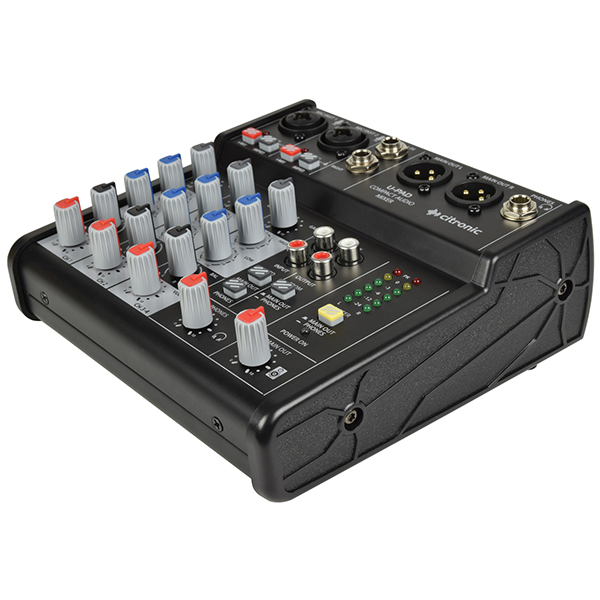

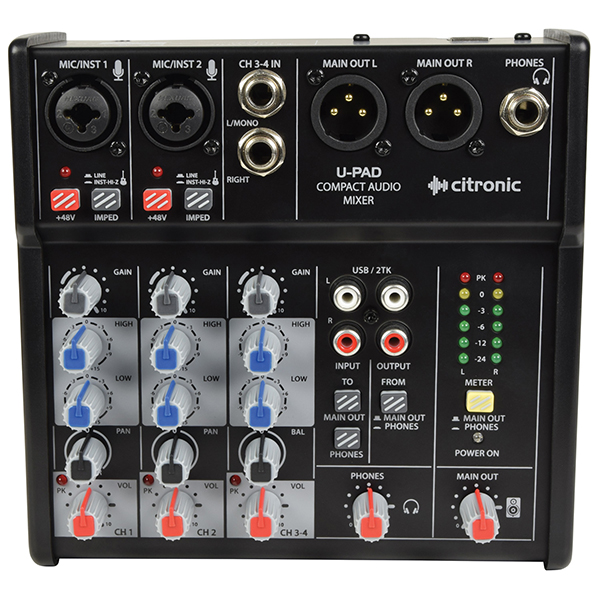

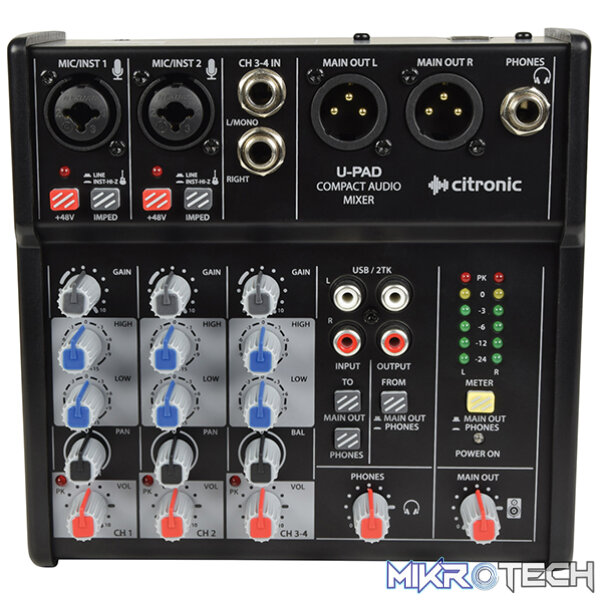

Compact audio mixer with 2 mono inputs and a stereo line input. Both mono channels have a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR connector. High/Low EQ and Pan controls are present on all mono and stereo input channels and a digital input from USB can be routed to main output or phones for monitoring. Analogue output is delivered on a pair of balanced XLR connectors and digitally to the USB for recording. When powered from a laptop USB port, the U-PAD offers high quality recording capability in any environment, even on location.

FEATURES:

• High quality digital stereo input and output via USB
• Studio quality balanced analogue inputs & outputs
• Individually switchable +48V phantom power

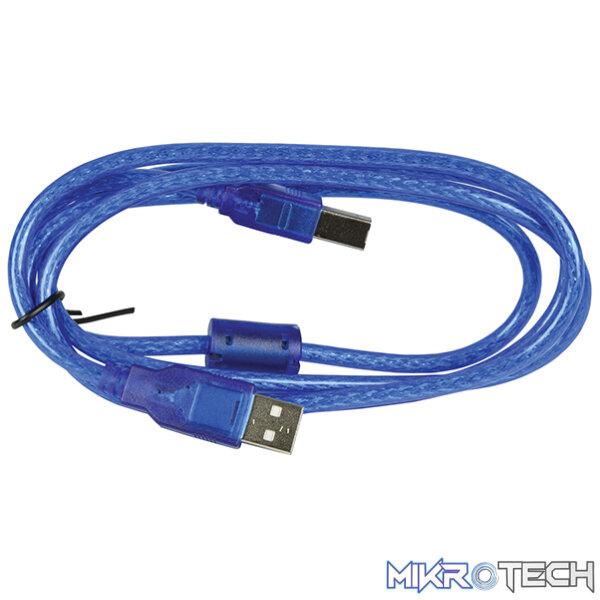

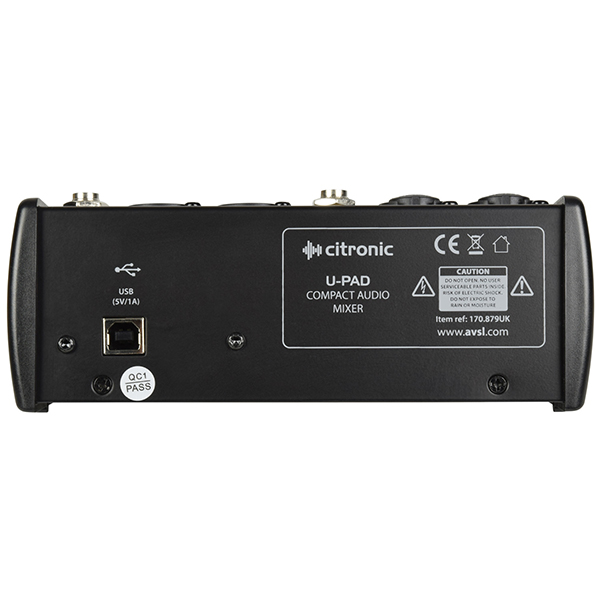

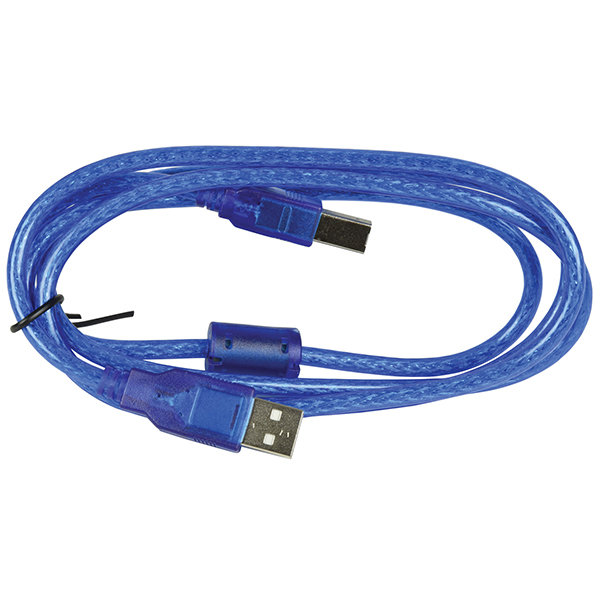

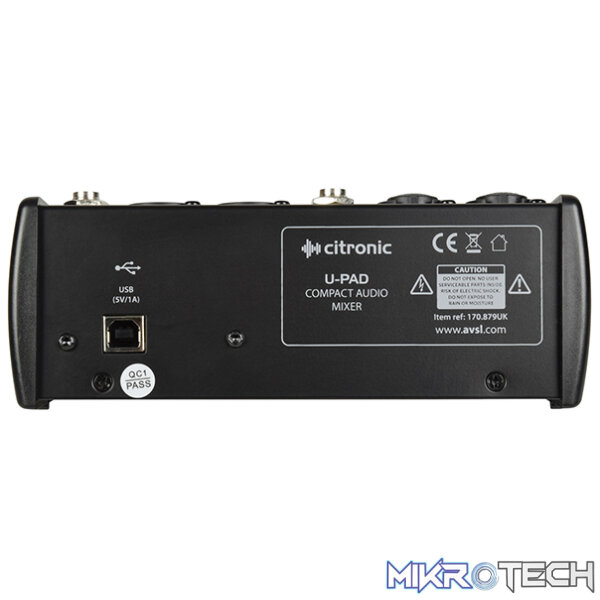

• Supplied with USB lead for power and PC/Mac connection

SPECIFICATIONS:

• Power supply:
  5.5Vdc (USB)
•
  Gain:
  -14 to +40dB
•
  EQ: low:
  ±15dB @ 80Hz
•
  EQ: high:
  ±15dB @ 12kHz
•
  Phantom power:
  +48V individually switchable (XLR inputs only)
•
  Input impedance : mic:
  2k Ohms
•
  Input impedance : instrument:
  1M Ohms
•
  Input impedance : line:
  20k Ohms
•
  Frequency response:
  20Hz – 20kHz (±0.5B)
•
  USB computer interface:
  Duplex stereo in/out AD/DA
•
  Sampling format:
  24-bit, 96kHz max
•
  THD:
  +N<0.03% @ 1kHz
•
  Dynamic range:
  102dB
•
  Crosstalk : stereo:
  92dB
•
  Output:
  Left + Right balanced XLR (analogue)
•
  Output impedance:
  120 Ohms
•

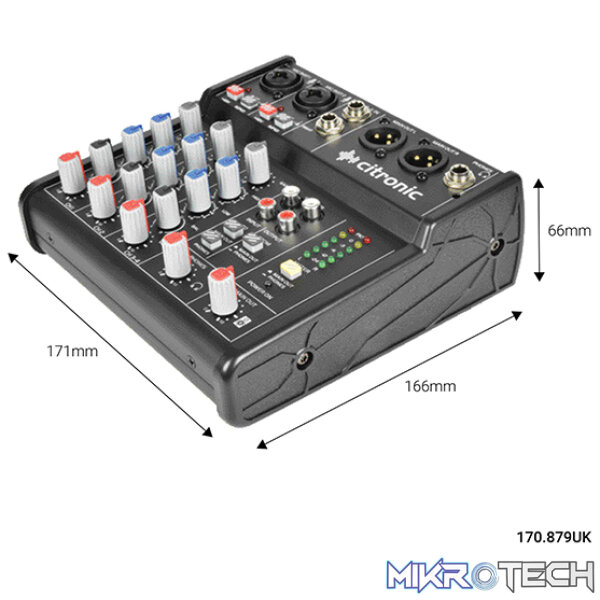

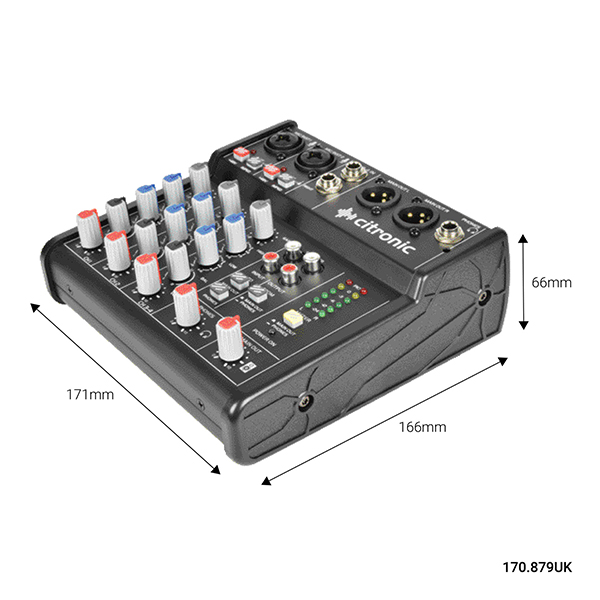

  Dimensions:
  171 x 166 x 66mm
•
  Weight:
  900g
