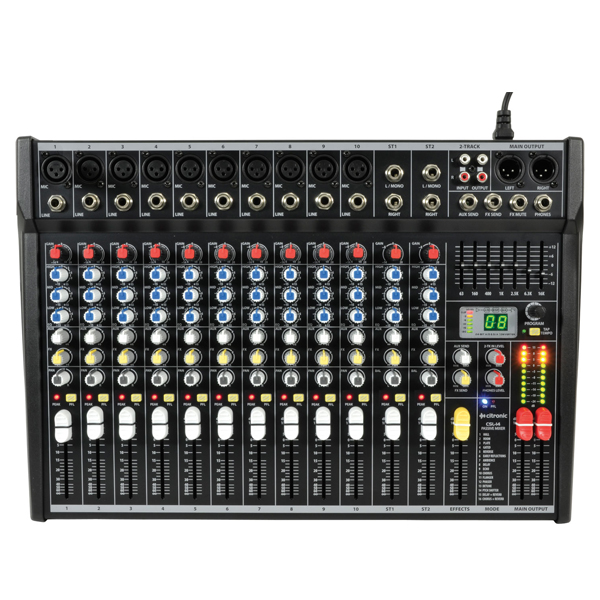

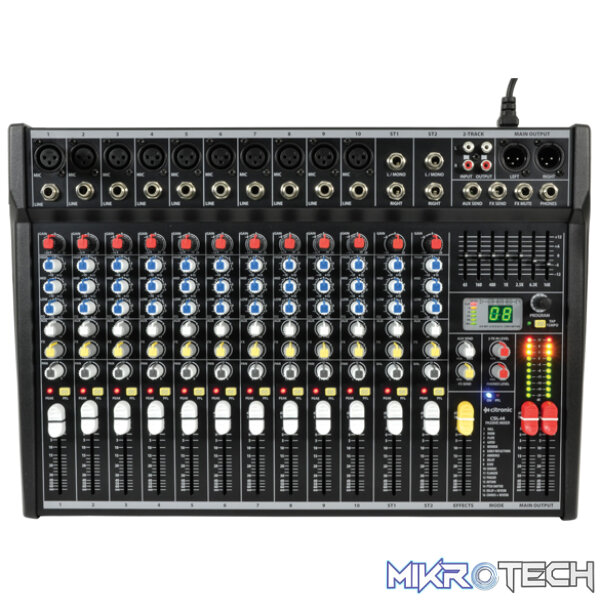

Citronic – Csl-14 Music Mixer Dsp

Compact mixing consoles with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.

FEATURES:

• 24-bit 16 program DSP effects
• 48V phantom power for XLR inputs
• 3-band EQ per channel
• 7-band global graphic EQ
• IEC mains powered
• Balanced main outputs
• 19″ rack-mounting ears available: 170.846-7-8U

SPECIFICATIONS:

• Power supply:
  230Vac, 50Hz (IEC)
•
  Phantom power:
  +48V (XLR inputs)
•
  Power consumption:
  25W
•
  Fuse:
  T1AL
•
  Input level:
  +24dBu
•
  Output level :
  line+26dBu
•
  Frequency response:
  20Hz-30kHz (0.5dB)
•
  CMRR>74dB (mic 1kHz):

•
  THD:
  +N<0.01% (channel to main out)
•
  Crosstalk:
  >85dB (fader mute), >82dB (channel)
•
  Noise rms :
  22Hz-22kHz-122dBu (EIN), -82dBu (mix)
•
  EQ: high:
  12kHz ±15dB shelving
•
  EQ: mid:
  2.5kHz ±15dB band pass
•
  EQ: low:
  80Hz ±15dB shelving
•
  Input impedance : mic (balanced):
  2k Ohms
•
  Input impedance : line (balanced):
  10k Ohms
•
  Sensitivity : mic:
  -60 to +14dBu
•
  Sensitivity : line:
  -40 to +14dBu
•
  2-track:
  2 x RCA in & out (-2dBu)
•
  Effects16 program DSP:
  (24-bit sigma-delta, 40kHz)
•
  Output impedance:
  <75 Ohms
•
  Headphone output:
  6.3mm jack, 30-600 Ohms
•
  Inputs : mic/line :
  10 x balanced XLRF/TRS jack
•
  Dimensions:
  475 x 320 x 107mm
•
  Weight:
  4.5kg
