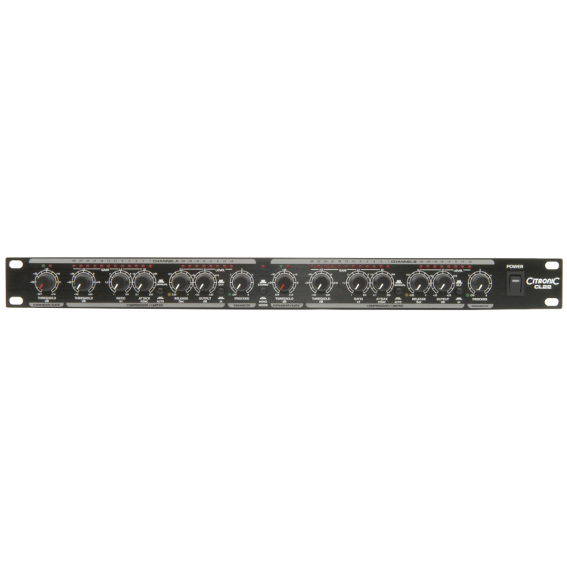

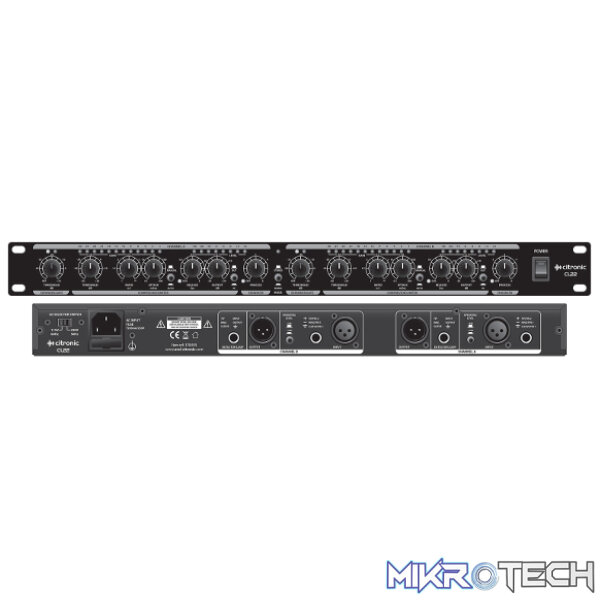

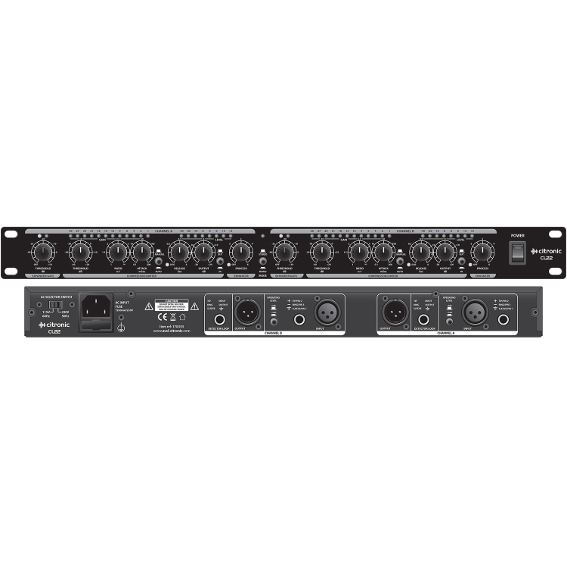

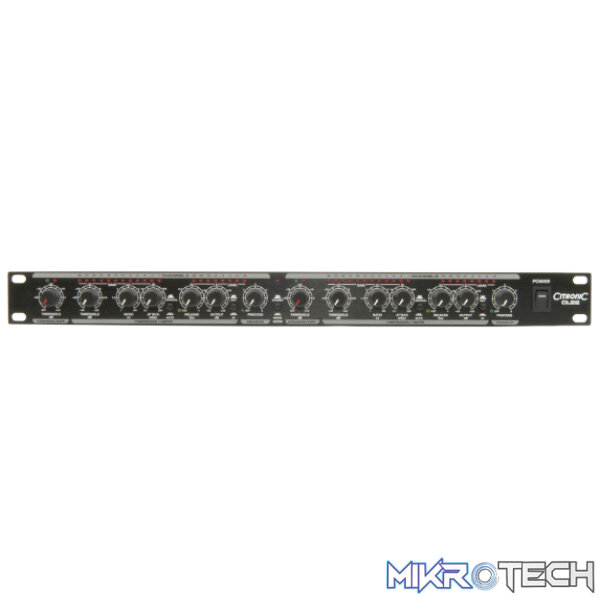

Citronic – Cl22 Stereo Compressor / Limiter / Gate

The CL22 is a professional 19? compressor/limiter/gate designed to control the dynamic range of the signal, allowing more overall sound volume before distortion. An enhancer on each channel helps restore high frequencies under heavy compression. Also useful for protecting loudspeakers by curtailing the output once it reaches a preset threshold level. The gate helps to reduce noise in silent passages.

FEATURES:

• Dual or stereo linked compressor/limiter
• Expander/gate on each channel
• Variable or Auto attack/release times
• Enhancer on each channel
• Balanced and unbalanced inputs and outputs
• Bypass switch for processed/unprocessed comparison
• LED attenuation meters

SPECIFICATIONS:

• Power supply:
  115/230Vac, 50/60Hz (IEC)

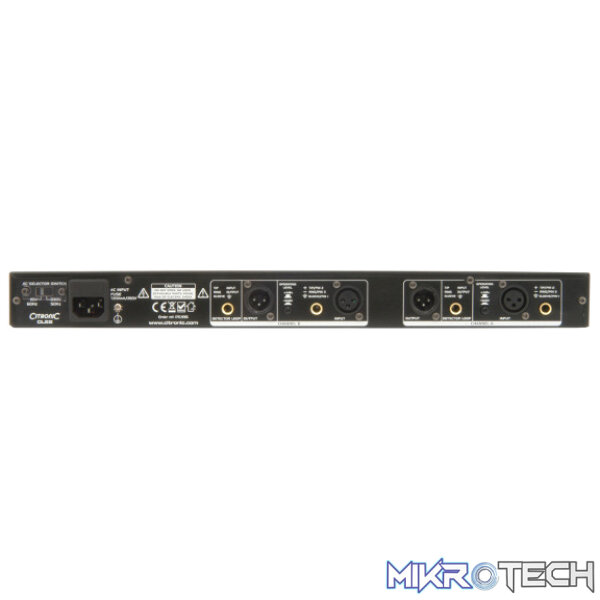

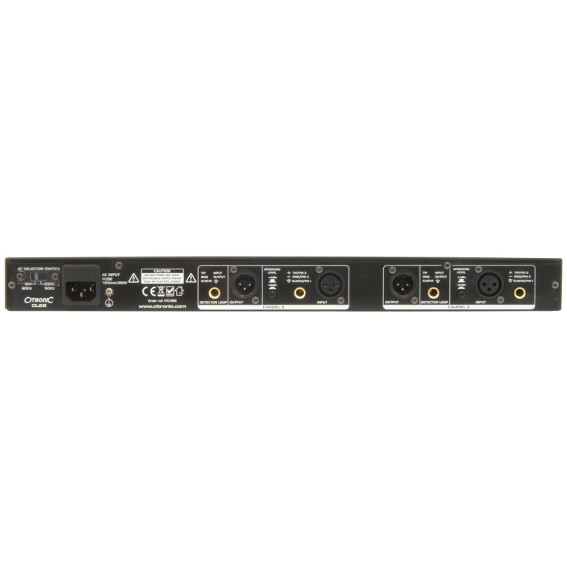

• Connectors : bal/unbal:
  XLR or 6.3mm jack inputs and outputs L+R
• Input impedance : balanced:
  50k Ohms
• Input impedance : unbalanced:
  25k Ohms
• Output impedance:
  60 Ohms
• Operating level:
  +4dBu/-10dBV, switchable
• Frequency response:
  20Hz-20kHz (+0/-0.5dB)
• Signal to noise ratio:
  >95dBu
• Crosstalk:
  <100dB
• THD:
  0.04% @ +4dBu 1kHz
• Dimensions:
  482 x 44 x 180mm
• Weight:
  3.2kg
