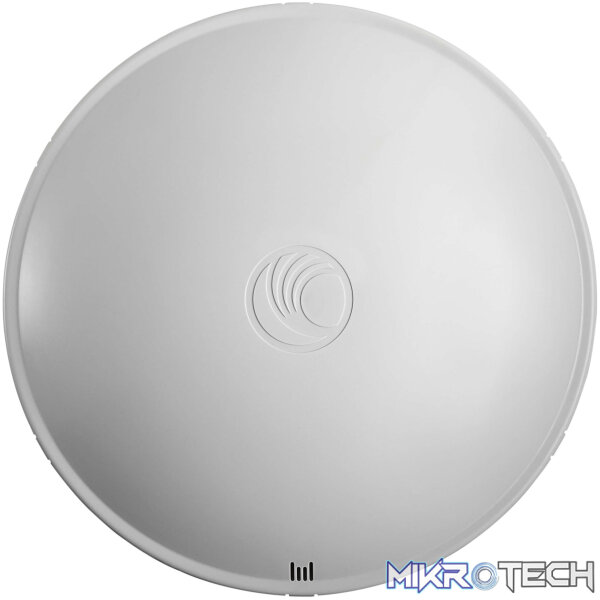

Cambium ePMP Force 200 Radome
R289.99 incl. VAT
Only 4 left in stock
Product ID:
222653
Category: Other Accessories
Product Description
Share This Product On:
Overview:
Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency, and reach in the most congested environments. The ePMP Force 200 high gain integrated solution enhances range and improves throughput in high interference environments. The ePMP Force 200 is a completely redesigned solution from Cambium Networks that combines a highly integrated, high-performance radio with a high-gain dish antenna. The radio supports a gigabit Ethernet interface in order to provide maximum throughput. Operating in the 2.4 and 5 GHz frequency spectrum, the solution brings wireless broadband connectivity to customers over longer distances and provides a superior return on investment.
Features:
- Cambium NetworksÂ’ ePMP Force 200 is designed to operate in high interference environments and provides superior throughput of over 200 Mbps of real user data.
- Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 2 – 3 ms.
- QoS management offers an outstanding quality for triple play services – VoIP, video and data and provides three levels of traffic priority.
- Long deployment range is enabled by a high gain antenna combined with 30 dBm of transmit power.
- This platform can be configured as a Subscriber Module or a high gain PTP radio.
Product Specifications
| Weight | 0.62 kg |
|---|---|
| Dimensions | 49.000000 × 49.000000 × 5.000000 cm |
| MAC (Media Access Control) Layer | Cambium Proprietary |
| Physical Layer | 2×2 MIMO/OFDM |
| Ethernet Interfaced | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used | IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| Network Management | HTTPs, SNMPv2c, SSH VLAN 802.1Q with 802.1p priority PERFORMANCE |
| ARQ | Yes Nominal Receive Sensitivity (w/FEC) @200MHz |
| Channel | MCS0 = -89 dBm to MCS15 = -65 dBm (per branch) Modulation Levels (Adaptive) MCS0 (BPSK) to MCS15 (64QAM 5/6) |
| Quality of Service | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority |
| Transmit Power Range | -15 to +30 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Surge Suppression | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -30°C to +60°C (-22°F to +140°F) – with radome attached maximum temperature is +47°C (+116°F) |
| Weight | 2.4 GHz Model: 2.8 kg (6.2 lbs) 5 GHz Model: 2.3 kg (5.1 lbs) |
| Wind Survival | 145 km/hour (90 mi/hour) |
| Dimensions (Dia x Depth) | 47 cm x 28 cm (18.5 in x 11.2 in) |
| Pole Diameter Range | 6.4 cm – 7.6 cm (2.5 in – 3 in) |
| Power Consumption | 10 W Maximum, 5 W Typical |
| Input Voltage | 10 to 30 V |
| Encryption | 128-bit AES (CCMP mode) CERTIFICATIONS |
| FCCID | 2.4 GHz: Z8H80FT0019 / 5 GHz: Z8H80FT0015 |
| Industry Canada Cert | 2.4 GHz: 109W-0019 / 5 GHz: 109W-0015 |
| CE | 5 GHz: EN 302 502 v1.2.1 EN 301 893 v1.7.1 ePMP Force 200 |
