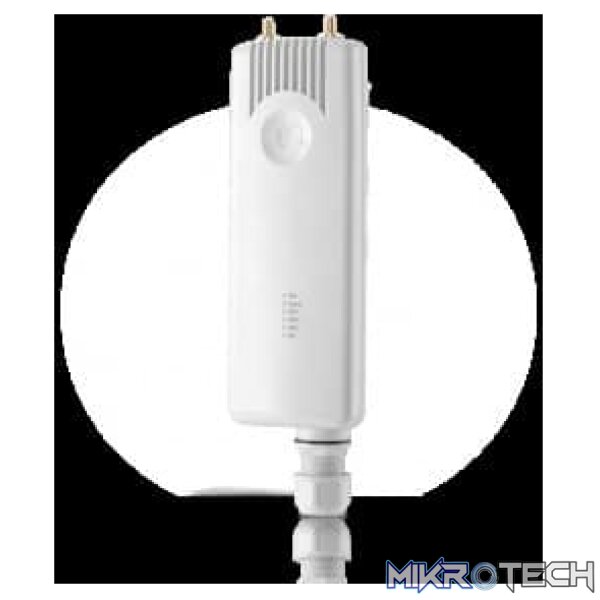

CAMBIUM ePMP 5GHz force 300 CSM 802.11ac Wave 2 Radio
R5,999.99 incl. VAT
In stock
Product Description
Overview:
- Cambium Networks ePMP Force 300 CSM is designed to operate in high interference environments and provides superior throughput of over 500Mbps of real user data.
- The ePMP Force 300 CSM supports channel size configurations from 20MHz up to 80MHz and modulations up to 256 QAM.
- Configurable modes of operations ensure robust adaptability to both symmetrical and asymmentrical traffic while providing high performance and round-trip latency as low as 3-5ms.
- QoS management offers an outstanding quality for triple play services – VoIP, video, data- and provides three levels of traffic priority.
- Long deployment range is enabled by up to 27dBm of transit power and containerized antenna ports.
- The Force 300 CSM offers deployment versatility with options for parabolic dishes and compatibility with the RF Elements Twistport ePMP adapter.
- Installation is a breeze with the easy to install mount, capable of pole and wall mounting.
Product Specifications
| Weight | 0.72 kg |
|---|---|
| Dimensions | 30.000000 × 14.000000 × 9.000000 cm |
| Channel Spacing | Configurable in 5MHz increments |
| Channel Width | 20 / 40 / 80 MHz |
| MAC (Media Access Control) Layer | Cambium Proprietary |
| Physical Layer | 2×2 MIMO/OFDM |
| Ethernet Interfaced | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro |
| VLAN | 802.1Q with 802.1p priority |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | M CS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | M CS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS0(BPSK)to MCS9 (256QAM5/6) |
| Transmit Power Range | 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Surge Suppression | 1 Joule Integrated, Optional 30V Surge Suppressor (C000000L065A) |
| Environmental | IP67 |
| Temperature | -22°F to +140°F (-30°C to +60°C) |
| Weight | 0.46 kg (1.0 lbs.) |
| Wind Survival | 180 km/hour (112 mi/hour) |
| Dimensions (Dia x Depth) | 220mm x 80mm x 25mm (8.7in. x 3.15in. x 1.0 in.) |
| Pole Diameter Range | 6.4 cm – 7.6 cm (2.5 in – 3 in) |
| Power Consumption | 12 Watts |
| Input Voltage | 30 Volts |
| Encryption | 128-bit AES (CCMP mode) |
| FCCID | Z8H-89FT0047 |
| Industry Canada Cert | 109W-0047 |
| CE | EN301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz) |
| C058910C122A | ePMP 5 GHz Force 300 CSM Radio (FCC) (US cord) |
| C050910C124A | ePMP 5 GHz Force 300 CSM Radio (IC) (Canada/US cord) |
| C050910C223A | ePMP 5 GHz Force 300 CSM Radio (EU) (EU cord) |
| C050910C323A | ePMP 5 GHz Force 300 CSM Radio (EU) (UK cord) |
| C050910C021A | ePMP 5 GHz Force 300 CSM Radio (ROW) (no cord) |
| C050910C121A | ePMP 5 GHz Force 300 CSM Radio (ROW) (US cord) |
| C050910C221A | ePMP 5 GHz Force 300 CSM Radio (ROW) (EU cord) |
| C050910C321A | ePMP 5 GHz Force 300 CSM Radio (ROW) (UK cord) |
| C050910C421A | ePMP 5 GHz Force 300 CSM Radio (ROW) (India cord) |
| C050910C422A | ePMP 5 GHz Force 300 CSM Radio (India) (India Cord) |
| C050910C521A | ePMP 5 GHz Force 300 CSM Radio (ROW) (China cord) |
| C050910C621A | ePMP 5 GHz Force 300 CSM Radio (ROW) (Brazil cord) |
| C050910C721A | ePMP 5 GHz Force 300 CSM Radio (ROW) (Argentina cord) |
| C050910C821A | ePMP 5 GHz Force 300 CSM Radio (ROW) (ANZ cord) |
| C050910C921A | ePMP 5 GHz Force 300 CSM Radio (ROW) (South Africa cord) |
| C050910CZ21A | ePMP 5 GHz Force 300 CSM Radio (ROW) (No PSU) |
| Frequency Range | 4.910- 5.970 MHz |
| Antenna Type | Connectorized |
| Connectors | 2 x 50 ohm, RP-SMA (Reverse Polarity SMA) Compatible with RF-Elements TwistPort Adaptor for ePMP |
