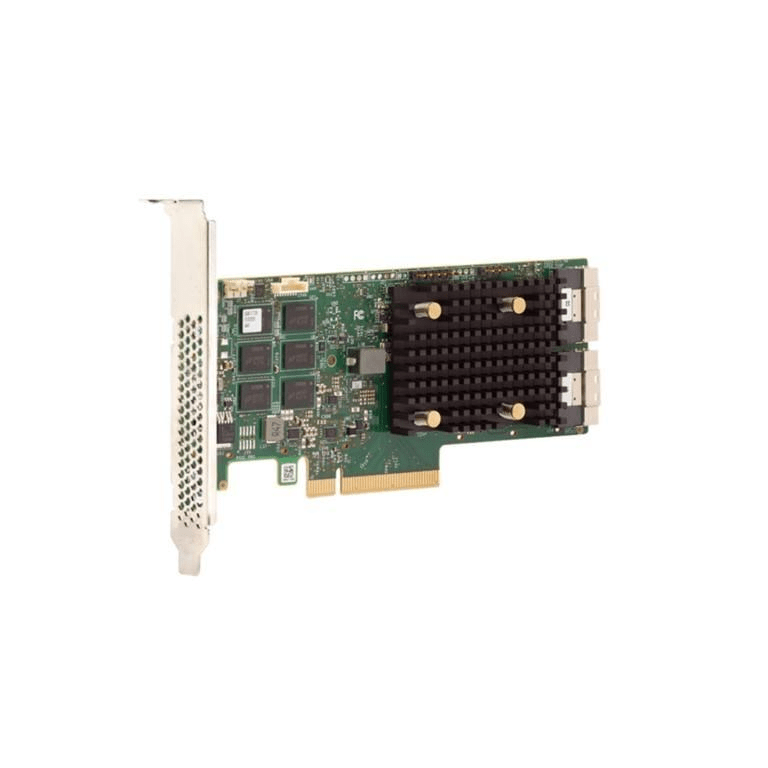

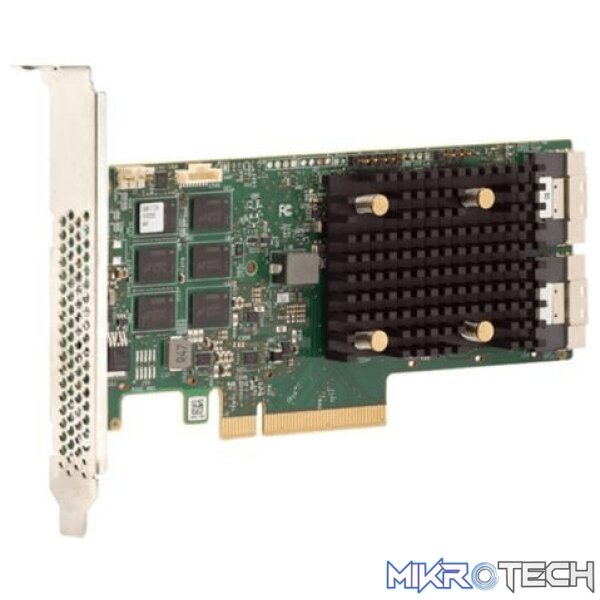

HPE MR416i-p Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G RAID Controller Card P06367-B21
Broadcom MegaRAID MR416i-p x16 lanes 4 GB Cache NVMe/SAS 12 G Controller for HPE Gen10 Plus
Features
Powerful Performance
Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus feature Broadcom MR416i and Broadcom MR216i controllers with impressive performance including up to 13,700 Mbs of bandwidth, 3M random read IOPS, and 240K RAID5 random write IOPS.
2nd Generation Tri-Mode SerDes
Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus is enabled with SerDes for exceptional support of NVMe4/SAS3/SATA protocols.
With Tri-Mode support, achieve the scalability and flexibility you need for shifting business environments.
Enhanced Security
Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus is built with the HPE Silicon Root of Trust for firmware authentication and support for self-encrypting drives to help ensure protection for data at rest and prevention of malware.
Software Supported
Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus support all major OS’s including but not limited to Windows, Linux®, and VMware®; full tool suite including command line interface, web-based management, and out-of-band management support.
Technical Specification
Transfer rate: PCIe Gen4 host / Gen4 NVMe / Gen 3 SAS/SATA
Servers supported: See Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus QuickSpecs for more detail
Cache: 4 GB
Certifications: See Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus QuickSpecs
Additional Features: See Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus QuickSpecs
Ports: x8 host / x16 internal tri-mode
RAID Levels: 0, 1, 5, 6, 10, 50, 60
Form factor: Standard HH/HL PCIe add in card
Warranty: The warranty for this device is 3-years parts only.
Detailed product description: Broadcom MegaRAID MR416i-p x16 lanes 4 GB Cache NVMe/SAS 12 G Controller for HPE Gen10 Plus
Weight: 0.321 lb
Weight: 0.146 kg
Minimum dimensions ( H x W x D): 6.181 in
Minimum dimensions ( H x W x D): 15.7 cm
Secure Encrypted Drives: Supported
Storage Protocol: SATA / SAS / NVMe
Storage Management: MegaRAID Storage Administrator (MRSA), StorCLI, HII, Redfish (Inventory and Events)
| Weight | 0.3000 kg |
|---|---|
| Dimensions | 25.0000 × 22.0000 × 6.0000 cm |
