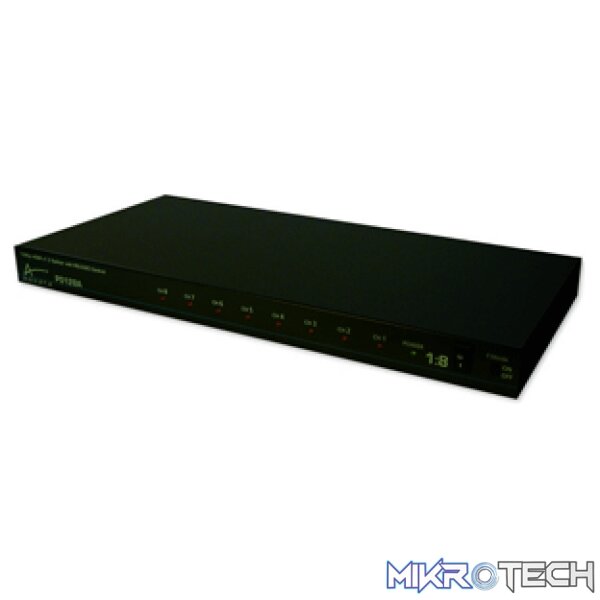

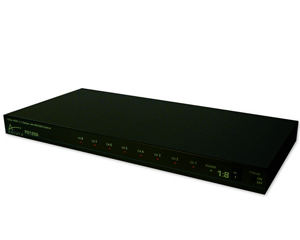

Aavara PS128A 1 signal to 8 display 1080p HDMi splitter for audio/video
R7,539.99 incl. VAT
Only 2 left in stock
Product Description
Overview:
Aavara PS128A is a HDMI 1080p distribution hub that sends the same HDMI video input to eight HDMI HDTV digital screens. It support HDMI v1.4 3D Video Format, RS-232 control, Two Splitter Modes. Solid Socket design to hold HDMI connector contact tight for shock & vibration resist and Kensington Lock slot for security. PS128A is a flexible solution to integrate multiple displays in signage, video wall or demo shelf.
Features:
- HDMI 1080p distribution hub that sends the same HDMI video input to eight HDMI HDTV and support HDMI v1.4 3D Video Format, RS-232 control.
- Splitter Mode Dip Switch at box front: Mode 1 (default) Greatest Common Video & Audio Format among all displays connected; Model 3 Following Output 1 display, video source will do EDID handshaking with Output 1 display only.
- Solid HDMI socket for Solid connection and High Performance transmission.
- Screw hole ready for HDMI cable with screw to solid fix on splitter.
- Socket design to hold HDMI connector contact tight for shock & vibration resist.
- Support HDMI 36-bit Deep Color & x.v.Color wide color gamut.
Product Specifications
| HDMI Spec. | 1.3b |
|---|---|
| DVI Spec. | 1.0 Compliant |
| HDCP Spec. | 1.2 Compliant |
| 3D Video Format | Support HDMI v1.4 Video Format (Side by Side, Top and Bottom, Frame Packing) |
| RS-232c connector | Rs-232 command control from PC or other control panel |
| Daisy Chain | 3 layers /512 displays (8 x 8 x 8) |
| Operating Temperature | +5ºC to +35ºC |
| Storage Temperature | -20ºC to +60ºC |
| Humidity Range | 5% to90% RH |
| Signal Rate | 6.75Gbps |
| Power Consumption | 3W |
| Video Bandwidth | 225 MHz |
| Single Link Range | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p resolution |
| Dimension | 342(W) x 163(D) x 27(H) mm |
| Net Weight | 1.7kg |
