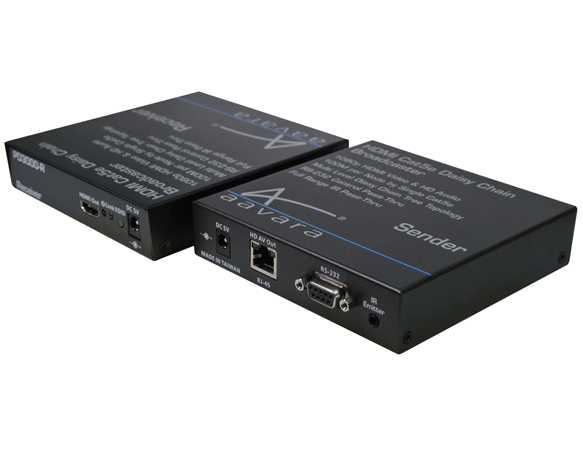

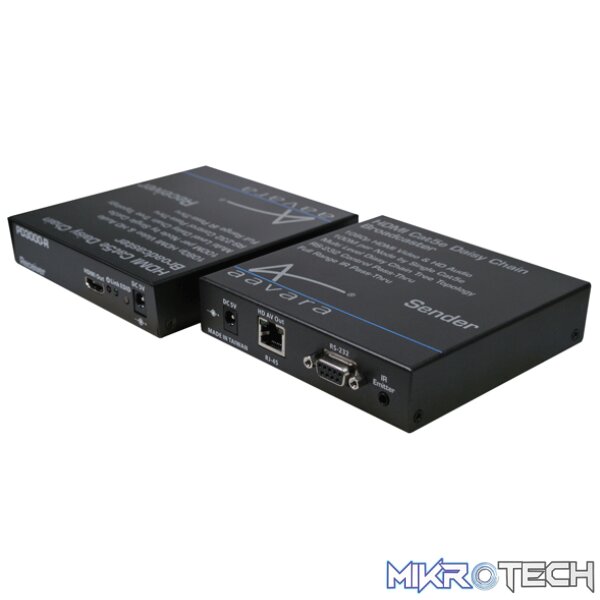

Aavara PD3000-Receiver HDMi over UTP 1080p tree chain broadcaster via UTP
R4,939.99 incl. VAT
Only 7 left in stock
Overview:
The PD3000 HD Video Tree Chain Cat5e Broadcaster is designed to simplify cabling of digital signage and commercial installation. Ultra high quality HDMI video with CD quality audio broadcasts to multiple TVs/Displays/Projectors at a wide spread area by Single Cat5e connection. Key features include ultra high quality HDMI 1080p @ 60Hz / DVI 1920×1200 video with CD quality audio, 100M by single Cat5e point to point and a Plug-n-Play, easy installation. Each receiver can further daisy chain to two receivers, and the PD3000 also supports a 10 layer ‘daisy-chainÂ’ for up to 1000M or even longer. Up to 100 TVs, displays or projectors can be supported. PD3000 can combine Aavara PB5000 HDMI-Over-IP to meet all kind of complex layouts for deploying digital signage installations at Airports, Shopping Malls, Department Stores, Trans/Bus/Metro stations, Hotel, Healthcare and Institutions.
Features:
- Ultra High Quality HDMI 1080p @ 60Hz / DVI 1920×1200 video with CD Quality Audio
- 100M by Single Cat5e point to point and Receiver Tree Topology Daisy Chain
- Each Receiver can further daisy chain to 2 x Receivers
- Support 10 layers Daisy Chain for up to 1,200M or even longer
- RS-232 and IR Control Pass-thru to control Display or Video Source at remote site
- Support up to 100 TVs/Displays/Projectors broadcasting
- Plug n Play, Easy Installation
| HDMI Spec. | v1.3 Compatible |
|---|---|
| DVI Spec. | v1.0 Compatible |
| HDCP Spec. | v1.1/ 1.2 Compatible |
| HDMI Video Resolution | 480p, 576p, 720p, 1080i/p |
| HDMI PC Resolution | Up to1920x1200 @ 60Hz |
| Cable Distance | Point to Point 100M by Cat5e |
| Max. Display connected | Suggest under 100 displays |
| Max. Daisy Chain Layer | Suggest under 10 layers |
| IR Pass-Thru | 20~60KHz Full Range |
| RS-232 Pass-Thru | Up to 115, 2000bps |
| Power Adapter | DC 5V |
| Power Consumption | 5W |
| Dimension (LxWxH) | Sender: 120x122x27mm Receiver: 135x122x27mm |
| Weight | 325g |
| Optional Accessory | 1. Wall Mounting Kit (MK-100) 2. Mounting Kit Secured & locked with TV/Display Mount (MK-200) |
| Package Content | HDMI Video Tree-Chain Broadcaster Sender or Receiver, 5V DC Adapter, Usermanual, IR Emitter or Receiver Cable |
