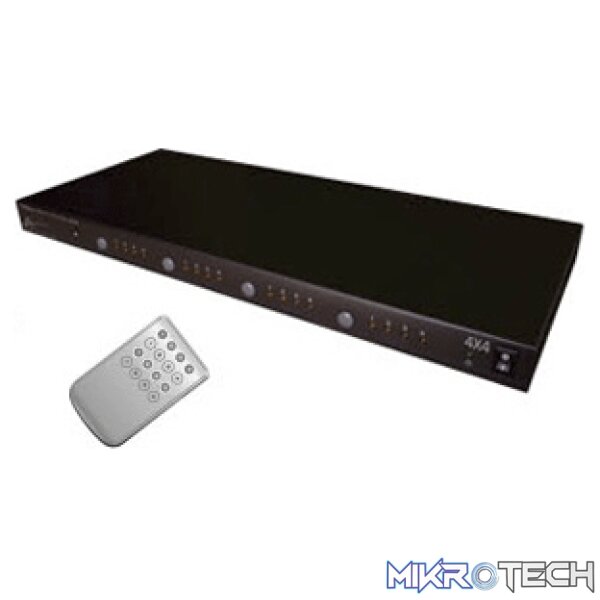

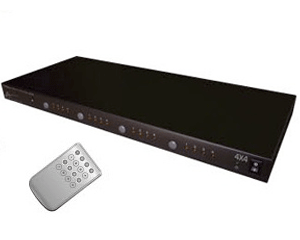

Aavara PM4X4A 4 signal to 4 display switch/splitter
R9,099.99 incl. VAT
Only 3 left in stock
Overview:
Aavara PM4X4A 4×4 HDMI Matrix supports HDMI v1.4 3D Video Format, uncompressed resolution up to 1080p including multi-channel digital audio signal. Four inputs transmit high definition digital video and audio signals to four displays in selection among. It is compliant with Blu-ray, DVD players, media players and satellite set top boxes to any HDMI compatible display.
Sources are accessible at all times to any display when operating with the IR remote and RS-232 remote control. 4 type Matrix Mode Dip switch which can adjust Matrix split rule to support all kind of installation configurations for both Commercial and Residential application. PM4X4A matrix switching allows maximum versatility for integrated systems.
Features:
- HDMI Specification 1.3b Compliant, with HDMI v1.4 3D Video Format support
- RS-232 control by PC or other RS-232 control panel for system integration
- Matrix Mode Dip switch can adjust Matrix split mode to following rule:
- Mode 1: Greatest Common Video Resolution & Audio Format made sure all displays will show video correctly
- Mode 2: Maximum Video and Audio output from Video source
- Mode 3: Follow Output 1 Display, Video Source will handshake with Output 1 Display only and rest display follow
- Mode 4: Follow Output 1 Display, and Turn Off Deep Color. Video Source will handshake with Output 1 Display only and rest display follow. Which will reserve HDMI bandwidth for high quality multi-channel Audio and improve long distance HDMI transmission stability
- Support HDMI 36-bit Deep Color & x.v.Color wide color gamut
- Supports 480i, 480p, 576i, 576p, 720p, 1080i and 1080p resolution
- Freely to select one of four HDMI signal inputs by each Output displays/TV/projectors independently
- Audio support Dolby TrueHD & DTS-HD lossless 7.1 digital surround & Lip Sync
- Plug-and-play. Installs in seconds
| HDMI Spec. | 1.3b Compliant |
|---|---|
| DVI Spec. | 1.0 Compliant |
| HDCP Spec. | 1.2 Compliant |
| MATRIX 4 input X 4 output | Transmit same source or FOURf different sources simultaneously |
| Operation temperature | +5ºC to +35ºC |
| Storage temperature | -20ºC to +60ºC |
| Humidity Range | 5% to 90% RH |
| Signal Rate | 6.75Gbps |
| Power Consumption | 5W |
| Video Bandwidth | 225 MHz |
| Single Link Range | Supports 480i, 480p, 576i, 576p, 720p, 1080i and 1080p resolution |
| Cable Length | 5M (In and Out respectively) |
| Dimension | 390(W) x 163(D) x 27(H) mm |
| Net Weight | 1.7kg/3.75lbs |
| EAN Bar Code | 4712818572681 |
| Q'TY per Carton | 5 |
| Package Content | 1080p HDMI MATRIX 4X4, Remote Control, 5V DC Adapter, Usermanual |
