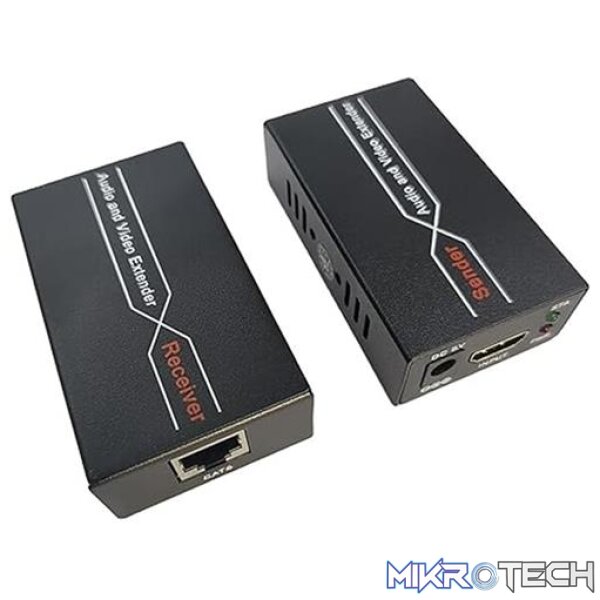

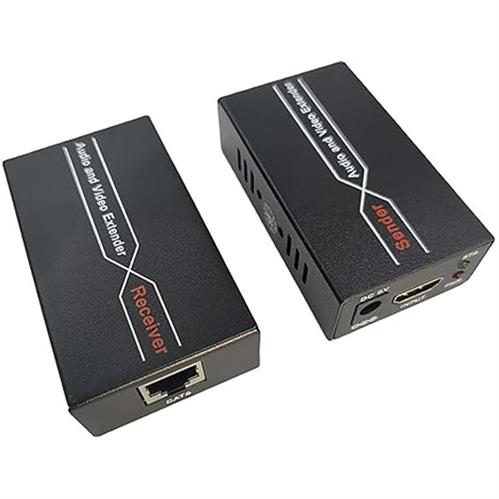

UniQue 60M HDMI Extender 1080p 3D HDMI Transmitter Receiver over Cat5e/6 with IR Control Loop Out 3D EDID Function
R519.99 incl. VAT
Product Description
UniQue 60M HDMI Extender 1080p 3D HDMI Transmitter Receiver over Cat5e/6 with IR Control Loop Out 3D EDID Function 1 year Limited Warranty
Product Overview
The HDMI Extender lets you extend HDMI audio/video signal by up to 60 meters (196 feet) over single Lan cable. The extender kit includes both the local transmitter and remote receiver units, perfect for point-to-point digital signage applications that require high quality HDMI video. It also works to extend Infrared IR signals from remote controls, ideal for controlling your video source from your video destination. For perfect performance, the extender comes with a reset function on the receiver, which enables user to adjust the signal to best match the cable length.
Features
•Support H.265 Technology:
•Distance up to 120m over a CAT6 cable over UTP CAT6
•Support IR(38khz) signal pass back control
•Support R$232 pass-through
•Support dual way individual audio transmission
•HDMI1.4 and HDCP1,4 protocol;
•Receiver supports both 1 HDMl and 1 VGA output
Specifications
•Product code: ZA-EXTHDMI-60M
•Description: UniQue 60M HDMI Extender 1080p 3D HDMI Transmitter Receiver over Cat5e/6 with IR Control Loop Out 3D EDID Function
•Protocol: HDMI 1.4; HDCP 1.4
•Maximum pixel clock: 225MHz?digital
•Maximum data rate: 10.2Gbps
•Highest resolution: 3840X2160@30Hz and backward compatible
•Connector: HDMI-A
•HDMI Impedance: 100?
•HDMI cable; less than 5meters ?24AWG
•Port: DB9
•Signal direction: Two-way transmission
•Baud rate: 115200bps (Other baud rates need to be set on the web)
•Data bit: 8 bits
•Port: 3.5mm Stereo audio socket
•Audio format: 44.1K, 48K, 96K, 176K, 192K
•Signal type: Stereo audio
•Interface: 3.5mm earphone seat
•Signal direction: Unidirectional pass-back
•Signal type: Digital
•IR frequency: 38 kHz
•Connector: RJ45 port?568B?
•Longest distance: 120metres via cat6; 70m via cat5e
•Power supply: Adapter?DC 5V/2A
•Power dissipation: MAX 6W
•Temperature: -5? ~ +70?
•Humidity: 5% ~ 90%
•Dimension: 134*93*24mm
