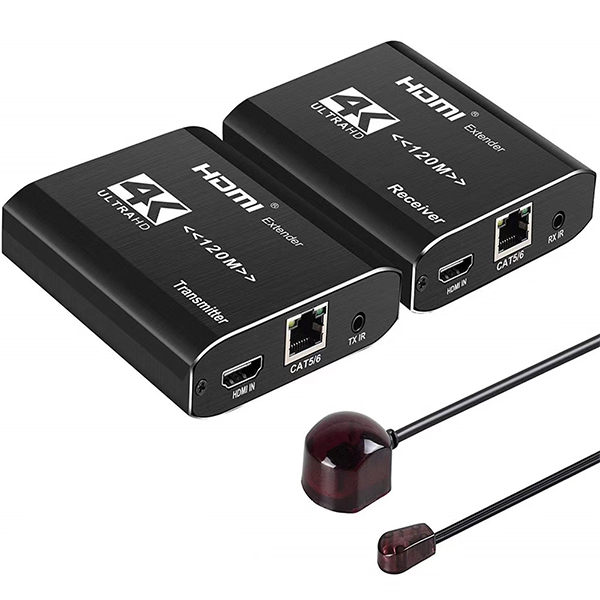

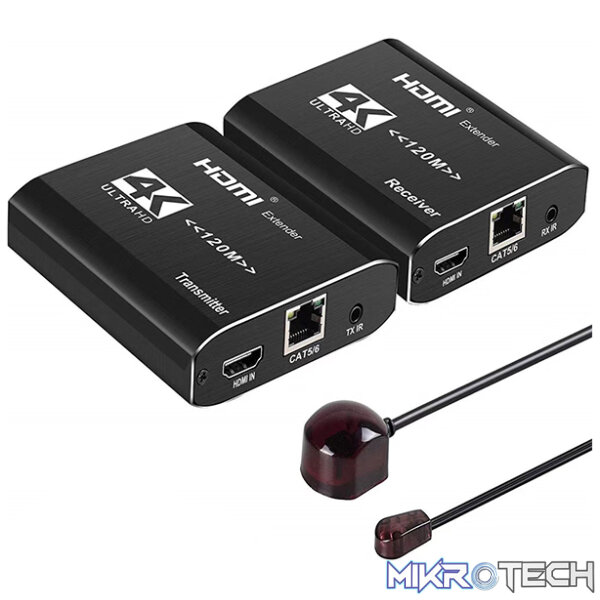

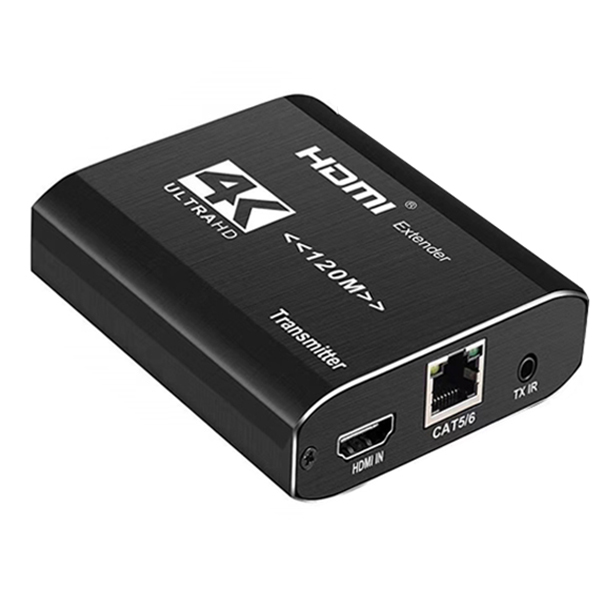

Tva – Hdmi Over Cat5/6 Extender 120M With Ir

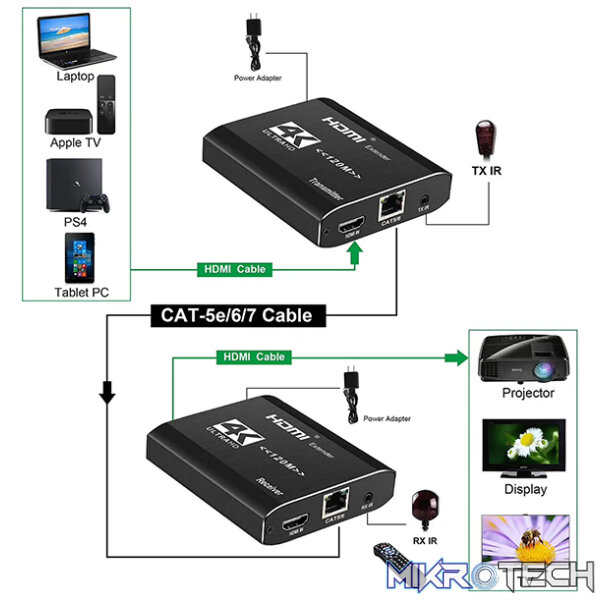

The extender uses single cat-5E or cat-6 (recommended) cables instead of HDMI cable to transmit high definition signal up to 120m.  It is designed to supply long distance transmission of high definition signal. A solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES:

• Support HDMI 1.4a
• Support 3D
• Support highest video resolution 4K/30Hz
• Support 3×3.4Gbps data rate and tmds clock up to 340MHz
• Support 8/10/12 bit deep color
• Support AWG26 HDMI standard cable, input up to 15m, output up to 15m

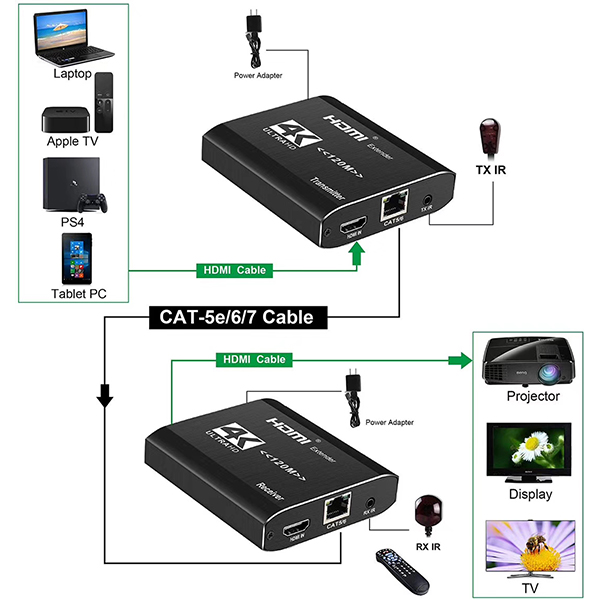

• Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 60m between TX and RX
• No loss of quality
• 5V/1A power supply included

SPECIFICATIONS:

• HDMI:
  HDMI 1.4
•
  HDTV Resolutions:
  4K@30Hz, 1080p@60Hz
•
  Size(L-W-H):
  165x80x21mm
•
  Audio:Sample rate:
  32kHz,44.1kHz,48kHz
•
  Power adapter DC:
  5V/1A
•
  Weight:
  450g x 2
