Overview:

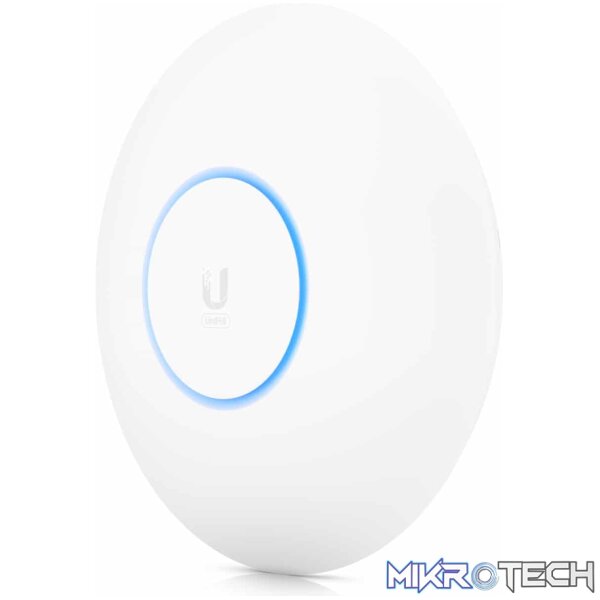

UniFi 6 Long-Range Access Point
SKU: U6-LR-US
U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.
It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4×4 MU-MIMO and OFDMA) and 2.4 GHz 4×4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).
Features:
- 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
- Four-stream high-efficiency Wi-Fi 6 technology
- 5 GHz band 4×4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
- 2.4 GHz band 4×4 MIMO with radio rate of 600 Mbps
- Powered with 802.3at PoE (PoE injector not included)
Full-duplex 1 Gbps
Support full-duplex 1 Gbps TCP/IP performance
Four-stream high-efficiency Wi-Fi 6 technology
Wi-Fi 6 APs deliver an aggregate radio rate of up to 3 Gbps with 5 GHz (4×4 MU-MIMO and OFDMA) and 2.4 GHz 4×4 MIMO radios
Powerful, wider wireless coverage
The U6-LR access point utilizes Wi-Fi 6 technology to provide strong and expansive wireless coverage to all enterprise networking environments.
Simultaneously connect to more devices
Create and support over 300 distinct client connections.
Easily set up and grow your network
The U6-LR access point seamlessly integrates with the UniFi Network Controller and simplifies network bridging.
| Weight | 1.68 kg |
|---|---|
| Dimensions | 26.000000 × 26.000000 × 8.000000 cm |
| Dimensions | Ø220 x 48 mm (Ø8.66 x 1.89″) |
| Weight | Without Mount: 800 g (1.76 lb) With Mount: 930 g (2.05 lb) |
| Enclosure Material | Plastic |
| Mounting Material | SGCC Steel |
| Weatherproofing | IP54 |
| Processor Specs | Dual-Core Cortex A53 at 1.35 GHz |
| Memory Information | 512 MB |
| Management Interface | Ethernet |
| Networking Interface | (1) 1 Gbps Ethernet RJ45 |
| Button | Factory Reset |
| LEDs | RGB |
| Power Method | PoE+, Passive PoE (48V) |
| Power Supply | UniFi PoE Switch 48V, 0.5A PoE Adapter (Not Included) |
| Supported Voltage Range | 44 to 57VDC |
| Max. Power Consumption | 16.5W |
| 2.4 GHz | 4 dBi |
| 5 GHz | 5.5 dBi |

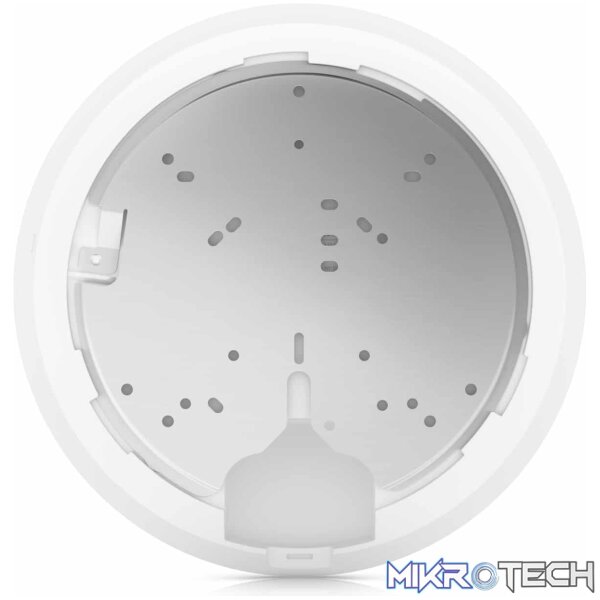

| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 – 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Wi-Fi Standards | 802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions |
| BSSID | 8 per Radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Trafc Isolation | Supported |
| Concurrent Clients | 300+ |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (Wi-Fi 4) | 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) |
| 802.11ac (Wi-Fi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (Wi-Fi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) |
