Product Description
Features:

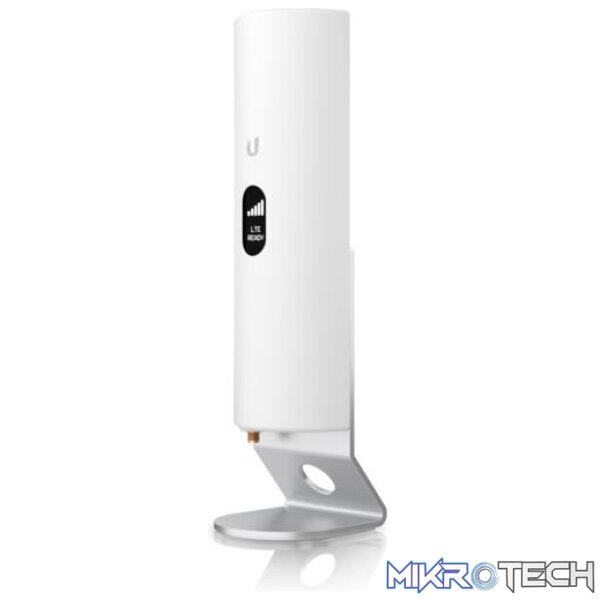

UniFi LTE Pro – Third-Party SIM Card Support
Avoid internet downtime and lost productivity by adding a UniFi LTE Pro to your existing UniFi network.
UniFi LTE Pro provides backup cellular internet connectivity to ensure your UniFi WAN network is always running. This model works in the EU region and supports European LTE and WCDMA bands. It has a Nano SIM card slot for your own card. Insert the Nano SIM, connect to any switch port in your corporate network, and activate the device.
- Automatic redundant WAN connection
- Integrated with UniFi Network application
- PoE (802.3af) powered

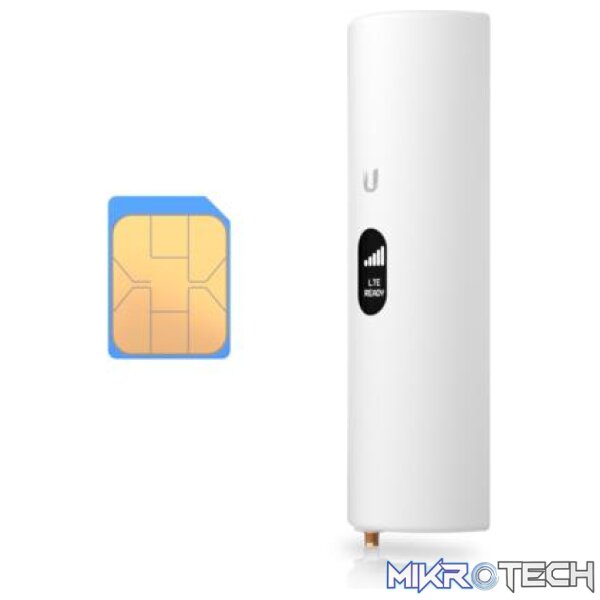

- Nano SIM card slot
- Supports European bands: LTE (1, 3, 7, 8, 20, 28), WCDMA (1, 8)
- Coverage and speed depend on the mobile network. Requires UniFi Security Gateway or UniFi Dream Machine .
Product Specifications
| Dimensions | 6.6 × 20.2 × 3.2 cm |
|---|---|
| Dimensions | 66 x 202 x 32 mm (2.60 x 7.96 x 1.27″) |
| Weight | Without Stand: 223 g (7.86 oz) With Stand: 336 g (11.85 oz) |
| Enclosure Material | Polycarbonate |
| Mount Materials | Stand: Aluminum Wall Mount: Polycarbonate |
| Processor | 74 Kc MIPS Processor at 775 MHz |
| Memory Information | 128 MB DDR2 |
| Management Interface | Ethernet |
| Networking Interfaces | (2) 10/100/1000 Mbps RJ45 Port WP7607 LTE |
| SIM | Nano-SIM |
| LTE Bands | CAT4, B1/3/7/8/20/28 |
| LCM Display | 1.54″ Screen |
| Power Method | 802.3at PoE, Passive PoE (48V) |
| Power Supply | 802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8-) |
| Supported Voltage Range | 44 to 57VDC |
| Max. Power Consumption | 8.5W |
| Max. TX Power | 19 dBm |
| MIMO | U-LTE 2 x 2 Category 4 LTE Radio |
| Throughput Speeds | 150 Mbps |
| B1 | 2 dBi |
| B3 | 1.5 dBi |
| B7 | 2 dBi |
| B8 | 3.5 dBi |
| B20 | 2 dBi |
| B28 | 2 dBi |
| Button | Factory Reset |
| Mounting | Wall Mount/Foot Stand (Included) |
| ESD/EMP Protection | Air/Contact: ± 24 kV |
| Operating Temperature | -10 to 60° C (-14 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
