Product Description
Overview:

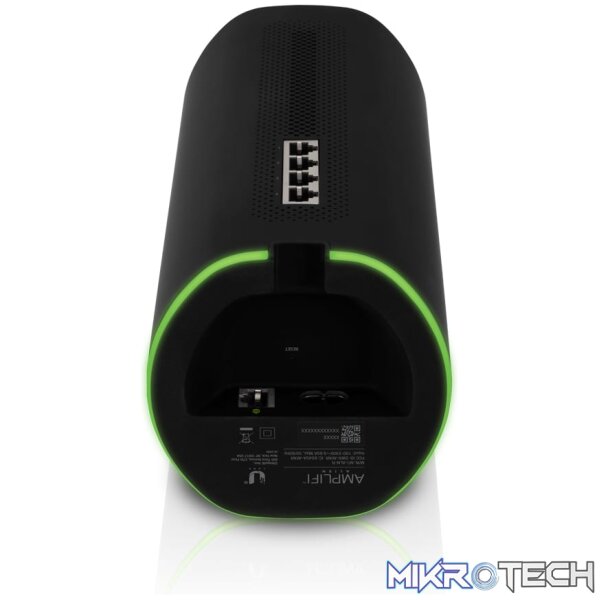

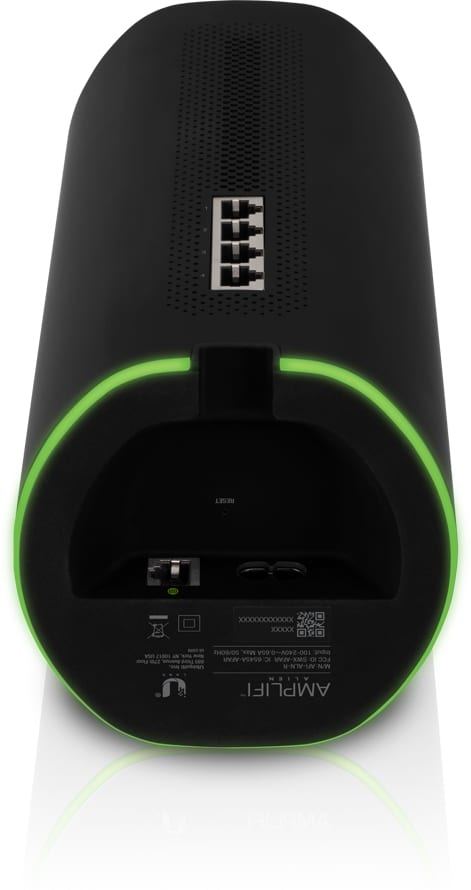

AmpliFi Alien Router and MeshPoint
SKU: Afi-ALN-EU
With the latest 802.11ax Wi-Fi 6 technology, AmpliFi Alien delivers 4x the overall network capacity and 2x the coverage while reaching true gigabit speeds.
It features a dual-band radio with 2.4 GHz and 5 GHz 802.11ax radios optimized for Wi-Fi 6 performance and backward compatibility with previous Wi-Fi standards.

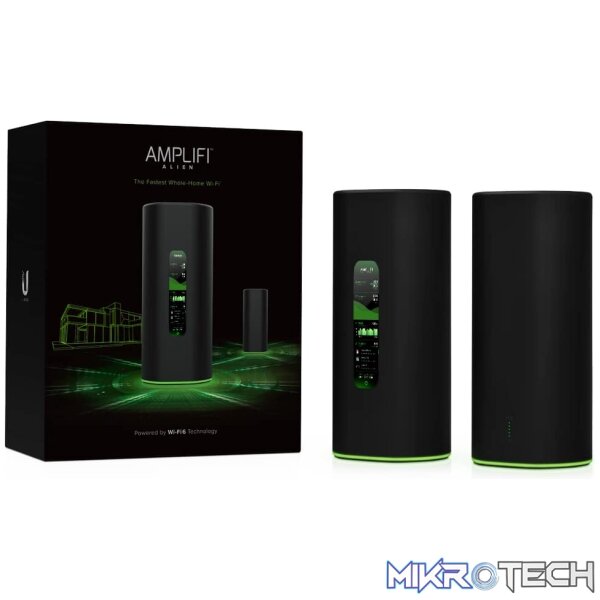

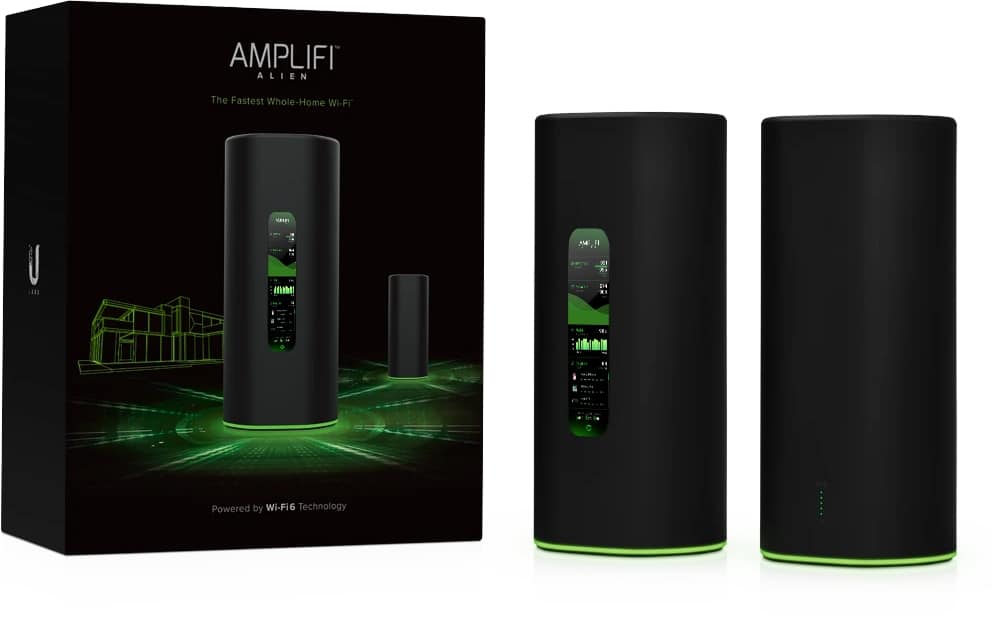

This combination pack comprises one AmpliFi Alien Router and one Amplifi Alien MeshPoint. The MeshPoint expands wireless range coverage and includes a Gigabit Ethernet port to extend wired connectivity.
Features:
- Wi-Fi 6 performance
- 5 GHz 8×8 Wi-Fi 6 radio (Max. aggregate speed: 4804 Mbps)
- 2.4 GHz 4×4 Wi-Fi 6 radio (Max. aggregate speed: 1148 Mbps)
- Router with 4-Port Gigabit Ethernet switch
- MeshPoint with (1) Gigabit Ethernet port

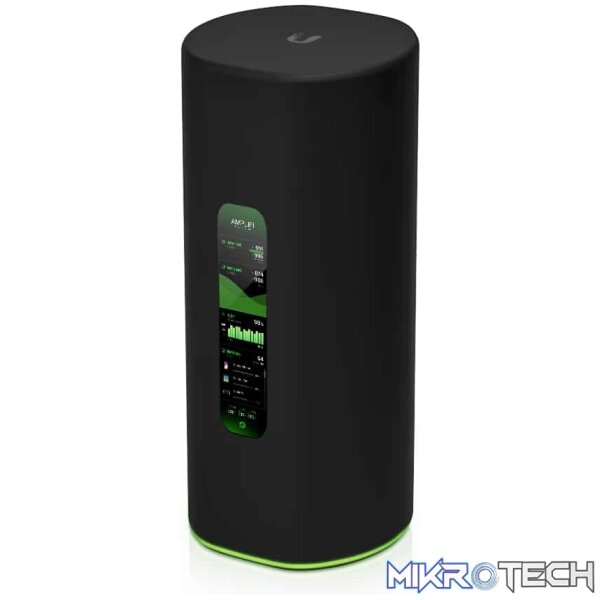

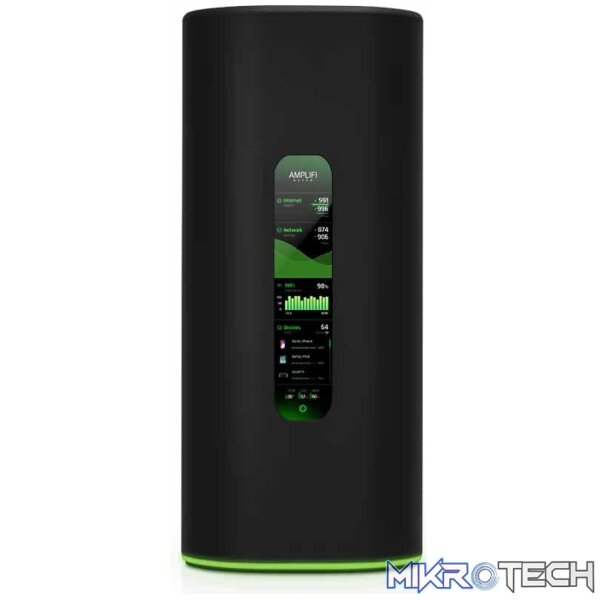

- Touchscreen display on Router
- Includes AmpliFi Teleport configuration-free VPN solution
Product Specifications
| Weight | 4.00 kg |
|---|---|
| Dimensions | 26.000000 × 14.000000 × 30.000000 cm |
| Dimensions | Router/MeshPoint: 110 x 110 x 250 mm (4.33 x 4.33 x 9.84″) |
| Weight | Router: 1.2 kg (2.65 lb) MeshPoint: 1.09 kg (2.4 lb) |
| Supported Frequency Range | 5.15 – 5.85 GHz |
| Enclosure Material | Router/MeshPoint: Polycarbonate |
| Processor | Router/MeshPoint: Quad-Core Cortex A53 at 2 Ghz |
| Memory Information | Router/MeshPoint: 1 GB |
| ManagementInterface | AmpliFi Wi-Fi App |
| Networking Interface | Router: (1) 10/100/1000 Mbps RJ45 Ethernet WAN (4) 10/100/1000 Mbps RJ45 Ethernet LAN MeshPoint: (1) 10/100/1000 Mbps RJ45 Ethernet LAN |
| Max. Power Consumption | Router: 35W MeshPoint: 34W |
| ESD/EMP Protection | Router/MeshPoint: Air/Contact: ± 24kV |
| Power Method | Router/MeshPoint: Universal AC Input: 100-240VAC, 1A Max, 50/60 Hz |
| Button | Router/MeshPoint: Factory Reset |
| Display | Router: 4.7″ Diagonal, 274 x 1268, 279 ppi, G+F Touch, Full Color MeshPoint: No Display |
| Antenna | Router/MeshPoint: Internal Dual-Band Metal Stamp with 12 Polarity |
| 2.4GHz | 1148 Mbps |
| 5 Ghz | 4800 Mbps |
| LEDs | Router/MeshPoint: Green Ring MeshPoint: Green Status Indicator Flashing: Initial Conguration Lights up in Sequence Bottom to Top: Bootup in Progress Lights Up in Sequence from the Middle Outwards: Wi-Fi Not Ready or Connected Steady: Device is Adopted (Lit based On the Signal Strength Receiving from the Router) Flash Quickly: Locate Lights Up One by One: Firmware Upgrading |
| Operating Temperature | Router/MeshPoint: -10 to 45° C (14 to 113° F) |
| Operating Humidity | Router/MeshPoint: 5 to 95% Noncondensing |
| Certifications | Router/MeshPoint: CE, FCC, IC |
| Wi-Fi Standards | Up to Wi-Fi 6 |
| Wi-Fi Functions | MU-MIMO, OFDMA, Tx-Beamforming |
| Power Save | Yes |
| Wireless Security | WPA2 |
| VLAN | Yes |
| Advanced QoS | Yes |
| Guest Trafc Isolation | Yes |
| Concurrent Clients | Yes |
| Supported Data Rates | 802.11a: 54 Mbps 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 600 Mbps + 600 Mbps 802.11ac: 1733 Mbps + 800 Mbps 802.11ax: (Backbone) 4800 Mpbs Router-Mesh Connection 802.11ax: (Available to Clients) 4800 Mbps + 1148 Mbps |
| Operating Frequency | 2.4 Ghz: 2412 – 2472 MHz 5 Ghz: 5150 – 5875 MHz |
