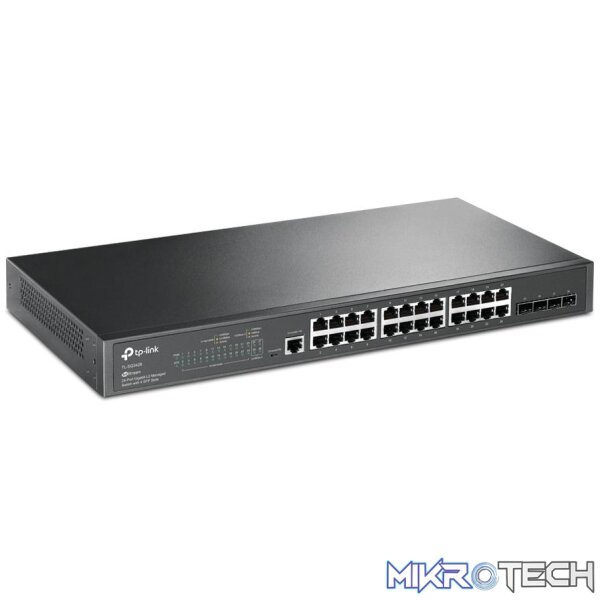

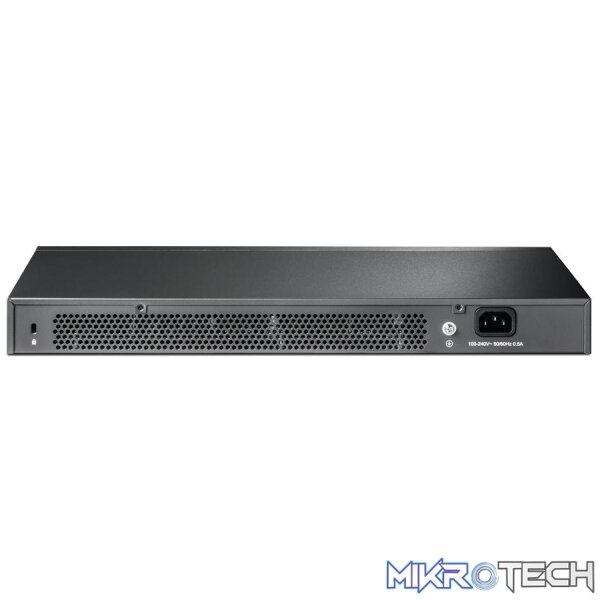

TP-Link TL-SG3428 JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
R2,959.99 incl. VAT
Only 1 left in stock
Product Description
Overview:
TL-SG3428 – JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
- Full Gigabit Ports : 24x gigabit RJ45 ports and 4x gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN : Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management : Cloud access and Omada app for ultra convenience and easy management.
- Static Routing : Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies : IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications : L2/L3/L4 QoS and IGMP snooping.
- Standalone Management : Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Product Specifications
| Weight | 2.80 kg |
|---|---|
| Dimensions | 53.000000 × 25.000000 × 8.000000 cm |
| Interface | 24x 10/100/1000 Mbps RJ45 Ports 4x Gigabit SFP Slots 1x RJ45 Console Port 1x Micro-USB Console Port |
| Fan Quantity | Fanless |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 19.22 W (110 V/60 Hz) |
| Max Heat Dissipation | 65.58 BTU/h (110 V/60 Hz) |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 9 KB |
| Quality of Service | 8 priority queues 802.1p CoS/DSCP priority Queue scheduling – SP (Strict Priority) – WRR (Weighted Round Robin) – SP+WRR Bandwidth Control – Port/Flow based Rating Limiting Smoother Performance Action for Flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark |
| L2 and L2+ Features | Link Aggregation – Static link aggregation – 802.3ad LACP – Up to 8 aggregation groups and up to 8 ports per group Spanning Tree Protocol – 802.1d STP – 802.1w RSTP – 802.1s MSTP – STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect Loopback Detection – Port-based – VLAN based Flow Control – 802.3x Flow Control – HOL Blocking Prevention Mirroring – Port Mirroring – CPU Mirroring – One-to-One – Many-to-One – Tx/Rx/Both |
| L2 Multicast | Supports 511 (IPv4, IPv6) IGMP groups IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave – IGMP Snooping Querier – IGMP Authentication IGMP Authentication MVR MLD Snooping – MLD v1/v2 Snooping – Fast Leave – MLD Snooping Querier – Static Group Config – Limited IP Multicast Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | VLAN Group – Max 4K VLAN Groups 802.1q Tagged VLAN MAC VLAN: 12 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 GVRP VLAN VPN (QinQ) – Port-Based QinQ – Selective QinQ Voice VLAN |
| Access Control List | Time-based ACL MAC ACL – Source MAC – Destination MAC – VLAN ID – User Priority – Ether Type IP ACL – Source IP – Destination IP – Fragment – IP Protocol – TCP Flag – TCP/UDP Port – DSCP/IP TOS – User Priority Combined ACL Packet Content ACL IPv6 ACL Policy – Mirroring – Redirect – Rate Limit – QoS Remark ACL apply to Port/VLAN |
| Security | IP-MAC-Port Binding – DHCP Snooping – ARP Inspection – IPv4 Source Guard IPv6-MAC-Port Binding – DHCPv6 Snooping – ND Detection – IPv6 Source Guard DoS Defend Static/Dynamic Port Security – Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control – kbps/ratio/pps control mode IP/Port/MAC based access control 802.1X – Port based authentication – Mac based authentication – VLAN Assignment – MAB – Guest VLAN – Support Radius authentication and accountability AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 |
| IPv6 | IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications – DHCPv6 Client – Ping6 – Tracert6 – Telnet (v6) – IPv6 SNMP – IPv6 SSH – IPv6 SSL – Http/Https – IPv6 TFTP |
| L3 Features | 16 IPv4/IPv6 Interfaces Static Routing – 48 static routes Static ARP 316 ARP Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay DHCP L2 Relay |
| Management | Web-based GUI Command Line Interface (CLI) through console port, telnet SNMPv1/v2c/v3 – Trap/Inform – RMON (1, 2, 3, 9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log |
| Advanced Features | Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ZTP (Zero-Touch Provisioning) |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG3428 Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet |
| Environment | Operating Temperature: 0-45 °C (32-113 °F) Storage Temperature: -40-70 °C (-40-158 °F) Operating Humidity: 10-90% RH non-condensing Storage Humidity: 5-90% RH non-condensing |
| Brand | TP-Link |
