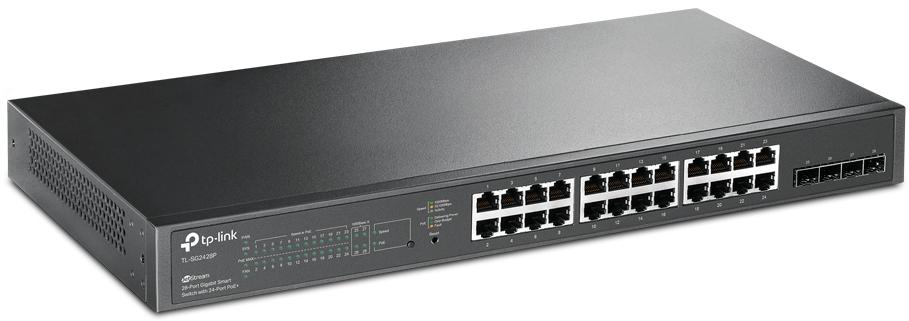

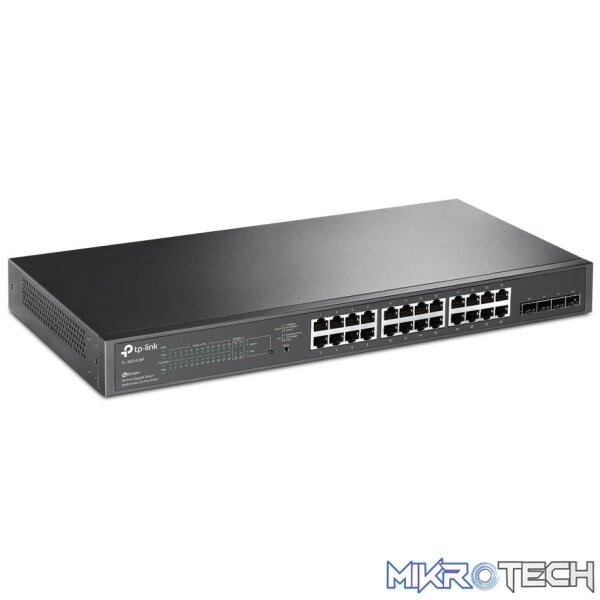

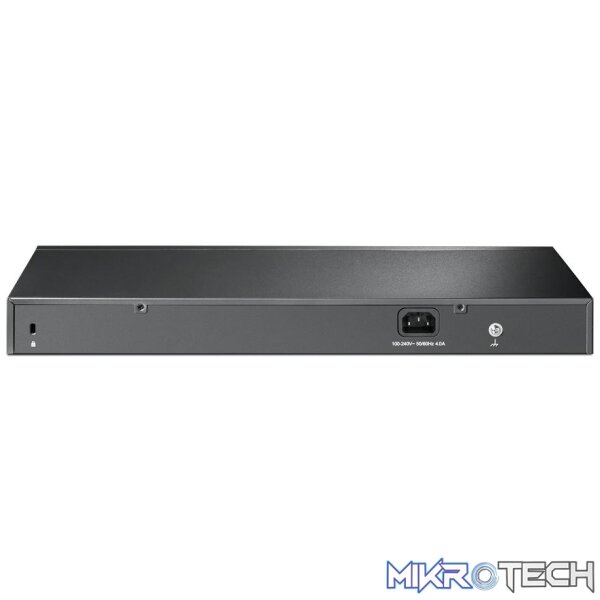

TP-Link TL-SG2428P 28 Port Gigabit Smart Switch with 24-Port PoE
R4,489.99 incl. VAT
In stock
Product Description
Overview:
TL-SG2428P – JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+
- 250 W PoE Budget : 24x 802.3at/af-compliant PoE+ ports with a total power supply of 250 W .
- Full Gigabit Ports : 24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN : Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management : Cloud access and Omada app for ultra convenience and easy management.
- Static Routing : Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies : IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications : L2/L3/L4 QoS and IGMP snooping.
- IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
Features:
Realize More Possibilities with Omada
JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+
- Centralized Cloud Management Omada SDN Platform Integration
- Advanced L2+ Features L2/L3/L4 QoS, ACL, Static Routing and More
- Abundant Security Strategies LAN Area Investment Protection
- PoE+ Output 24 PoE+ Ports with Total 250 W Power Budget
Software Defined Networking (SDN) with Cloud Access
Omadas Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Product Specifications
| Weight | 6.20 kg |
|---|---|
| Dimensions | 53.000000 × 44.000000 × 10.000000 cm |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | 24x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4x Gigabit SFP Slots |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | 2 |
| PoE+ Ports(RJ45) | Standard: 802.3at/af compliant PoE+ Ports: 24 Ports Power Supply: 250 W |
| Dimensions ( W x D x H ) | 17.3 x 8.7 x 1.73 in (440 x 220 x 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 32.1 W (110 V/ 60 Hz with no PD connected) 308.6 W (110 V/ 60 Hz with 250 W PD connected) |
| Max Heat Dissipation | 109.53 BTU/h (with no PD connected) 1052.94 BTU/h (with 250 W PD connected) |
| Bandwidth/Backplane | 56 Gbps |
| Packet Forwarding Rate | 41.7 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9KB |
| Quality of Service | Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting IPv6 QoS Voice VLAN |
| L2 and L2+ Features | Static Routing DHCP Relay DHCP Server IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loopback detection 802.3x Flow Control LLDP, LLDP-MED |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) MAC/Protocol-based VLAN |
| Access Control List | L2-L4 package filtering MAC ACL IP ACL Combined ACL IPv6 ACL |
| Security | AAA Port Security DHCP Snooping IP-MAC-Port Binding IPv6-MAC-Port Binding ARP Inspection 802.1x and Radius Authentication SSH v1/v2 SSL v3/TLSv1.2 Broadcast/Multicast/Unknown-unicast Storm Control Dos Defend |
| IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 |
| IPv6 Applications | DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features | Web-based GUI and CLI management SNMP v1/v2c/v3, compatible with public MIBs and TP-Link private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Dual Image EEE |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG2428P Power Cord Installation Guide Rackmount Kit Rubber Feet |
| System Requirements | Microsoft Windows XP, Vista or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux. |
| Environment | Operating Temperature: 0-50 °C (32-122 °F) Storage Temperature: -40-70 °C (-40-158 °F) Operating Humidity: 10-90% RH non-condensing Storage Humidity: 5-90% RH non-condensing |
| Brand | TP-Link |
