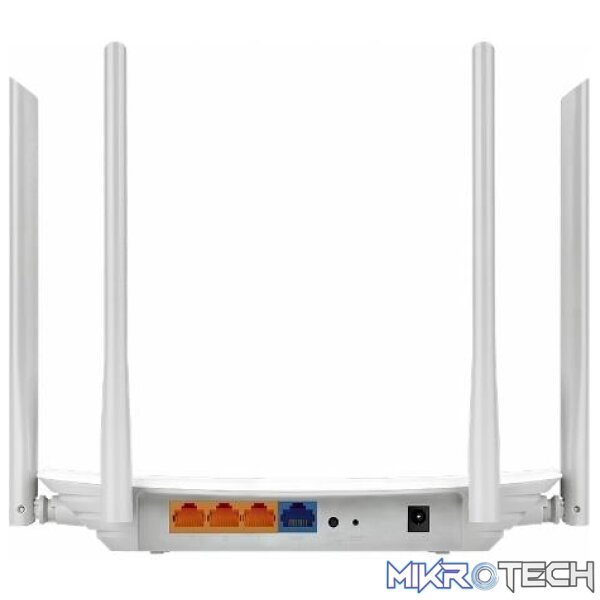

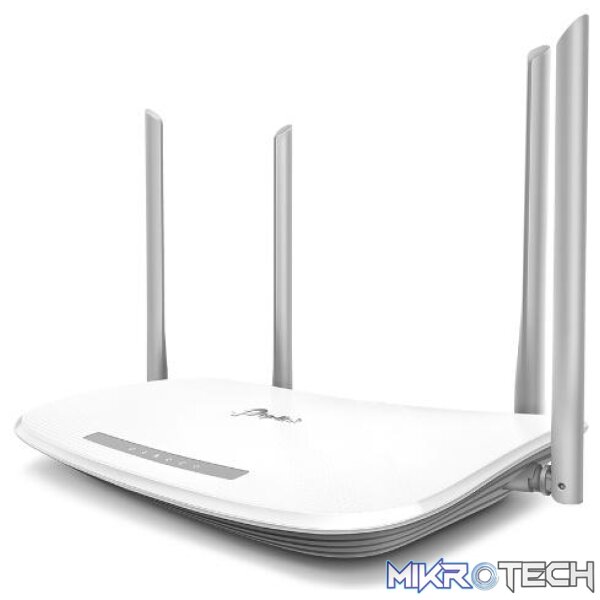

TP-Link EC220-G5 1200 Mbps ISP Dual Band Gigabit Wi-Fi Router
R429.99 incl. VAT
In stock
Overview:
AC1200 Wireless Dual Band Gigabit Router
EC220-G5
- Upgrade to 5th generation Wi-Fi, 300Mbps at 2.4GHz + 867Mbps at 5GHz dual band.
- Easy Remote Management, TR-069 protocol enables an operator to remotely configure and manage end-user devices
- IPv6: compatible with IPv6 (Internet Protocol version 6
- IPTV: supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Full Gigabit Ports, Support 1000Mbps WAN port and four 1000Mbps LAN port, for ultrafast data transfer speeds
Features:
AC1200
Wireless Dual Band Gigabit Router
High-Speed Dual Band Wi-Fi for Better Connection
Blistering wireless speeds of up to 1.2Gbps at 2.4GHz & 5GHz band ensure smooth online gaming and HD streaming and rapid downloads.
Innovative Antenna Design for Maximum Coverage
Four well-ordered antennas make all of your connections more efficient and stable. Advanced antenna technology increases the receiving sensitivity to enlarge Wi-Fi coverage for your home.
Easy Parental Control
Supervise children and staff with responsible access, controlled by parents or administrators. Use key words to easily set up a black list and limit the level of web access.
Support Multi-SSID
Multiple SSID helps ISPs easily create separate WLAN networks for various service deployments, such as IPTV, Internet, etc.
Easy Setup and Management with the Tether APP
The free Tether app is available for both Android and iOS devices, making it easy to set up the EC220-G5 and manage your network settings.
Easy Remote Management for ISPs
Support TR-069 protocols, enabling ISPs to remotely configure and manage end-user devices. Support TR-098.
TP-Links Agile Solution: Greatly Reduce ISPs OPEX
Support Agile Config, enabling ISPs to customize default configurations according to their requirements, and keep the settings after users reset devices.
Support Agile ACS, enabling ISP to realize remote management of deployed devices and reduce on-site maintenance cost.
| Weight | 0.70 kg |
|---|---|
| Dimensions | 31.000000 × 29.000000 × 6.000000 cm |
| External Power Supply | 12V/1.0A |
| Dimensions ( W x D x H ) | 9.1 x 5.7 x 1.5 in (230.0 x 144.0 x 37.0mm) |
| Interface | 3 10/100/1000Mbps LAN Ports & 1 10/100/1000Mbps WAN port |
| Antenna | 4 External Antennas |
| Wireless Standards | IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 300Mbps at 2.4GHz, 867Mbps at 5GHz |
| Transmit Power | CE: 20dBm(2.4GHz), 23dBm(5GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP(Multi-EWAN) |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Quality of Service | WMM, Bandwidth Control |
| Port Forwarding | Vritual Server, Port Triggering, DMZ, UPnP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall, IP Address Filter, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Management | Access Control, Local Management, Remote Management, TR-069, TR-098, TR-111 |
| Package Contents | AC1200 Wireless Dual Band Gigabit Router EC220-G5 Power Supply Unit RJ45 Ethernet Cable Quick Installation Guide |
| Certifications | CE, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher. |
| Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Brand | TP-Link |
