Features:
- 1317Mbps wireless data rate for uninterrupted wireless connection
- Free Controller Software for easy centralized management of hundreds of EAPs
- Support Power over Ethernet(802.3af) and passive PoE(Adapter Included) for convenient and affordable installation
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- Simple mounting design makes easy to install on any wall or ceiling surface
- Rate limit on per SSID to restrict the bandwidth of each client
- Load balance ensures large numbers of users have smooth network experiences in high density business networks
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
- Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
- Access Control restricts or only allows the client to access the specified network segment
- Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
- Multi-SSID divides multiple wireless network for different users
- Compatible with 802.11 a/b/g/n/ac products
- Multiple operating modes including managed AP and standalone AP satisfy different application conditions
- Qos function gives video and voice streams higher priority to promote smoother performance for video and voice services
Superior Wi-Fi Speeds with 2×2 11ac MIMO technology
The latest generation of 802.11ac Wi-Fi combined with advanced 2×2 MIMO technology ensures superior Wi-Fi speeds and coverage over 2.4GHz and 5GHz wireless bands.
Easy for Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Auranet Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. ThereÂ’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.
Efficient Guest Authentication
Captive portal provides one convenient method of authentication for Wi-Fi guests by requiring users to perform certain actions before network access is allowed. It can Control connections to your network with a voucher system and customized authentication page that can provide a branded experience, advertise to customers, or offer coupons.
Flexible Deployment
The EAP’s low profile design and easy mount chassis make it easy to install on any wall or ceiling surface and allow it to blend in with most interior decorating styles. EAP devices also support Power over Ethernet (PoE), making deployment effortless and flexible.
Unified Wi-Fi for Multi-user Business Environment
The Auranet business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. ItÂ’s the perfect fit for motels, salons, chain-stores, schools, and restaurants.
| Weight | 0.92 kg |
|---|---|
| Dimensions | 34.000000 × 23.000000 × 7.000000 cm |
| Interface | Gigabit Ethernet (RJ-45) Port *1 (Support IEEE802.3af PoE and Passive PoE *) |
| Button | Reset |
| Power Supply | 802.3af PoE and passive PoE |
| Power Consumption | EU: 10.5 W US: 12.6W |
| Dimensions | 8.1 x 7.1 x 1.5 in. (205.5 x 181.5 x 37.1 mm) |
| Antenna Type | 3 Internal Omni 2.4GHz: 4dBi 5GHz: 5dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Physical Security Lock | Yes |
| Hardware Watch Dog | Yes |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz:Up to 867Mbps 2.4GHz:Up to 450Mbps |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Band Steering Load Balance MU-MIMO Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless MAC Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmission Power | FCC: 27dBm(2.4GHz & 5GHz) |
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Certification | FCC, RoHS |

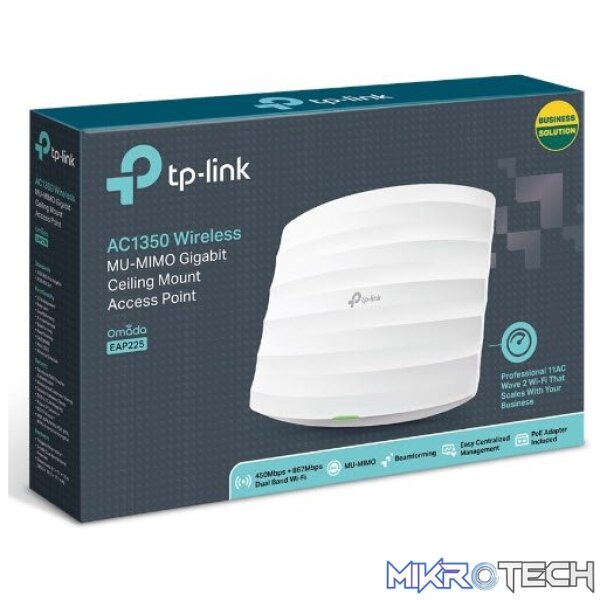

| Package Contents | AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 Passive PoE Adapter Power Cord Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Environment | Operating Temperature: 0°C~60°C (32°F~144°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Brand | TP-Link |
