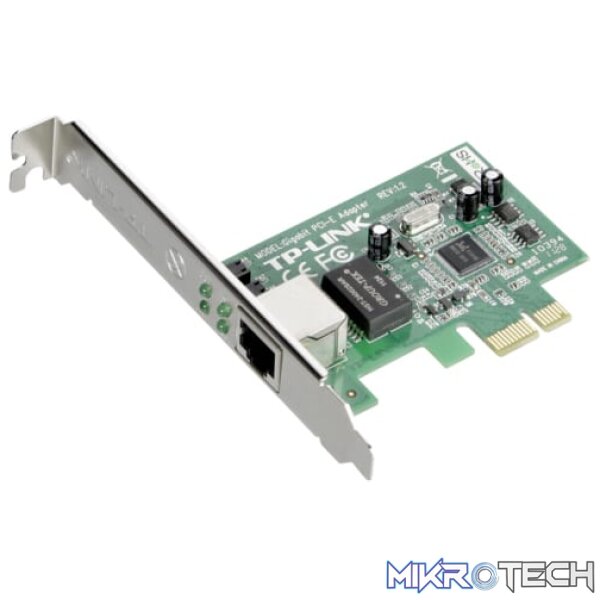

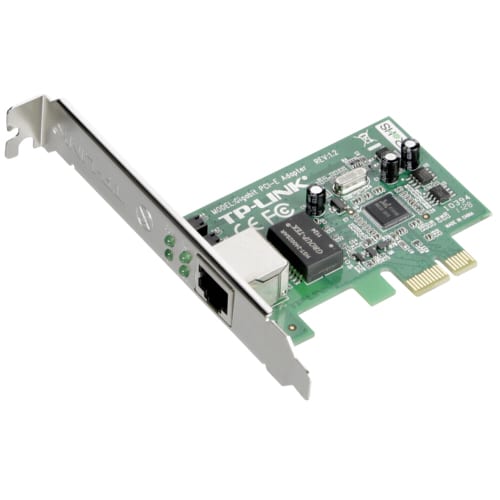

PCI Express Network Adapter
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP |
Interface | 32-bit PCI Express 1 10/100/1000Mbps RJ45 port |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m) |
Data Rates | 10/100/1000Mbps for Half-Duplex mode 20/200/2000Mbps for Full-Duplex mode |
LED Indicator | 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act |
Flow Control | IEEE 802.3x Flow Control (Full-Duplex) |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | Gigabit PCI Express Network Adapter TG-3468 Resource CD Quick Installation Guide |
System Requirements | Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits) |
Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Weight | 0.5 kg |
---|---|
Dimensions | 15 x 25 x 10 cm |
