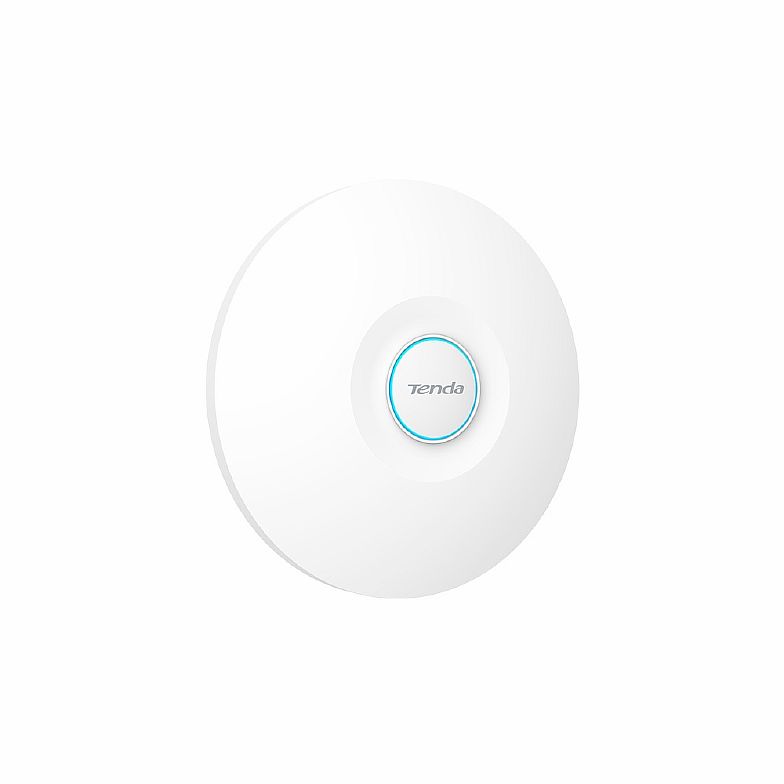

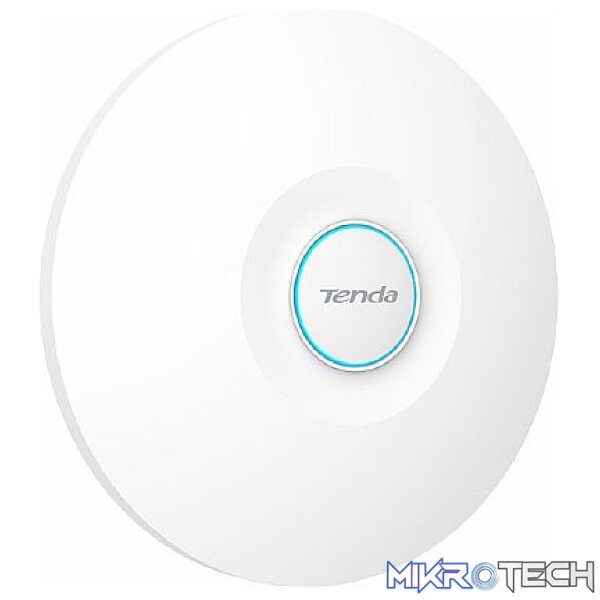

TENDA CEILING AP, AX3000 WIFI 6 LONG RAN

Description

i29 is designed based on the new Wi-Fi 6 technology. It realizes a bandwidth of 160 MHz and a 5 GHz rate as high as 2.4 Gbps, a rate three times higher than that of ordinary Wi-Fi 5 APs and two times that of ordinary Wi-Fi 6 APs. The application of such new technologies as OFDMA, spatial multiplexing, and MU-MIMO drives the network capacity of a single i29 to 4 times higher. The high-power RF design helps maintain the quality of Wi-Fi signal even over a long distance, so that wireless clients and AP can work under the high-performance Wi-Fi 6 mode. i29 is a perfect choice for such locations as businesses and hotels to deploy high-performance Wi-Fi networks. Hardware
Dimension
F250.6*55 mm
Ethernet Interface
One 10/100/1000 Mbps Ethernet Port
One 10/100/1000 Mbps Ethernet Port (PoE)
Antenna
4*4 dBi
Button
1*Reset
LED Indicator
RGB
Maximum Power Consumption
15.74 W
Power supply standard
IEEE 802.3at PoE
Wireless
Frequency Band
2.4 GHz, 5 GHz
Data Rate
2.4 GHz data rate:1-574 Mbps
5 GHz data rate:6-2402 Mbps
Wireless Standard
IEEE 802.11a/b/g/n/ac/ax
Channel width
20 MHz/40 MHz/80 MHz/160 MHz
Max Transmit Power
2.4 GHz Max. output power:29+/-1.5 dBm
5 GHz Max. output power:29+/-1.5 dBm
Sensitivity
802.11b RX sensitivity:-97 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity:-75 dBm
5 GHz 802.11a RX sensitivity:-95 dBm
5 GHz 802.11n (MCS7) RX sensitivity:-75 dBm
Software
MU-MIMO
2X2 MU-MIMO
Operating Mode
AP
Hide SSID
Supported
Max. No. of SSID
2.4 GHz: 7
5 GHz: 4
Max. connected clients
254
WEP
Supported
802.11 k/v
Supported
Fast roaming
Supported
TWT
Supported
Beamforming
Supported
OFDMA
Supported
WPA-PSK
AES/TKIP
WPA2-PSK
AES/TKIP
WPA3-ASE
AES
WPA
Supported
WPA2
Supported
Access control
MAC address-based
Adjustable power transmit
Supported
AP isolation
Supported
Frequency analysis
Supported
Connected clients control
Supported
RSSI Threshold
Supported
WMM
–
VLAN tagging for SSID
Supported
LED control
Supported
Diagnostics
Ping, Traceroute
Schedule Reboot
Supported
Reboot at specified interval
Supported
Centralized Management
Supported
System Logs
Supported
Firmware upgrade
Supported
Reboot
Supported
Reset Button
Backup configuration
Supported
Restore configuration
Supported
Others
Default login IP
192.168.0.254
Default Login Username
admin
Default Login Password
admin
Operation Temperature
-10? – 45?
Operating humidity
(10% – 90%) RH, non-condensing
Storage temperature
-30? – 70?
Storage humidity
(10% – 90%) RH, non-condensing
