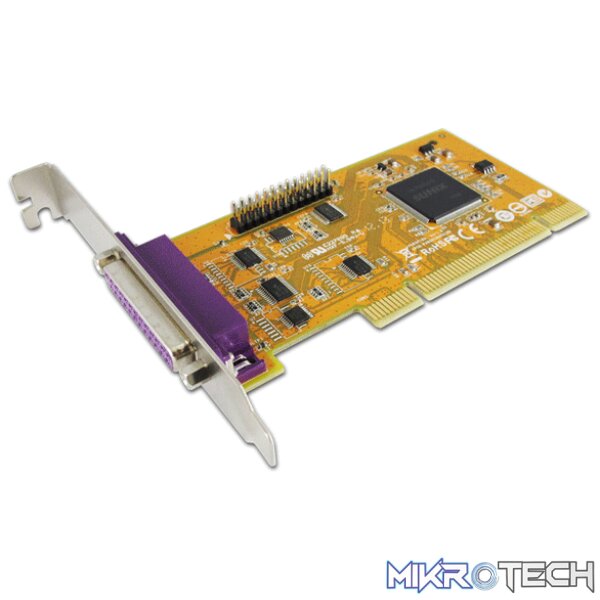

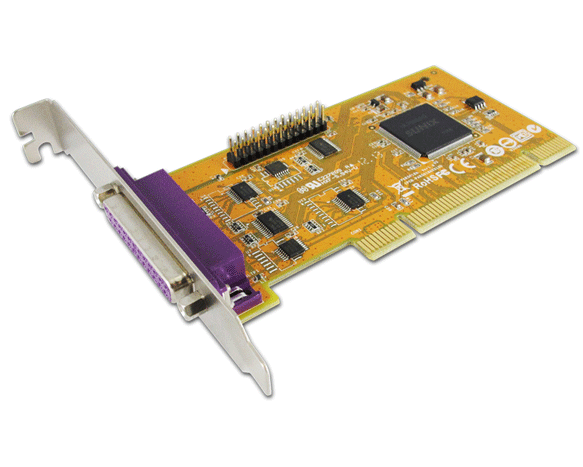

Sunix par5018a 2-port IEEE1284 Parallel PCI Board
R639.99 incl. VAT
Only 1 left in stock
Overview:
SUNIX PAR5018A PCI Parallel card enables users to add or expand two additional ECP/EPP/SPP/BPP communication LPT ports on their PC-based system for connecting their parallel devices. SUNIX GoldenIO card series is designed with SUNIX high performance and realizable parallel connectivity controller, UL7502AQ and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation applications.
Features:
- High reliability SUNIX UL7502AQ Parallel controller on-board.
- Expands two IEEE1284 Parallel port on system.
- Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
- Support IEEE 1284-1994 parallel port standard
- ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
- SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).
- Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
- Plug-n-Play, I/O address and IRQ assigned by system.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
| Controller | SUNIX UL7502AQ |
|---|---|
| BUS | Universal PCI 64 / 32bit 3.3V / 5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| IRQ & IO | Assigned by System |
| Interface | IEEE1284 |
| No. of Port | 2-port |
| FIFO | 16byte Hardware |
| Mode | SPP / ECP / EPP / BPP |
| Speed | Maximum 1.8MBps |
| PCB Connector | DB25 Female & 13 x 2 Pin Header |
| Windows Client | XP / Vista / 7 / 8 / 8.1 (X86 / X64 |
| Windows Server | 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86 / X64) |
| Windows Embedded | Windows CE 4.2 / 5.0 / 6.0 XP Embedded / POSReady 2009 / POSReady 7 / Embedded System |
| Linux | Linux 2.4.x / 2.6.x / 3.x |
| DOS | DOS |
| Hardware | CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS / NZS, RoHS |
| Software | Microsoft WHQL Windows Windows Client: XP / Vista / 7 / 8 / 8.1 (X86 / X64) Windows Server: 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86 / X64) |
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| PCB Dimension | 120 x 61 mm |
| Bracket | Standard 121mm |
| Bracket Space | 2 |
