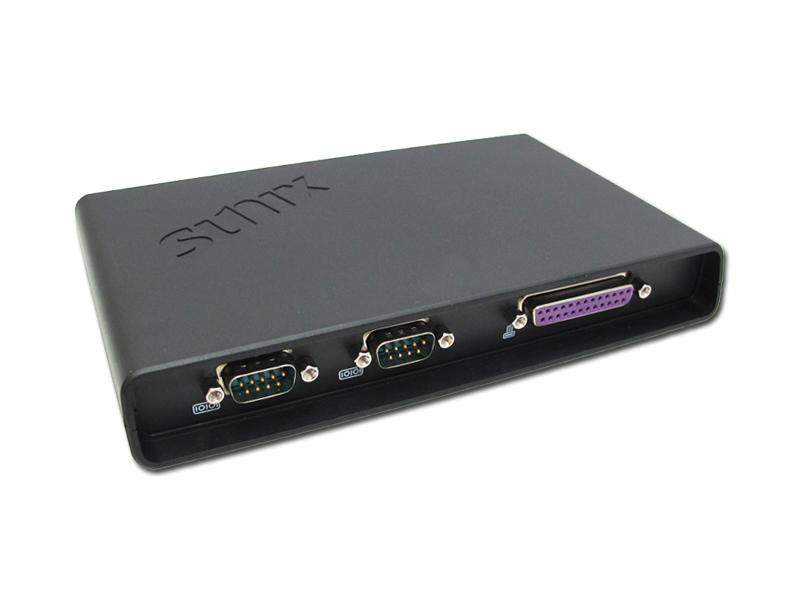

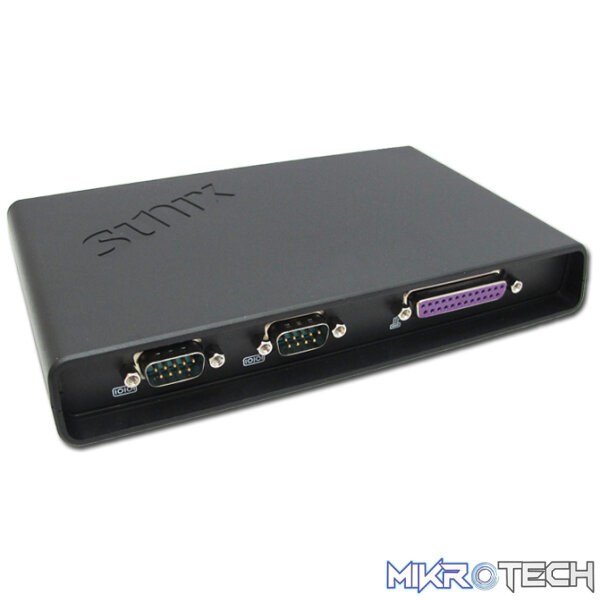

Sunix DPKM21H00 DevicePort Dock Mode Ethernet enabled RS-232 & Printer Port Replicator
R1,039.99 incl. VAT
In stock
Overview:
SUNIX DevicePort® is the ideal choice to enable your current Legacy I/O devices networking. DPKM21H00 allows users to expand both RS-232 and printer ports over Ethernet connection, and it works as a PCIe add-on card operation on any windows based tiny desktop, laptop, or All-in-one system. With SUNIX DPL2000Q High-Performance Ethernet-UART/Printer controller and exclusive I/O redirection technology, DevicePort® creates physical COM and LPT ports that support real time data communication and Ethernet-COM/LPT port hot-plug capability; user can expand legacy port easily without complex software configuration that improves deployment efficiency to achieve greater reliability in commercial and industrial automation applications.
Features:
- Expands RS-232 COM and Printer LPT ports over Ethernet networking.
- Works as a PCIe add-on card operating experience with Ethernet Hot-Plug capability.
- DevicePort® Dock mode supports secured connection between PC host and DevicePort®.(*Note 1)
- Built-in SUNIX DevicePort® DPL2000Q High-Performance Ethernet-UART/Printer controller.
- SUNIX DevicePort® proprietary Ethernet I/O Redirection Technology. (*Note 2)
- Port auto-mapping with real time data transmit and receive communication.
- Physical COM and LPT port accessed via device manager.
- Up to 256 COM and 3 LPT ports working on windows system simultaneously.
- Accesses tradition COM and LPT port by using existing software and AP .(*Note 3)
- Low power consumption design for Green Environment.
- 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
- Certified by CE, FCC, VCCI, C-Tick, BSMI, RoHS, and Microsoft WHQL approval.
| Controller | SUNIX DPL2000Q |
|---|---|
| BUS | Ethernet |
| Signal | DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI |
| Protection | ±15KV ESD IEC6000-4-2 Air Discharge ±8KV ESD IEC61000-4-2 Contact Discharge ±4KV ESD IEC61000-4-2 Level2 Line-to-Line |
| Baud rate | 50bps ~115.2Kbps |
| Stop bit | 1, 1.5, 2 |
| Parity | even, odd, none, mark, space |
| Flow Control | Xon / Xoff (software) |
| Interface | IEEE1284 Printer Support(*Note 3) |
| No. of Port | 1-port |
| FIFO | 1Kbyte Hardware / per port |
| PCB Connector | DB25 Female |
| Number of Ports | 2-port (*Note 1) Upstream to Ethernet Switch Downstream to PC Host |
| Speed | 10 / 100 Mbps, auto MDI / MDIX |
| Magnetic Isolation Protection | 1.0K Built-in |
| Input Voltage | 5 to 12VDC |
| Power Consumption | 2.5W @ 5VDC |
| Connector | DC-Jack |
| Windows Client | XP / 7 / 8 / 8.1 (X86 / X64) |
| Windows Server | 2003 / 2008 / 2012R2 (X64) |
| Hardware | EUR: CE EN55022 Class B, EN55024 US: FCC Part 15 Class B TAIWAN: BSMI: CNS13438 AS / NZS: C-Tick: CISPR22 AS / NZS JAPAN: VCCI |
| Software | Microsoft WHQL Windows Microsoft Client: XP / 7 / 8 / 8.1 (X86 / X64) Microsoft Server: 2003 / 2008 / 2012R2 (X64) |
| Operation Temperature | 0 to 45°C (32 to 113°F) |
| Operation Humidity | 5 to 95% RH (non-condensing) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Housing | ABS, PC, Metal |
| Weight | 150g |
| Dimensions | 190×119.58×27(mm), 7.5×4.8×1.0 (inch) |
