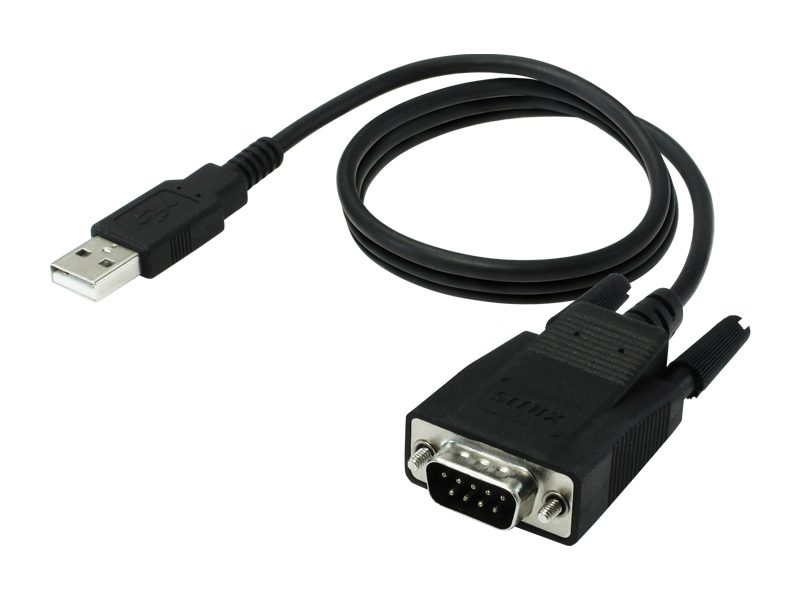

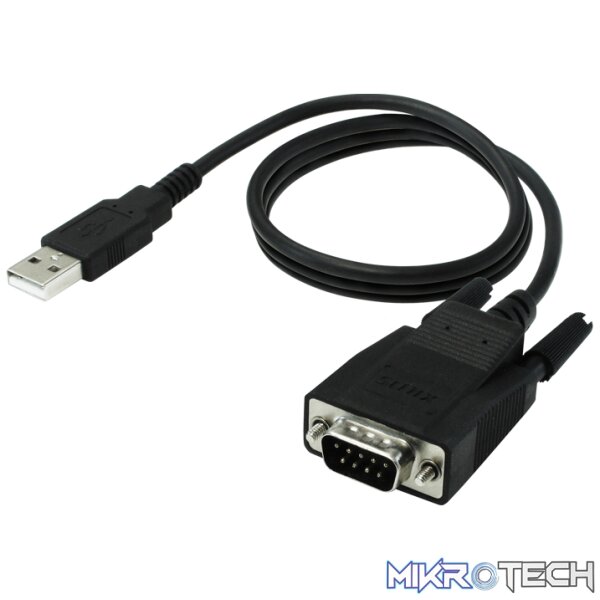

Sunix UTS1009b USB to 1x Serial Port (9pin) Adapter
R219.99 incl. VAT
In stock
Overview:
No longer would the usage of a serial or parallel device be restricted by the availability of the connectable ports on the desktop, laptop or work station system. With SUNIX ComHub USB Adapter, users now have the ability to convert the connection of their serial and parallel peripherals into USB compatible. The adapter is compatible with both USB 2.0 and 1.1 specifications. The USB Full Speed connection offers data transfer rate up to 12Mbps. SUNIX ComHub provides serial ports with transfer speed up to 115.2Kbps.
SUNIX ComHub, USB to I/O Adapter utilized the high quality Prolific chipset, not only is the ComHub has passed the WHQL certification, it is also the most compatible and the most reliable. ComHub series come with the choice of 1/2/4 ports in RS-232 or Printer (LPT) for connection with devices such as barcode scanner, POS device, PDA, printer, and other mobile devices. SUNIX offers the most complete line of USB to I/O Adapter for all your connection needs.
Features:
- Expands 1 RS-232 ports on system via USB connection.
- Supports Universal Serial Bus Plug-n-Play and Hot-Swapping feature.
- No IRQ, DMA, I/O address resource required.
- Supports USB1.1 full speed 12Mbps, and it is USB2.0 compatible.
- Each serial port provides transmission rate up to 115.2Kbps.
- Built-in ±15KV ESD protection for all serial signals.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WQHL approval.
- Support Microsoft Windows, Linux, Mac and DOS.
| Product Description | 1 ports USB to RS-232 Serial Adapter |
|---|---|
| Interface | RS-232 |
| Controller | Prolific 2303Hx 16C550 UART Compatible |
| Bus Interface | Universal Serial Bus (USB) 2.0 / 1.1 |
| No. of Port | 1-port |
| IRQ & IO | Assigned by System |
| FIFO | 16 byte (Hardware) |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
| Baud rate | 50 bps to 115.2 Kbps |
| Data bit | 5, 6, 7, 8 |
| Stop bit | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS (Hardware), XON/XOFF(Software) |
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) |
| Board connector | DB9 Male |
| Microsoft | 98/ME/2000/XP/2003/Vista/2008/7 (32/64 bit)/CE5.0/XP Embedded |
| Linux | Linux 2.4.x/2.6.x |
| MAC | MAC 10.1, 10.4, 10.5 (Leopard) |
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, RoHS |
| Operating Temperature | 0 to 60 °C ( 32 to 140 °F ) |
| Operating Humidity | 5% to 95% RH |
| Storage Temperature | -20 to 85 °C ( -4 to 185 °F ) |
| Input | USB Bus-power |
| Consumption | 0.8W = 5V x 150mA |
| Dimension | 75 (W) x 40 (D) x 22 (H) mm |
| Cable Length | 1500mm (5ft) |
| Case | ABS |
| Weight | 114 ± 5 g |
