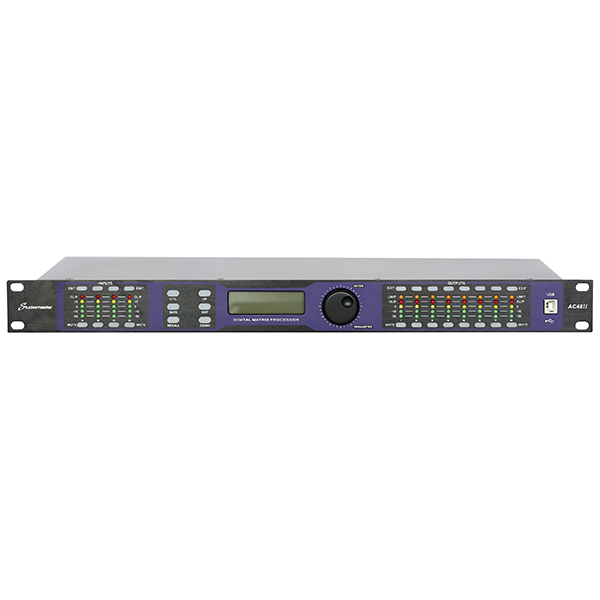

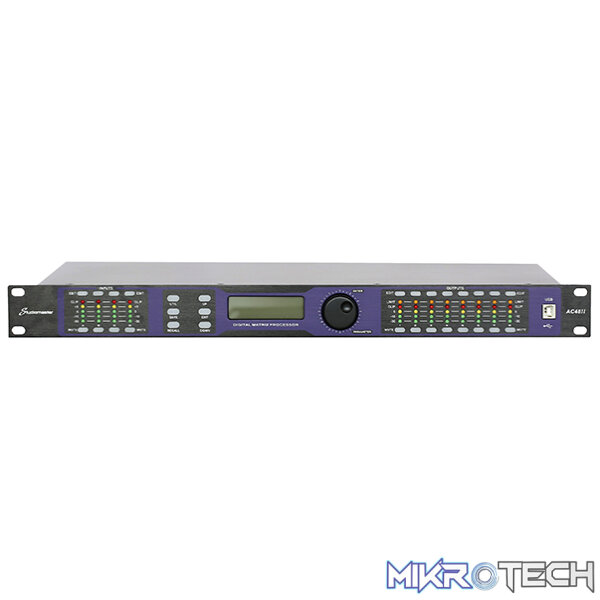

Studiomaster – Ac48Ii 12 4 In 8 Out Digital Processor

FEATURES:

• 48kHz sampling rate, 40-bit DSP processor, 24-bit AD/DA convertor
• Input processing includes Gain, Mute, Link, High-cut, Low -cut, Noise gate, 5PEQ, Phase, Delay
• Output processing includes Crossover, 6PEQ, Gain, Mute, Compressor/Limiter, Phase, Delay, Link
• Every input and output can do matrix assign freely
• Adjustable PEQ frequency, Gain and Bandwidth, the gain step is 0.1dB, we can choose style: Peak, H-shelf, L-shelf, LP-6dB, LP-12dB, HP-6dB, HP-12dB
• The style of all High-cut, Low-cut filter and Distributor Unit: Butterworth, Linkwitz- Riley, Bessel, Slope is-6dB/oct ~-48dB/oct
• Adjustable compressormiter threshold, soft knee, ratio, attached time and release time. Noise gate’s threshold, hold time, attached time and release time can be adjustment
• The parameters of input and output adjusting are linkable, revisable input and output channels
• All delay module’s delay time can reach over 680ms the step is: 0.021ms
• Parameter setting of each channel can copy freely, build-in signal generator
• Input and Output on the front panel are equipped with 5-segment high precision level indicators, key indicators, security protection function
• 30 user preset, 1factory preset, device parameter and single preset file can save in computer; it also can download from computer and save in the device
• The device itself can store multiple preset parameters and recall freely. With PC software, one-key online made the operation more
  convenient
• USB and RS232 controlling ports, Online remote control and 255 units linkable through Rs485.

SPECIFICATIONS:

• Frequency Response:
  20Hz~20kHz, -0.3dBu, S/N Ratio: >110 dBu, Distortion(THD): <0. 01at1kHz(0dBu), Cross-talk: <100dB below full scale
•

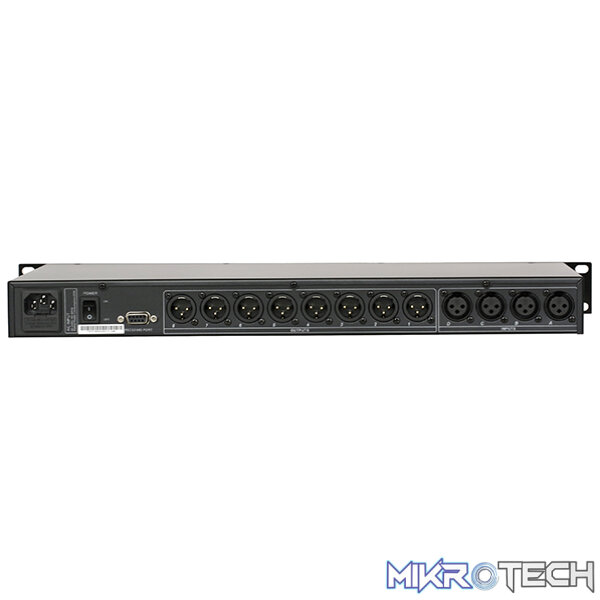

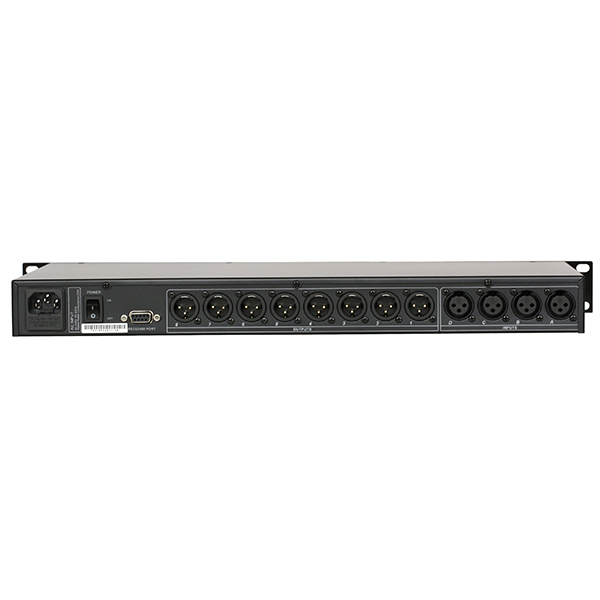

  Input Section:
  Type: Balanced XLR, Max. Input Level: +15dBu, Impedance: 1M/?Stereo; 500k?/MONO
•
  Output Section:
  Type: Balanced XLR, Max. Output Level (bypass): +15dBu, Impedance: <500?
•
  Digital Procssing:
  24-bit sigma – delta converters, 48kHz Sampling Rates
•
  Display:
  20x2LCD Display For Parameters Setting And Function Select
•
  Power Supply:
  AC~95V-264V FUSE 250VAC/2A FAST
•
  Dimension(LxWxH):
  82x205x44CM
•
  Weight:
  2.88kg
