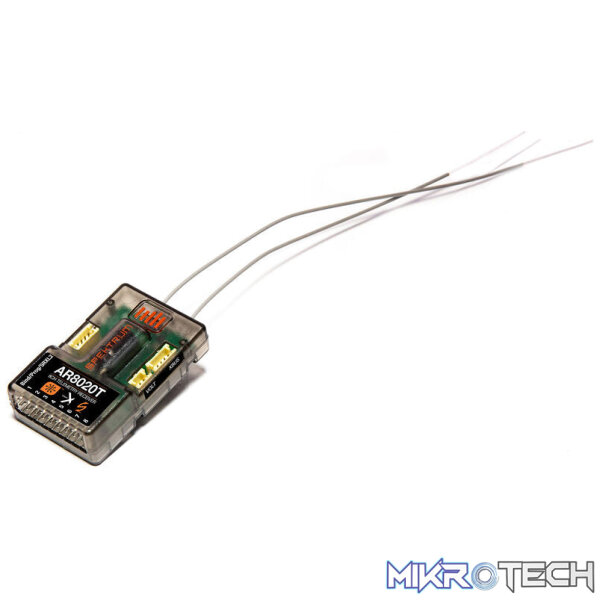

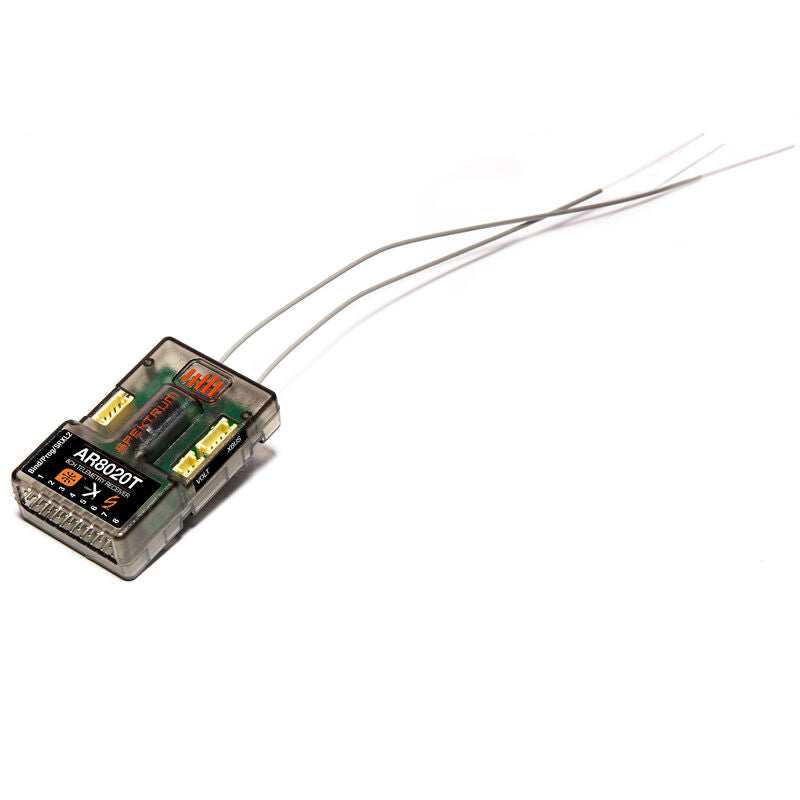

Spektrum AR8020T DSMX 8-Channel Telemetry Receiver

The Spektrum AR8020T is a full-range, compact 8-channel DSMX/DSM2 telemetry receiver with an integrated barometer, Smart ESC compatibility, and dual external antennas—ideal for everything from park flyers to large-scale aircraft.

Features

• Full-range telemetry with built-in barometer for altitude and variometer data
• Compatible with all Spektrum DSMX and DSM2 aircraft transmitters
• Smart ESC compatible for one-wire telemetry (voltage, current, temperature, RPM)
• Dual external antennas (155 mm and 186 mm) for optimal RF coverage
• SRXL2 port supports optional remote receiver for redundant RF paths
• Forward Programming for configuring failsafe and other settings via transmitter
• Bind button for easy plug-free binding
• Compact end-pin design for efficient installation
• Failsafe modes: SmartSafe + Hold Last, plus preset options via forward programming

What’s Included

• AR8020T DSMX 8-Channel Telemetry Receiver
• Product manual

Needed to Complete

• Spektrum telemetry-capable transmitter

Specifications

• Application: Aircraft
• Band: 2.4 GHz
• Channels: 8
• Modulation: DSMX / DSM2
• Input Voltage: 3.5–9 V
• Range: Full
• Resolution: 2048
• Telemetry: Integrated (barometer/vario) – full range
• Remote Receiver Port: SRXL2
• Antenna Lengths: 155 mm and 186 mm
• Dimensions (L × W × H): 49 × 30 × 15 mm
• Weight: 16 g
• Bind Method: Button
• Failsafe Modes: SmartSafe + Hold Last, preset via forward programming
• Smart Throttle Compatible
