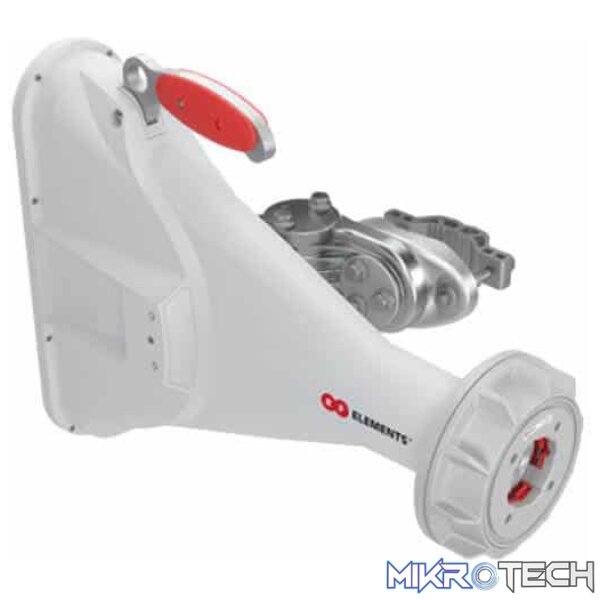

RF elements 60 degree Asymetrical Horn Antenna
R7,599.99 incl. VAT
Only 10 left in stock
Product Description
Overview:
The Asymmetrical Horn TP Antenna combines the best of both worlds – high gain of a traditional sector antenna and zero side lobes of a horn. Its radiation pattern is wide in azimuthal and narrow in elevation plane, greatly improving coverage planning options.
Product Specifications
| Weight | 6.44 kg |
|---|---|
| Dimensions | 52.000000 × 37.000000 × 14.000000 cm |
| Antenna Connection | TwistPort – Quick Locking Waveguide Port |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel |
| Enviromental | IP55 |
| Pole Mounting Diameter | 22-80 mm mm |
| Temperature | -35°C to +55°C (-31°F to +131°F) |
| Wind Survival | 160 km/hour |
| Mechanical Tilt | ± 25° |
| Weight | 6.5 Kg / 14.3 lbs – single unit 7.0 Kg / 15.4 lbs – single unit incl. package |
| Single Unit | Retail Box: 41.2 x 40.0 x 40.0 cm |
| Frequency Range | 5180 – 6000 MHz |
| Gain | 17 dBi |
| Azimuth Beam Width -3 dB | H 45° / V 42° |
| Elevation Beam Width -3 dB | H 17° / V 16° |
| Azimuth Beam Width -6 dB | H 60° / V 60° |
| Elevation Beam Width -6 dB | H 25° / V 25° |
| Front-to-Back Ratio | 27 dB |
