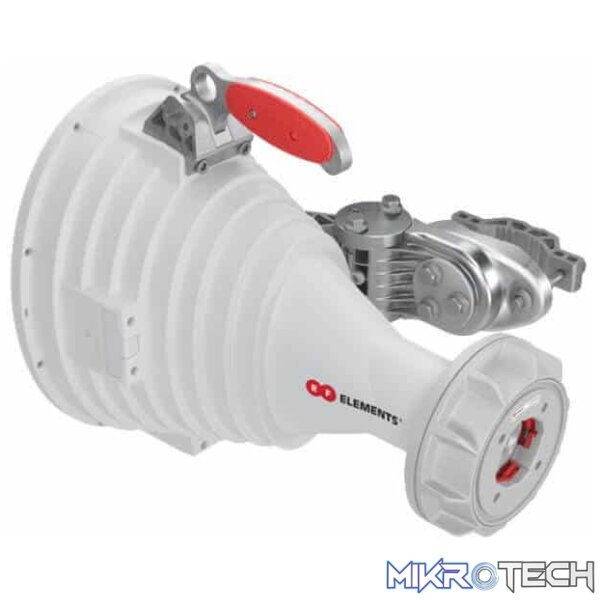

RF Elements 30 degree asymetrical horn antenna
R7,669.99 incl. VAT
In stock
Product Description
RF Elements 30 degree asymetrical horn antenna, Asymmetrical Horn 5180 – 6400 MHz, Gain 20.5 dBi, TwistPort Connector, HG3-TP-A30
Product Specifications
| Weight | 5.62 kg |
|---|---|
| Dimensions | 48.000000 × 33.000000 × 23.000000 cm |
| Antenna Connection | TwistPort – Quick Locking Waveguide Port |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel |
| Enviromental | IP55 |
| Pole Mounting Diameter | 22-80 mm |
| Temperature | -35°C to +55°C (-31°F to +131°F) |
| Wind Survival | 160 km/hour |
| Mechanical Tilt | ± 25° |
| Weight | 6.5 Kg / 14.3 lbs – single unit* 7.0 Kg / 15.4 lbs – single unit incl. package |
| Single Unit | Retail Box: 41.2 x 40.0 x 40.0 cm |
| Frequency Range | 5180 – 6000 MHz |
| Gain | 20.5 dBi |
| Azimuth Beam Width -3 dB | H 21° / V 21° |
| Elevation Beam Width -3 dB | H 15° / V 15° |
| Azimuth Beam Width -6 dB | H 30° / V 30° |
| Elevation Beam Width -6 dB | H 20° / V 20° |
| Front-to-Back Ratio | 35 dB |
