Product Description

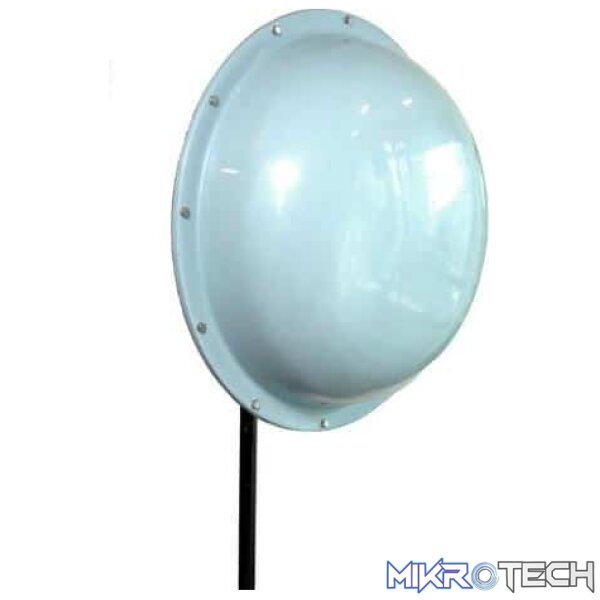

Radwin 5GHz 32dBi dish antenna, Dual polarization-directional, Frequency range 4.9 – 5.8756 GHz, 2x N-type female connectos, 900mm diameter, 4 degree 3dB beamwidth azimuth, 4 degree 3dB beamwidth elevation, RW-9732-4958
Product Specifications
| Weight | 20.00 kg |
|---|---|
| Dimensions | 110.000000 × 105.000000 × 40.000000 cm |
| Frequency range | 4.9 – 5.875 GHz |
| Gain | 32 dBi |
| VSWR | 1.8 : 1 (max) |
| 3db Beamwidth Azimuth | 4° |
| 3db Beamwidth Elevation | 4° |
| Polarization | Dual Linear (Vertical and Horizontal) |
| Side-lobes Level | -16 dB |
| Cross polarization | -13 dB |
| F/B Ratio | -40 dB (max) |
| Dimensions | Diameter = 900mm |
| Weight | 10.5 Kg |
| Temperature range | -40 Deg to +70 Deg |
| Wind speed | Survival 216 km/h, Operation 180 km/h |
